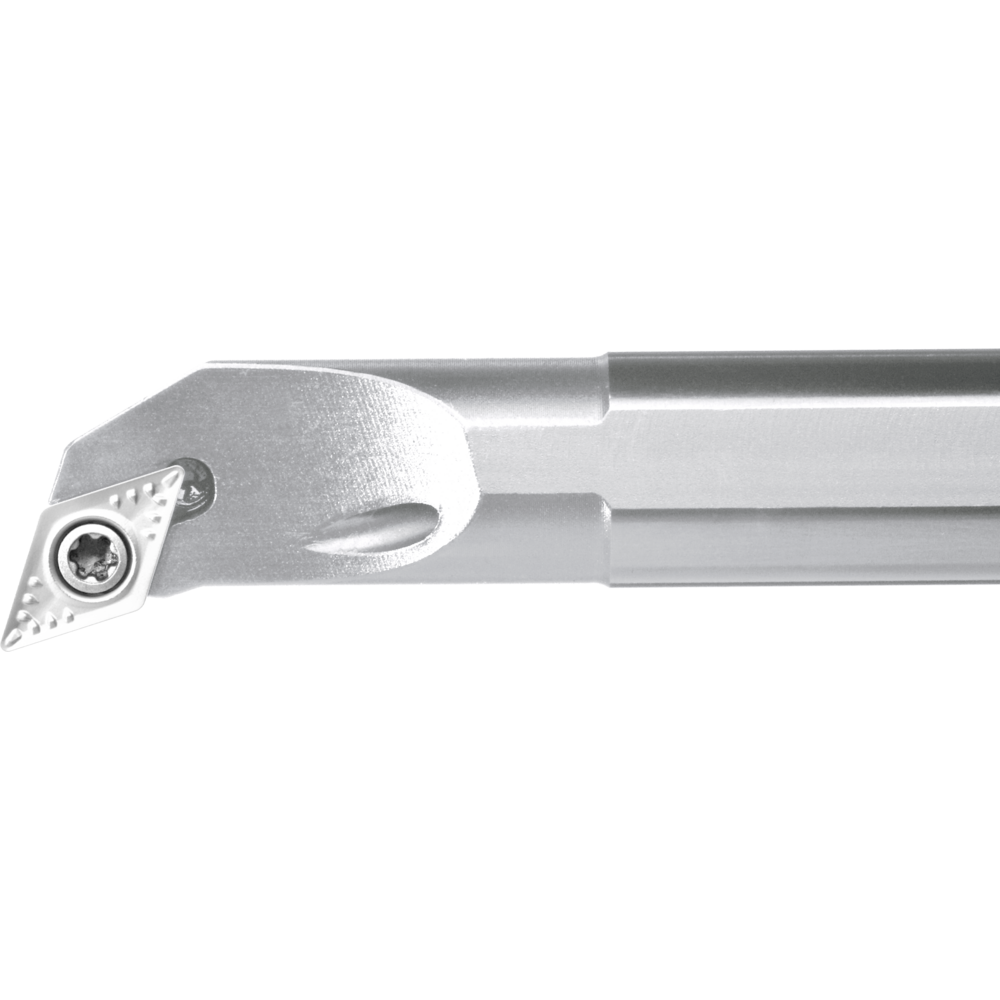

Boring bar A0810H SDQC-R-07 setting angle 107.5°, for DC.. 0702..

Boring bar A0810H SDQC-R-07 setting angle 107.5°, for DC.. 0702..
Boring bar A0810H SDQC-R-07 setting angle 107.5°, for DC.. 0702.. Boring bar A0810H SDQC-R-07 setting angle 107.5°, for DC.. 0702..
Price:
121,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Boring bar, positive SDQC
  • SDQC R/L 107.5°
  • Setting angle 107.5°, for rhombic indexable inserts, positive 7°, 55° point angle
  • With internal cooling
  • Material: Longitudinal turning

Boring bar, individual, offset with internal cooling
Article no./ATORN no.
3225450810 / 11111222
Packaging unit
1
Catalogue page
KS-0937

Technical characteristics

Anstellwinkel 107,5 °
Coolant supply Internal
D min. 12,5 mm
D1 10 mm
D2 8 mm
Design Right
DIN 8024
F 7 mm
Freiwinkel 7 °
ISO designation A 0810 H SDQC R/L 07
Klemmsystem S
L 100 mm
L2 22 mm
Schaftausführung A
Schneidenhöhe 4,5 mm
Schneidenlänge 7 mm
Spannflächenhöhe 9 mm
suitable indexable inserts DC.. 0702..
Wendeschneidplattenform ISO D
Wendeschneidplattenwinkel 55 °
Werkstoff ST
