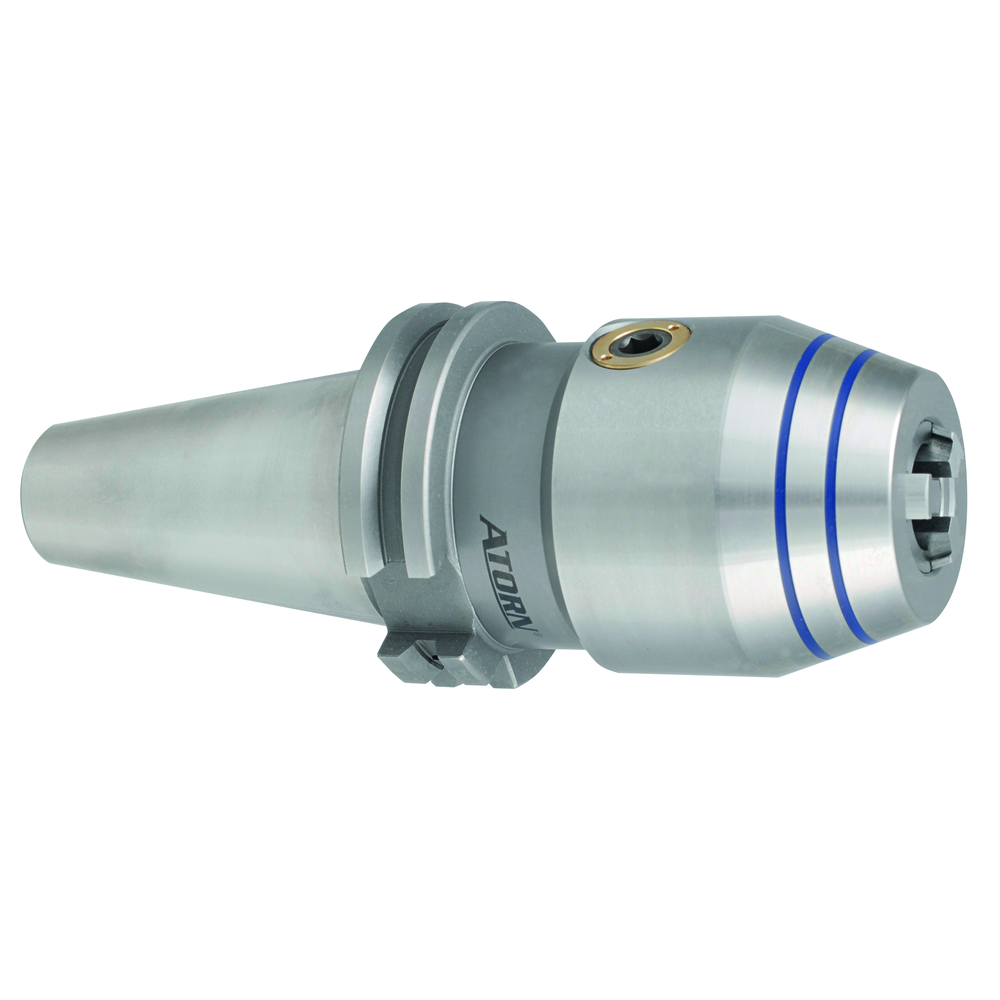

NC short drill chuck with spur gear system DIN69871ADB SK40, 0.5-16 mm

NC short drill chuck with spur gear system DIN69871ADB SK40, 0.5-16 mm
NC short drill chuck with spur gear system DIN69871ADB SK40, 0.5-16 mm NC short drill chuck with spur gear system DIN69871ADB SK40, 0.5-16 mm
Price:
289,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Clamping range 0.5 to 16.0 mm

NC short drill chuck with spur gear system
  • Clamping by means of a spur gear system
  • Suitable for clockwise and anticlockwise rotation
  • True-running accuracy 0.02 mm
  • Short clamping and retooling times
  • Very short design
  • For drilling, reaming, countersinking, thread cutting and simple finishing work on machining centres and CNC lathes
  • Pre-balanced to G 6.3 at 25,000 rpm
  • Max. permitted speed with balanced tool 35,000 rpm
  • Max. permitted speed with unbalanced tool 7,000 rpm

DIN ISO 7388-1 AD / DIN 69871 AD/AF
  • Internal coolant supply

Clamping range 0.5 to 16.0 mm

NC short drill chuck with spur gear system
  • Clamping by means of a spur gear system
  • Suitable for clockwise and anticlockwise rotation
  • True-running accuracy 0.02 mm
  • Short clamping and retooling times
  • Very short design
  • For drilling, reaming, countersinking, thread cutting and simple finishing work on machining centres and CNC lathes
  • Pre-balanced to G 6.3 at 25,000 rpm
  • Max. permitted speed with balanced tool 35,000 rpm
  • Max. permitted speed with unbalanced tool 7,000 rpm

DIN ISO 7388-1 AD / DIN 69871 AD/AF
  • Internal coolant supply

Article no./ATORN no.
4401394016 / 21040140
Packaging unit
1
Catalogue page
KS-1177

Technical characteristics

A 90 mm
A 90 mm
Coolant supply Yes
Coolant supply Yes
Form AD
Form AD
Max. concentricity 0,02 mm
Max. concentricity 0,02 mm
Max. tightening torque 20 N·m
Max. tightening torque 20 N·m
Min./max. clamping width 0,5-16 mm
Min./max. clamping width 0,5-16 mm
Outer diameter 57 mm
Outer diameter 57 mm
Retaining force 90 N
Retaining force 90 N
Standard constructional dimensions DIN 7388-1
Standard constructional dimensions DIN 7388-1
Taper type SK40
Taper type SK40
Wr. width 6 mm
Wr. width 6 mm
