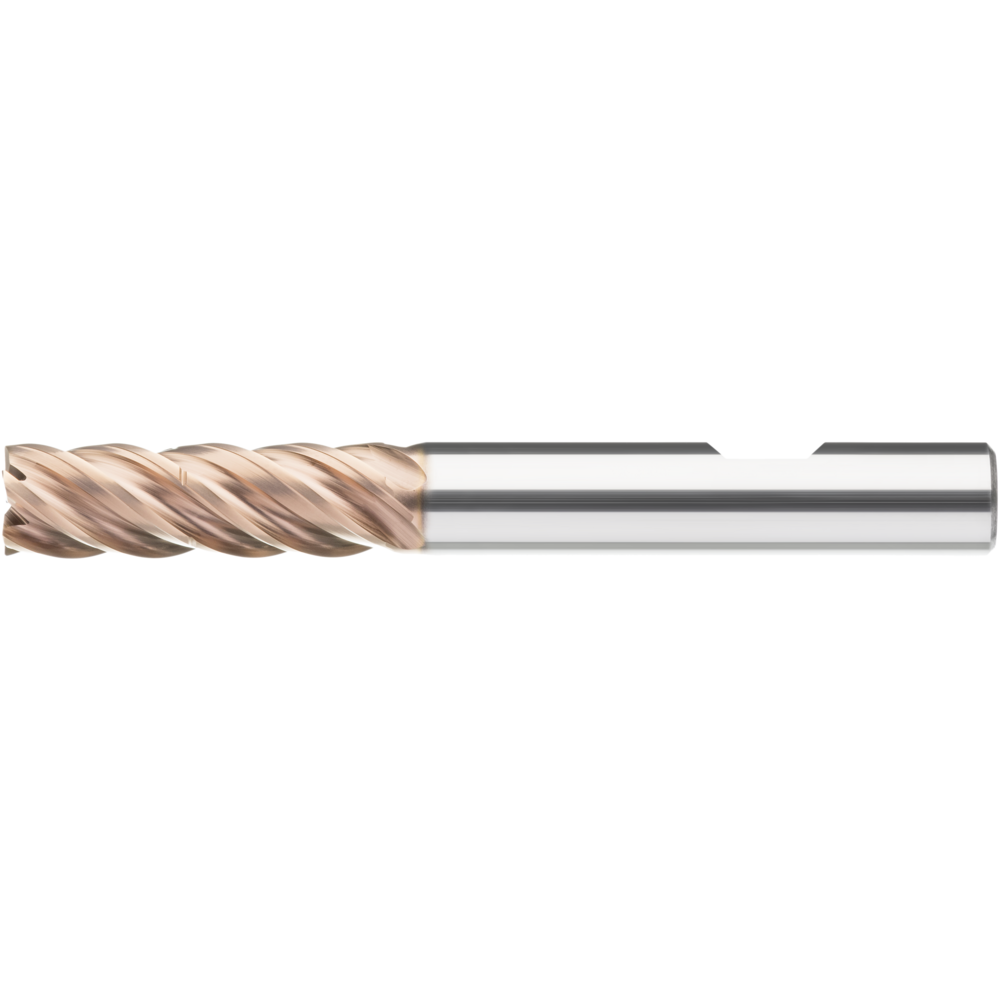

Solid carbide end milling cutter TVC 37°/40° uneq. type N 6mm Z=5 HB, TiAlNSiN

Solid carbide end milling cutter TVC 37°/40° uneq. type N 6mm Z=5 HB, TiAlNSiN
Solid carbide end milling cutter TVC 37°/40° uneq. type N 6mm Z=5 HB, TiAlNSiN Solid carbide end milling cutter TVC 37°/40° uneq. type N 6mm Z=5 HB, TiAlNSiN
Price:
89,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Trochoidal

Trochoidal end milling cutter (stainless steel)
  • With clearance
  • Milling cutter designed for TVC use
  • Reinforced core
  • With chip breaker
  • Cutting material: superfine grain solid carbide
  • Irregular tooth pitch for a strong head centre
  • ae max. 15 %

3 x D
Article no./ATORN no.
2541570060 / 11263747
Packaging unit
1
Catalogue page
KS-0453
Cutting values
SW-0778

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling TVC
Center cutting Yes
Coating TiAlSiN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 6 mm
D1 6 mm
D3 5,7 mm
Durchmesser max. 20 mm
Durchmesser min. 6 mm
Durchmesser min./max. 6-20 mm
Edge protection for chamfer angle 45 °
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 2
F x 45° 0,12 mm
Feed for side milling fz stainless steel ferrit./martens. 0,050 mm/tooth
fitness hartl total 3
Form Corner
fz Edelstahl 0,07
Geeignet für Werkstoffgruppe H 3
Geeignet für Werkstoffgruppe K 3
Geeignet für Werkstoffgruppe M 1
Geeignet für Werkstoffgruppe N 3
Geeignet für Werkstoffgruppe P 3
Geeignet für Werkstoffgruppe S 1
L 62 mm
L1 19 mm
L2 21 mm
Overall length Long
Rake angle 12 °
Surface ULTRA M
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Tooth pitch Unequal
Twist angle 40°
Type VA
Z 5 pc.

Usage characteristics

stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
