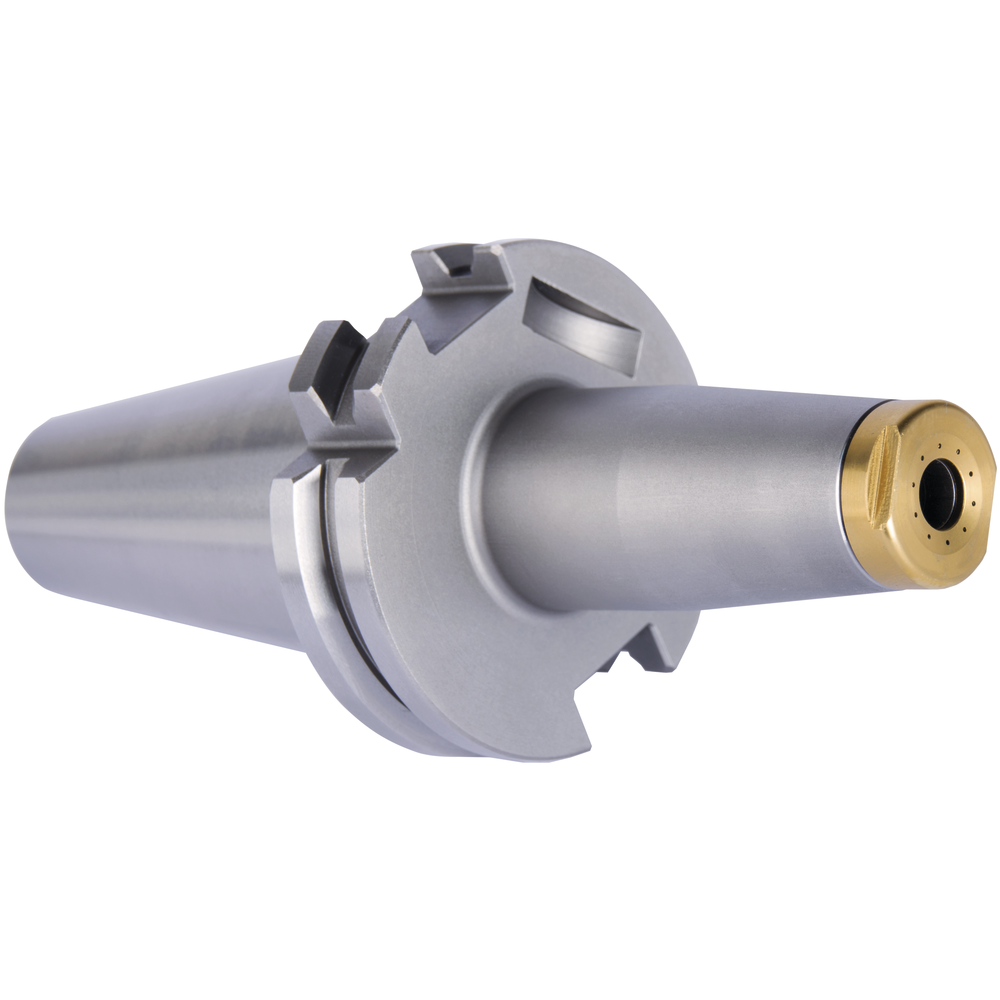

Shrink fit holder DIN69871A SK40 Ø3, A=80mm, Goldring JetSleeve 2®

Shrink fit holder DIN69871A SK40 Ø3, A=80mm, Goldring JetSleeve 2®
Shrink fit holder DIN69871A SK40 Ø3, A=80mm, Goldring JetSleeve 2® Shrink fit holder DIN69871A SK40 Ø3, A=80mm, Goldring JetSleeve 2® Shrink fit holder DIN69871A SK40 Ø3, A=80mm, Goldring JetSleeve 2®
Price:
306,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
JetSleeve 2® ThermoGrip® shrink fit holders
  • Revolutionary solution for mould engineering and HSC machining
  • Standard version suitable for air and cooling lubricant, versions for minimum volume lubrication available on request
  • The coolant is fed via various nozzles directly to the cutting edge. Chips are blown away and not run through.
  • Up to 300 % higher endurance
  • No surface scratching by chips
  • Optimum tool holder cooling right through to the cutting edge
  • Innovation in the JetSleeve 2®
    Rotating chuck with media duct, the milling machine does not need to be retrofitted
    .Pressure is built up in the nozzle unit, and the flow effect from the nozzles keeps the coolant jet on the milling cutter shank at all times. JetSleeve chucks can be used on all conventional milling machines with internal coolant supply
  • Suitable for all agents: air, minimum volume lubrication, cutting fluid
  • Energy-efficient and environmentally friendly
  • Shrinking with screwed-on nozzle cover possible

DIN ISO 7388-1 / DIN 69871 AD
  • Internal coolant supply

JetSleeve 2® ThermoGrip® shrink fit holders
  • Revolutionary solution for mould engineering and HSC machining
  • Standard version suitable for air and cooling lubricant, versions for minimum volume lubrication available on request
  • The coolant is fed via various nozzles directly to the cutting edge. Chips are blown away and not run through.
  • Up to 300 % higher endurance
  • No surface scratching by chips
  • Optimum tool holder cooling right through to the cutting edge
  • Innovation in the JetSleeve 2®
    Rotating chuck with media duct, the milling machine does not need to be retrofitted
    .Pressure is built up in the nozzle unit, and the flow effect from the nozzles keeps the coolant jet on the milling cutter shank at all times. JetSleeve chucks can be used on all conventional milling machines with internal coolant supply
  • Suitable for all agents: air, minimum volume lubrication, cutting fluid
  • Energy-efficient and environmentally friendly
  • Shrinking with screwed-on nozzle cover possible

DIN ISO 7388-1 / DIN 69871 AD
  • Internal coolant supply

Article no./ATORN no.
4303304003
Vendor Article no.
72.060.510.010
Packaging unit
1
Catalogue page
KS-1237

Technical characteristics

A 80 mm
A 80 mm
D1 3 mm
D1 3 mm
D2 15 mm
D2 15 mm
D3 20 mm
D3 20 mm
L1 20 mm
L1 20 mm
Shank SK 40
Shank SK 40
Wr. width 13 mm
Wr. width 13 mm
Catalogue page Download
