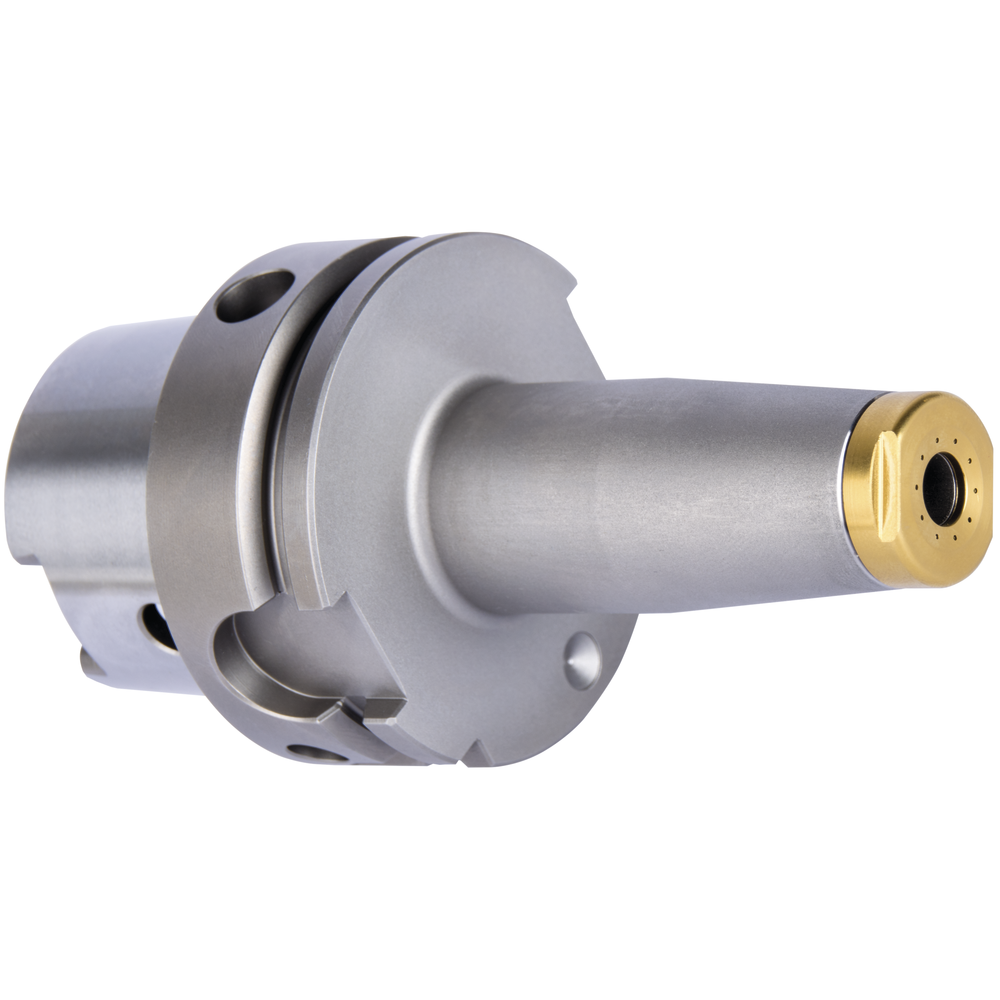

JetSleeve 2® ThermoGrip® shrink fit holders

• Revolutionary solution for mould engineering and HSC machining
• Standard version suitable for air and cooling lubricant, versions for minimum volume lubrication available on request
• The coolant is fed via various nozzles directly to the cutting edge. Chips are blown away and not run through.
• Up to 300 % higher endurance
• No surface scratching by chips
• Optimum tool holder cooling right through to the cutting edge
• Innovation in the JetSleeve 2®
  Rotating chuck with media duct, the milling machine does not need to be retrofitted
  .Pressure is built up in the nozzle unit, and the flow effect from the nozzles keeps the coolant jet on the milling cutter shank at all times. JetSleeve chucks can be used on all conventional milling machines with internal coolant supply
• Suitable for all agents: air, minimum volume lubrication, cutting fluid
• Energy-efficient and environmentally friendly
• Shrinking with screwed-on nozzle cover possible

HSK A DIN 69893

• Internal coolant supply
• When machining with internal coolant supply, a coolant transfer pipe with art.no. 431011... should be used
