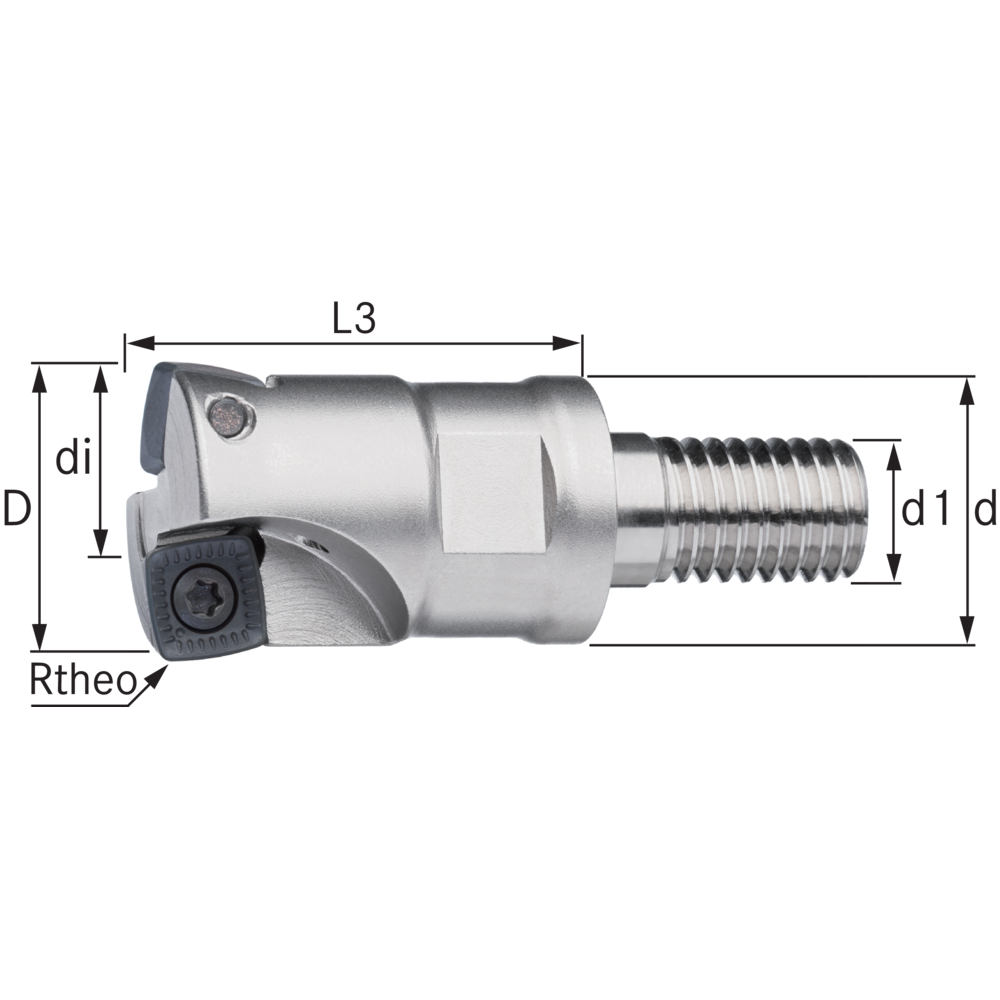

High feed-rate screw-in milling cutter 20mm for 2 XCN..07 milling inserts

High feed-rate screw-in milling cutter 20mm for 2 XCN..07 milling inserts
High feed-rate screw-in milling cutter 20mm for 2 XCN..07 milling inserts High feed-rate screw-in milling cutter 20mm for 2 XCN..07 milling inserts
Price:
348,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
High feed-rate screw-in milling cutter XCN.
  • for milling inserts, type XCN.. 07
  • 4-cutting-edge, extremely robust indexable inserts
  • Deep cutting troughs with cutting surface topography
  • Irregular pitch for low-vibration milling even for high exposed lengths
  • Long service life thanks to nickel-plated design
  • Wide range of applications

Article no./ATORN no.
2850030020 / 10617049
Packaging unit
1
Catalogue page

Technical characteristics

ap max. 1 mm
Application Face milling
Coolant supply Internal
Cutting data Cutting angle Information - yes
D 20 mm
D1 18 mm
Freistellungslänge 30 mm
Geeignet für Wendeschneidplatten XCN. 0703..
Jaw height 1,0 mm
L 30 mm
Max. tightening torque 2,25 N·m
Oberfläche NI
Passende Wendeschneidplatten-Nr. 1
Radius, theoretical 1,5 mm
Schneidendurchmesser max. 20 mm
Schneidendurchmesser min. 6,9 mm
Schneidendurchmesser min./max. 6,9-20 mm
Thread dimension M10
Tool holding device Screw-in thread
Werkstoff ST
Z 2 pc.
