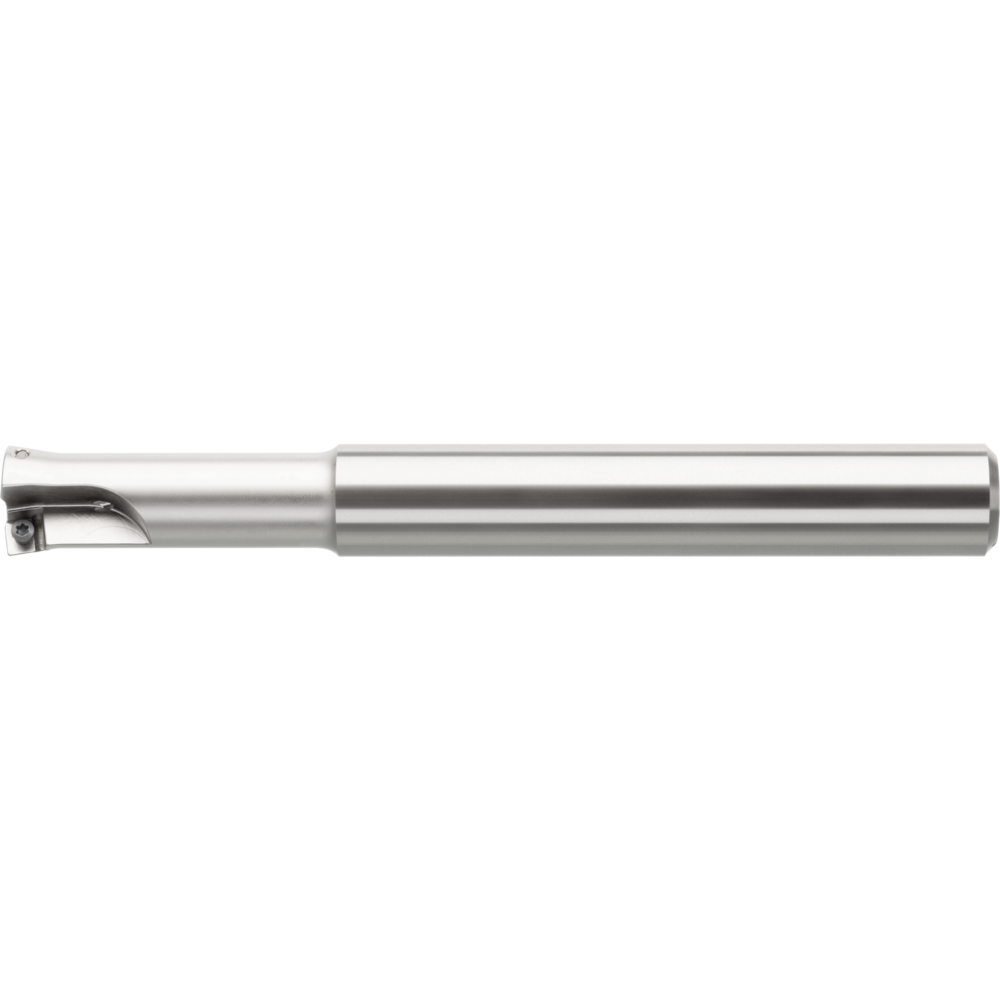

High feed-rate end milling cutter 20mm for 2 XCN..07 milling inserts

High feed-rate end milling cutter 20mm for 2 XCN..07 milling inserts
High feed-rate end milling cutter 20mm for 2 XCN..07 milling inserts High feed-rate end milling cutter 20mm for 2 XCN..07 milling inserts
Price:
350,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
High feed-rate milling cutter XCN.
  • for milling inserts, type XCN.. 07
  • 4-cutting-edge, extremely robust indexable inserts
  • Deep cutting troughs with cutting surface topography
  • Irregular pitch for low-vibration milling even for high exposed lengths
  • Long service life thanks to nickel-plated design
  • Wide range of applications

Article no./ATORN no.
2850010020 / 10617196
Packaging unit
1
Catalogue page

Technical characteristics

Anzahl Schneiden 2 pc.
ap max. 1 mm
Application Face milling
Coolant design Internal axial
Cutting data Cutting angle Information - yes
D 20 mm
D1 20 mm
ERtheor. 1,5 mm
Freistellungslänge 60 mm
Geeignet für Wendeschneidplatten XCN. 0703..
H 1 mm
L 175 mm
L1 60 mm
Länge 175 mm
Max. tightening torque 2,25 N·m
Oberfläche NI
Radius theoretisch 1,5 mm
Schaftdurchmesser 20 mm
Schneidendurchmesser max. 20 mm
Schneidendurchmesser min. 6,9 mm
Schneidendurchmesser min./max. 6,9-20 mm
Werkstoff ST
Z 2
