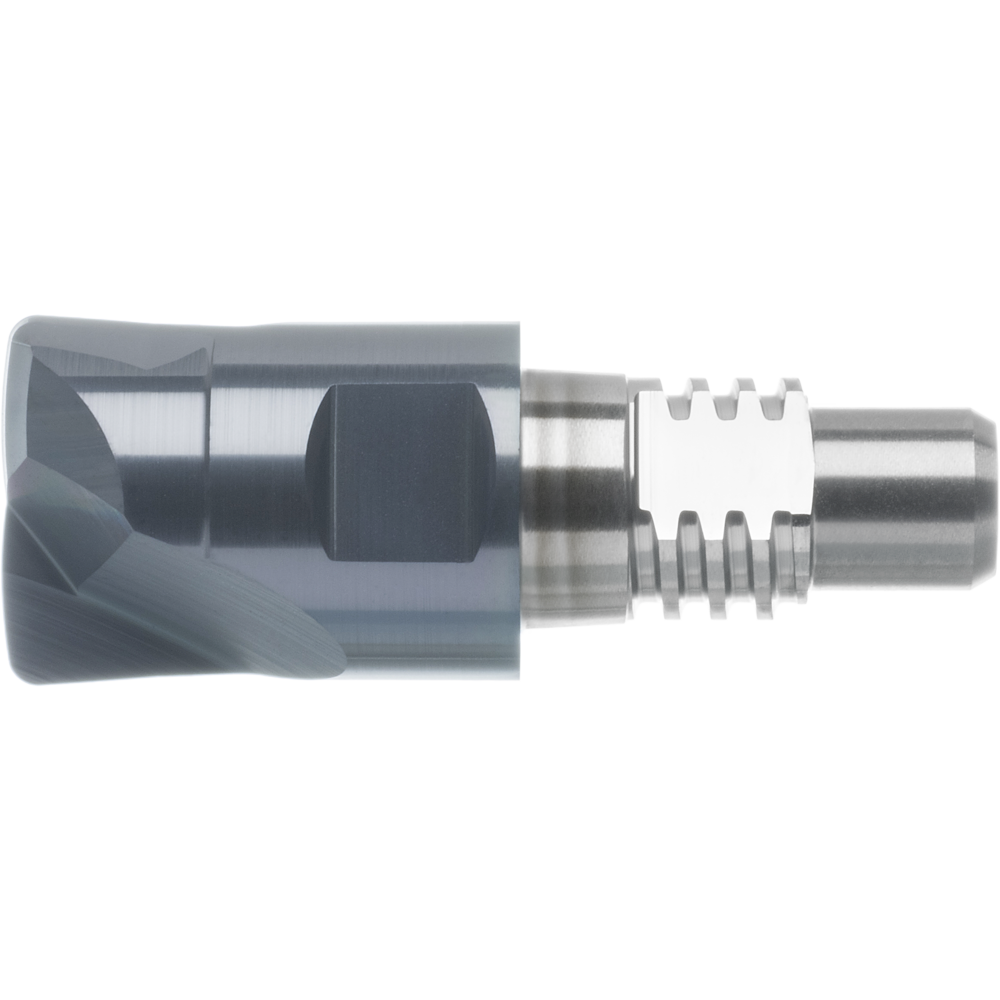

Application direction milling
Lining, ramping and drilling
Application milling
MSC
Coating
AlTiN
Coolant supply
External
Cutting data
Cutting angle Information - yes
Cutting material
Solid carbide
D
10 mm
D1
9,6 mm
Design
AlTiN
Durchmesser max.
20 mm
Durchmesser min.
10 mm
Durchmesser min./max.
10-20 mm
Eignung Edelstahl gesamt
3
Eignung nicht Eisen gesamt
3
Eignung Titan/Nickel/Super gesamt
3
Feed for side milling fz steel < 1000 mm²
0,2 mm/tooth
fitness hartl total
1
Form
Torus
Freistellungsdurchmesser
9,6 mm
fz Stahl 1000
0,2 mm
Geeignet für Werkstoffgruppe H
1
Geeignet für Werkstoffgruppe K
1
Geeignet für Werkstoffgruppe M
3
Geeignet für Werkstoffgruppe N
3
Geeignet für Werkstoffgruppe P
1
Geeignet für Werkstoffgruppe S
3
Kantenradius
0,64 mm
L
14 mm
L1
7 mm
R
0,64 mm
Radius, theoretical
0,9 mm
Replaceable head system
WKS 20
Surface
AlTiN
Tightening torque
12 N·m
Tolerance of cutting edge diameter
h11
Tolerance of shank diameter
h6
Twist angle
15°
Type
N
Wr. width
8 x 3 mm
Z
2 pc.
