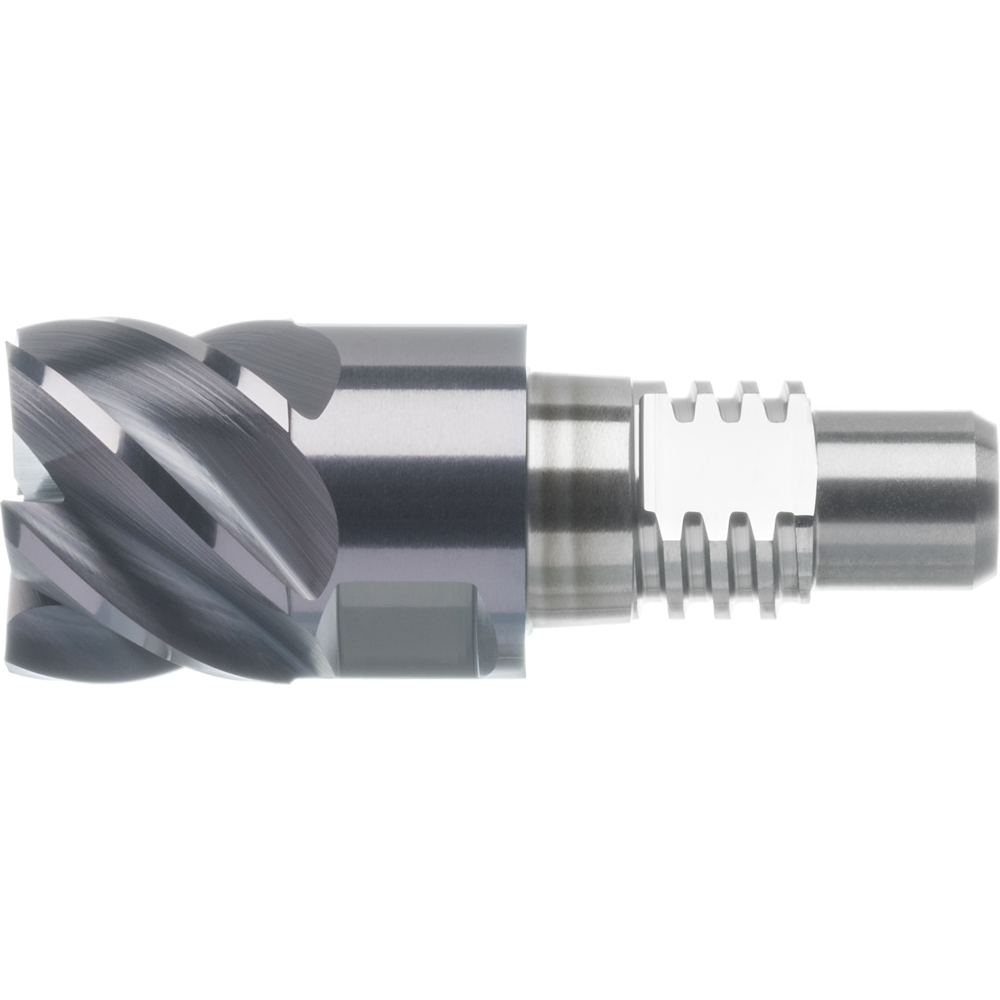

Solid carbide exchangeable head 45° size 20 Ø10 6S. TiAlN

Solid carbide exchangeable head 45° size 20 Ø10 6S. TiAlN
Solid carbide exchangeable head 45° size 20 Ø10 6S. TiAlN Solid carbide exchangeable head 45° size 20 Ø10 6S. TiAlN
Price:
77,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Exchangeable head milling cutter, multi-flute
Article no./ATORN no.
2556070100 / 12040373
Packaging unit
1
Catalogue page
KS-0624
Cutting values
SW-0802

Technical characteristics

Application direction milling Lining
Coating TiAlN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 10 mm
D1 9,6 mm
Durchmesser max. 20 mm
Durchmesser min. 10 mm
Durchmesser min./max. 10-20 mm
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 3
Feed for side milling fz steel < 1000 mm² 0,065 mm/tooth
fitness hartl total 3
Form Corner
Freistellungsdurchmesser 9,6 mm
fz Stahl 1000 0,065 mm
Geeignet für Werkstoffgruppe H 3
Geeignet für Werkstoffgruppe K 1
Geeignet für Werkstoffgruppe M 1
Geeignet für Werkstoffgruppe N 3
Geeignet für Werkstoffgruppe P 1
Geeignet für Werkstoffgruppe S 3
L 14 mm
L1 7 mm
Replaceable head system WKS 20
Surface TiAlN
Tightening torque 12 N·m
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6
Twist angle 45°
Type N
Wr. width 8 x 3 mm
Z 6 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
