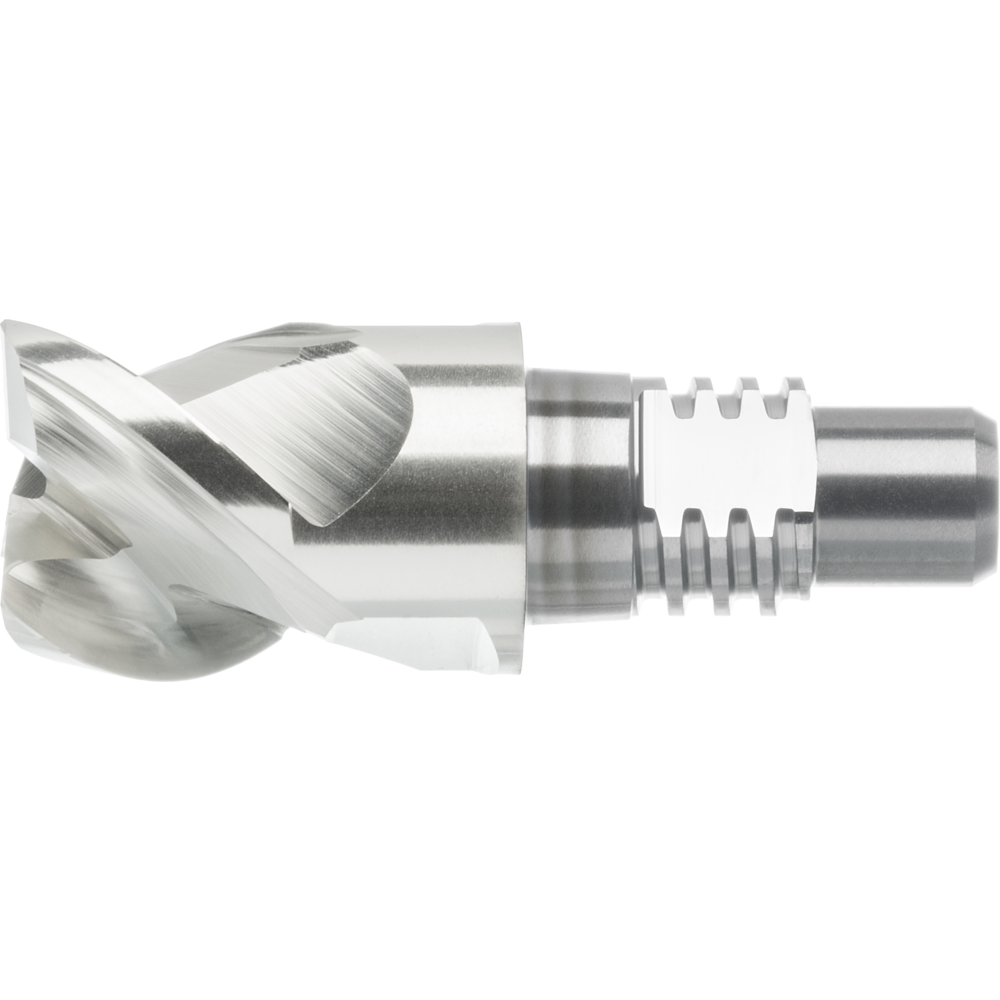

Solid carbide exchangeable head 45° W ZrN size 20 Ø10 3S. ZrN

Price:
68,50 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available

Ordered by 19:30 - delivered tomorrow.

Exchangeable head milling cutter, Z3 Type W
Article no./ATORN no.
2556030100 / 12040353
Packaging unit
1
Catalogue page
Cutting values

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Coating ZrN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 10 mm
D1 9,6 mm
Durchmesser max. 20 mm
Durchmesser min. 10 mm
Durchmesser min./max. 10-20 mm
Edge protection for chamfer angle 45 °
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
F x 45° 0,2 mm
Feed for side milling fz aluminium < 8 % Si 0,065 mm/tooth
fitness hartl total 3
Form Corner
Freistellungsdurchmesser 9,6 mm
fz ALU 0,065 mm
Geeignet für Werkstoffgruppe H 3
Geeignet für Werkstoffgruppe K 1
Geeignet für Werkstoffgruppe M 1
Geeignet für Werkstoffgruppe N 1
Geeignet für Werkstoffgruppe P 1
Geeignet für Werkstoffgruppe S 3
L 14 mm
L1 7 mm
Replaceable head system WKS 20
Surface ZrN
Tightening torque 12 N·m
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6
Twist angle 45°
Type W
Wr. width 8 x 3 mm
Z 3 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
plastic

very suitable
suitable
