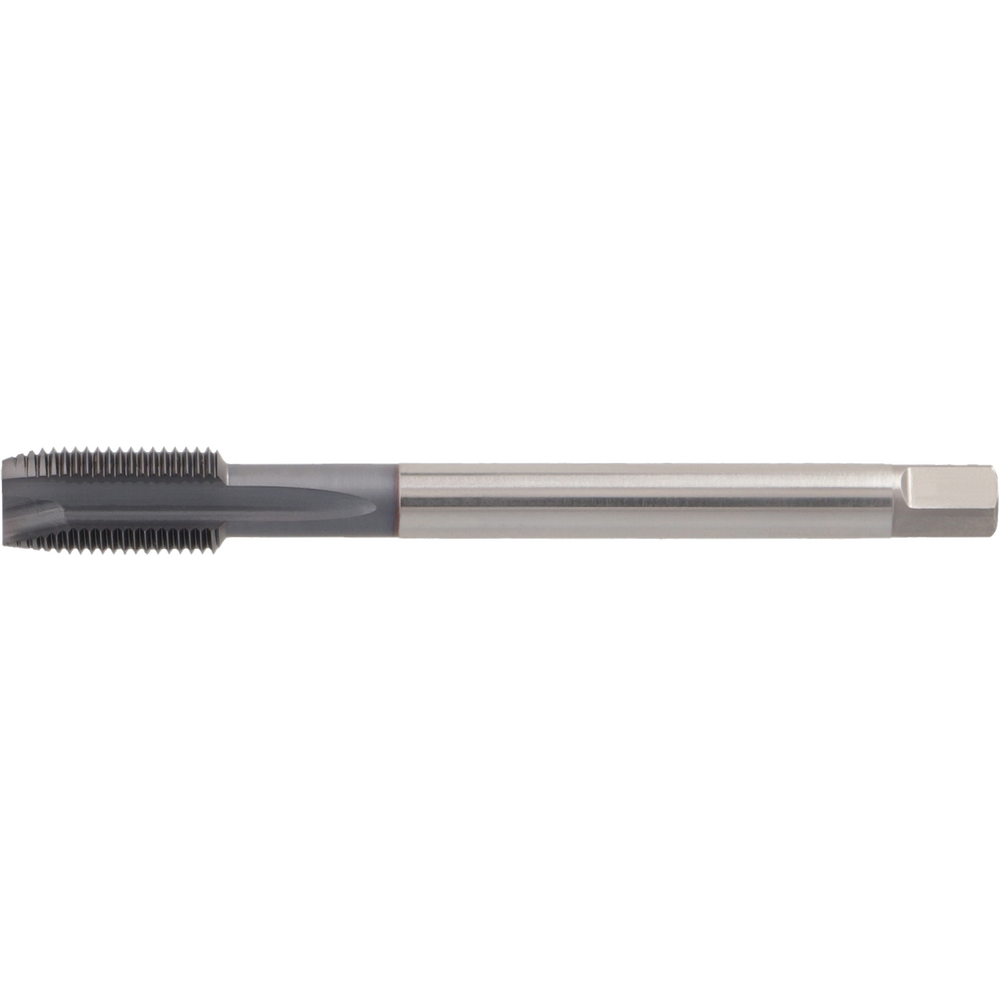

Maschinen-Gewindebohrer UNF #2-64 DIN2184-1/B 2BX HSSE-PM Durchgang UNI TICN

Maschinen-Gewindebohrer UNF #2-64 DIN2184-1/B 2BX HSSE-PM Durchgang UNI TICN
Maschinen-Gewindebohrer UNF #2-64 DIN2184-1/B 2BX HSSE-PM Durchgang UNI TICN Maschinen-Gewindebohrer UNF #2-64 DIN2184-1/B 2BX HSSE-PM Durchgang UNI TICN

We charge a material cost surcharge of 6,90% on this product.

Price
41,10 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

_ItemDeliveryInfoSaratools missing

  • UNC/UNF
  • Form E, 1.5 thread chamfer, for blind-hole thread
  • Cutting material HSS-E-PM
  • Possible thread depth 2.5 x D
  • For universal application

UNF
Article no./ATORN no.
1320330264 / 12281121
Packaging unit
1
Catalogue page

Technical characteristics

C 2,1
Coolant supply External
Cutting material HSSE-PM
D1 2,8 mm
DIN 371/376
Form/Chamfer B
L 45 mm
L1 9 mm
Nominal diameter UNF 2 mm
Pitch 64 mm
Surface TiCN
Tapping hole Ø 1,9 mm
Thread UNF

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
