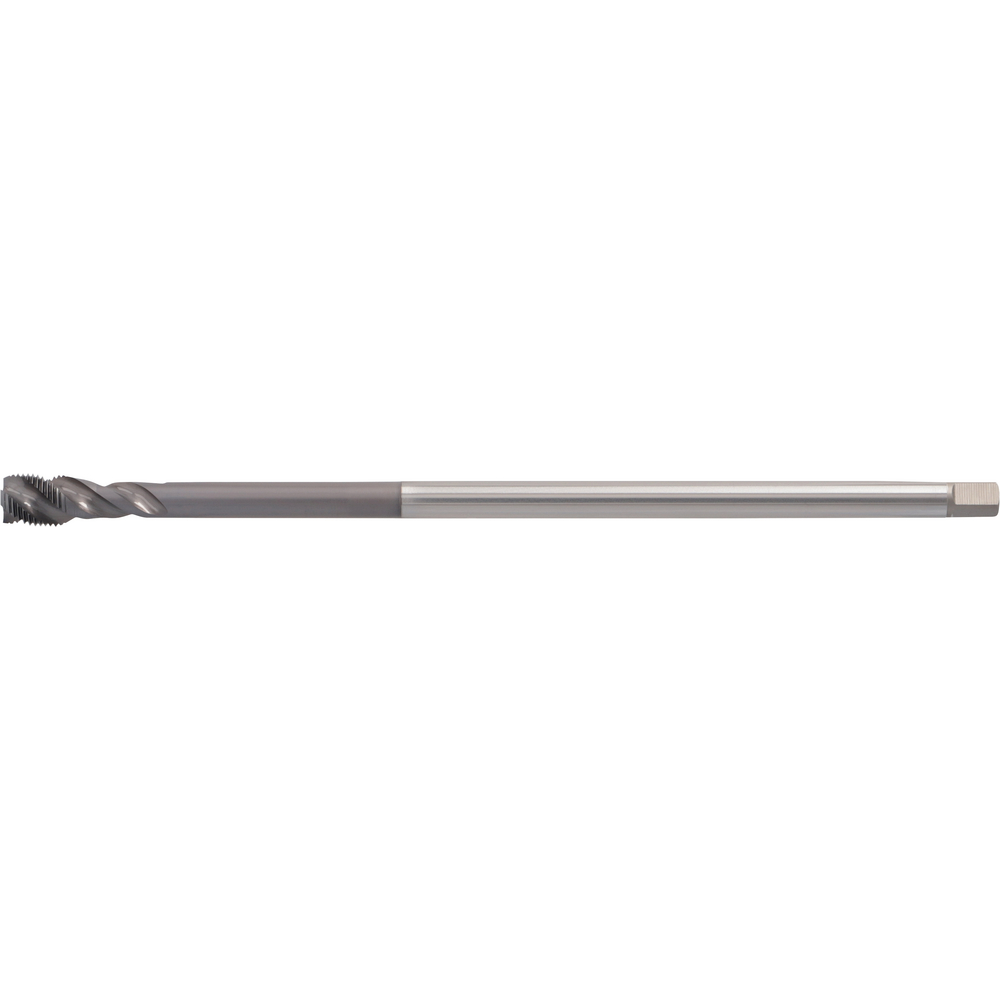

Maschinen-Gewindebohrer G 1/2 ~DIN5156/C HSSE-PM Grundloch UNI TICN

Maschinen-Gewindebohrer G 1/2 ~DIN5156/C HSSE-PM Grundloch UNI TICN
Maschinen-Gewindebohrer G 1/2 ~DIN5156/C HSSE-PM Grundloch UNI TICN Maschinen-Gewindebohrer G 1/2 ~DIN5156/C HSSE-PM Grundloch UNI TICN
Individual price after or registration
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

_ItemDeliveryInfoSaratools missing

Universal thread tap
  • Whitworth thread
  • Form C, 2-3 thread chamfer, for blind-hole thread
  • Constructional dimensions DIN 371
  • Cutting material HSS-E-PM
  • Possible thread depth 2.5 x D
  • For universal application

Extra-long
Article no./ATORN no.
1320290102 / 12281081
Packaging unit
1
Catalogue page

Technical characteristics

C 12 mm
Coolant supply External
Cutting material HSSE-PM
D1 16 mm
DIN 5156
Form/Chamfer C
L 250 mm
L1 25 mm
Nominal diameter G 1/2 mm
Pitch 14 mm
Surface TiCN
Tapping hole Ø 19 mm
Thread G
Threaded hole type Grundloch ≤ 2,5xD
Twist angle 45°

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
