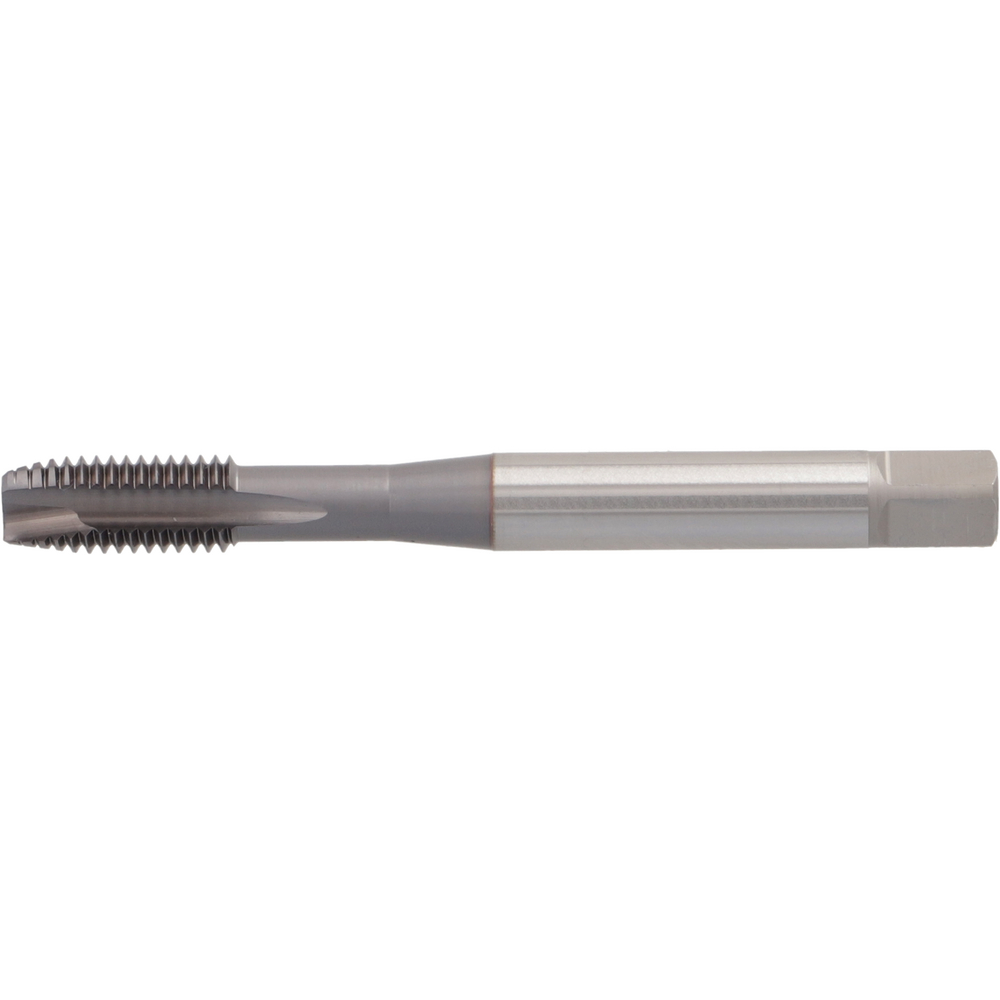

Maschinen-Gewindebohrer EG-M 2 DIN40435/B 6HX-mod HSSE-PM Durchgang UNI TICN

Individual price after or registration
prices excl. vat plus shipping costs

Stock status
in stock

_ItemDeliveryInfoSaratools missing

Article no./ATORN no.
1320240020 / 12281034
Packaging unit
1
Catalogue page

Technical characteristics

C 2.1 mm
Coolant supply External
Cutting material HSSE-PM
D1 2.8 mm
DIN 371/376
Form/Chamfer B
L 50 mm
L1 9 mm
Nominal diameter 2 mm
Pitch 0.4 mm
Surface TiCN
Thread M
Thread EG M
Thread angle 60° thread angle °
Threaded hole type Clearance hole ≤ 3xD
Tolerance of screw taps 6HX
Tolerance of shank diameter h9
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
