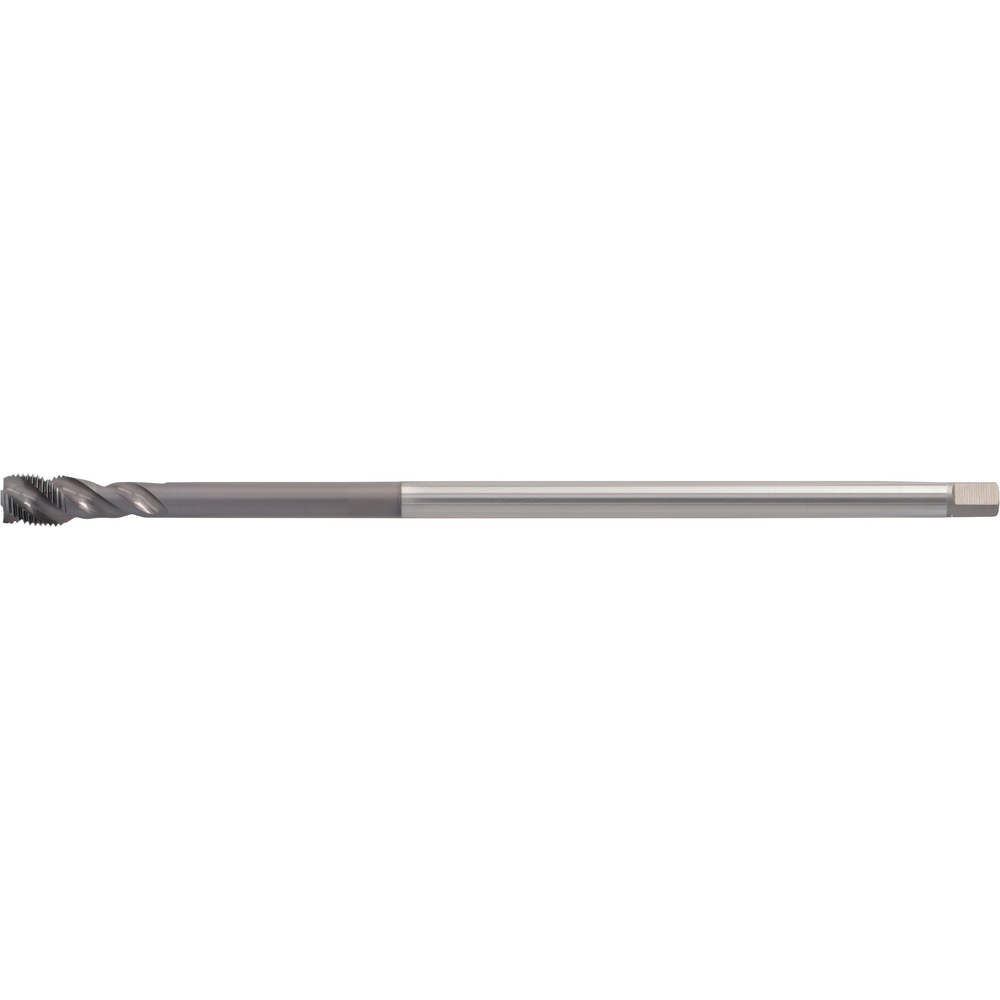

Maschinen-Gewindebohrer MF 8x1 ~DIN374/C 6HX HSSE-PM Grundloch UNI TICN

Maschinen-Gewindebohrer MF 8x1 ~DIN374/C 6HX HSSE-PM Grundloch UNI TICN
Maschinen-Gewindebohrer MF 8x1 ~DIN374/C 6HX HSSE-PM Grundloch UNI TICN Maschinen-Gewindebohrer MF 8x1 ~DIN374/C 6HX HSSE-PM Grundloch UNI TICN
Individual price after or registration
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

_ItemDeliveryInfoSaratools missing

Extra long DIN 371/376
  • ISO fine metric thread
  • Form C, 2-3 thread chamfer, for blind-hole thread
  • Constructional dimensions DIN 374
  • Cutting material HSS-E-PM
  • Possible thread depth 2.5 x D
  • For universal application

Article no./ATORN no.
1320220810 / 12281019
Packaging unit
1
Catalogue page

Technical characteristics

C 4.9 mm
Coolant supply External
Cutting material HSSE-PM
D1 6 mm
DIN 374
Form/Chamfer C
L 180 mm
L1 10 mm
Nominal diameter 8 mm
Pitch 1 mm
Surface TiCN
Tapping hole Ø 7 mm
Thread MF
Thread angle 60° thread angle °
Threaded hole type Blind hole ≤ 2.5xD
Tolerance of screw taps 6HX
Tolerance of shank diameter h9
Twist angle 45°

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
