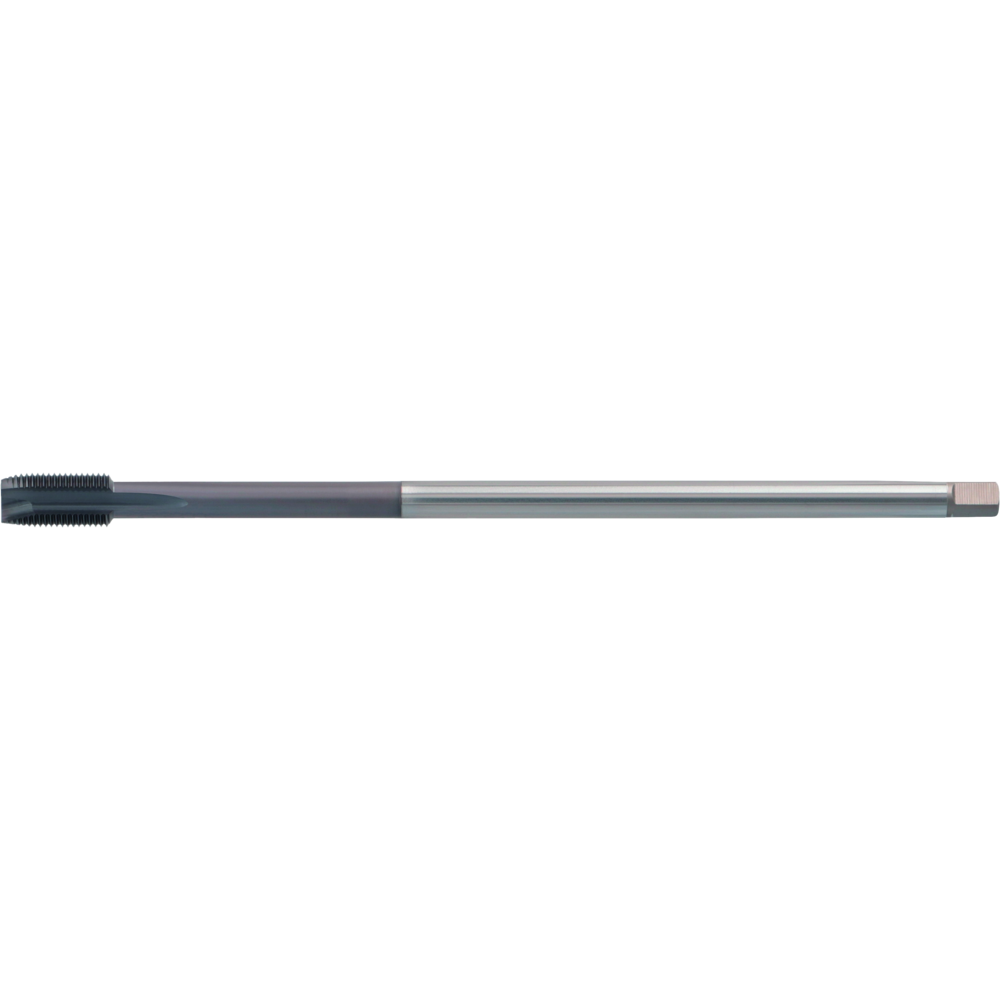

Maschinen-Gewindebohrer MF12x1,5 ~DIN374/B 6HX HSSE-PM Durchgang UNI TICN

Maschinen-Gewindebohrer MF12x1,5 ~DIN374/B 6HX HSSE-PM Durchgang UNI TICN
Maschinen-Gewindebohrer MF12x1,5 ~DIN374/B 6HX HSSE-PM Durchgang UNI TICN Maschinen-Gewindebohrer MF12x1,5 ~DIN374/B 6HX HSSE-PM Durchgang UNI TICN

We charge a material cost surcharge of 6.90% on this product.

Price
135,40 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Universal thread tap
  • ISO 6HX fine metric thread
  • Form B, 3.5-5 thread chamfer, for through-hole thread
  • Constructional dimensions DIN 371
  • Cutting material HSS-E-PM
  • Possible thread depth 3 x D
  • For universal application

Extra-long
Article no./ATORN no.
1320191215 / 12280974
Packaging unit
1
Catalogue page

Technical characteristics

C 7
Coolant supply External
Cutting material HSSE-PM
D1 9 mm
DIN 371/376
Form/Chamfer B
L 200 mm
L1 22 mm
Nominal diameter MF 12 mm
Pitch 1,5 mm
Surface TiCN
Tapping hole Ø 10,5 mm
Thread MF
Thread angle 60° thread angle °

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
