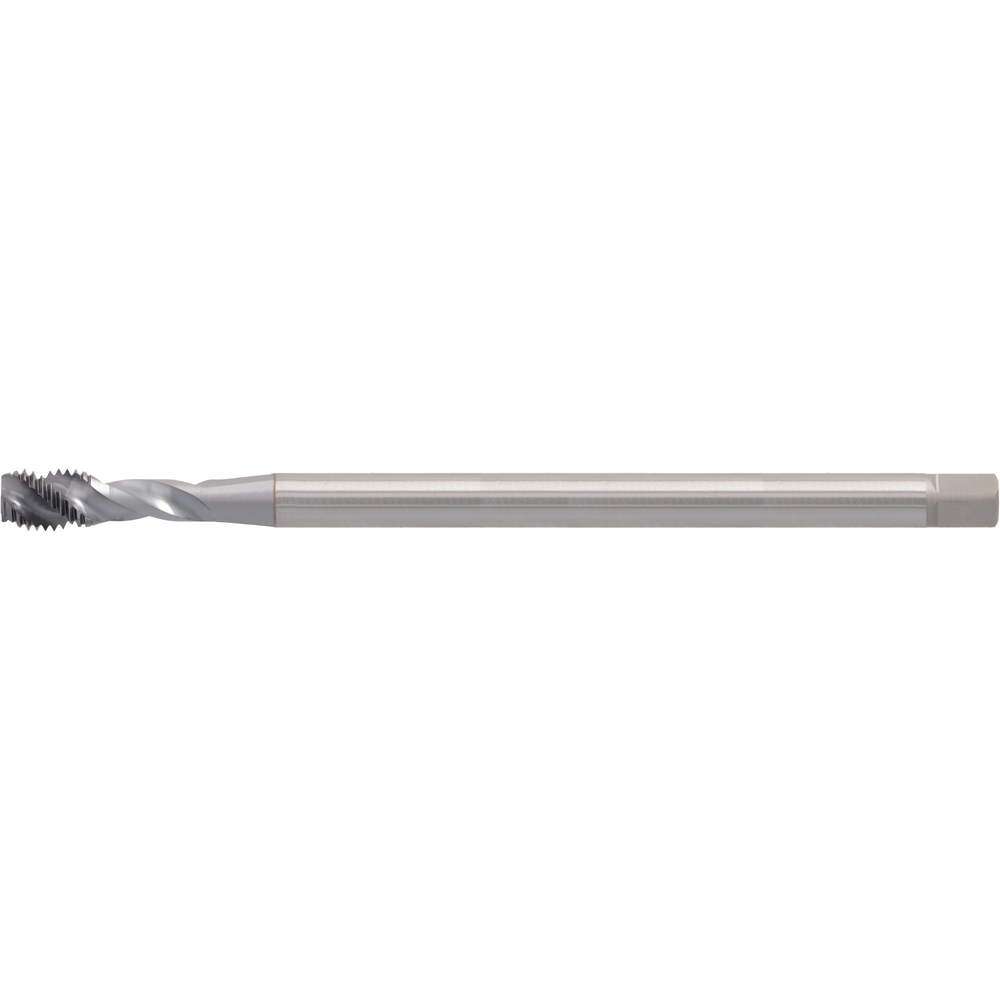

Maschinen-Gewindebohrer M 4 ~DIN376/C 6HX HSSE-PM Grundloch UNI TICN

Maschinen-Gewindebohrer M 4 ~DIN376/C 6HX HSSE-PM Grundloch UNI TICN
Maschinen-Gewindebohrer M 4 ~DIN376/C 6HX HSSE-PM Grundloch UNI TICN Maschinen-Gewindebohrer M 4 ~DIN376/C 6HX HSSE-PM Grundloch UNI TICN
Individual price after or registration
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

_ItemDeliveryInfoSaratools missing

Universal thread tap
  • ISO metric thread
  • Form C, 2-3 thread chamfer, for blind-hole thread
  • Constructional dimensions DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material HSS-E-PM
  • Possible thread depth 2.5 x D
  • For universal application

Extra-long DIN376 overflow shank
Article no./ATORN no.
1320160040 / 12280920
Packaging unit
1
Catalogue page

Technical characteristics

C 2.1 mm
Coolant supply External
Cutting material HSSE-PM
D1 2.8 mm
DIN 371/376
Form/Chamfer C
L 125 mm
L1 5.6 mm
Nominal diameter 4 mm
Pitch 0.7 mm
Surface TiCN
Tapping hole Ø 3.3 mm
Thread M
Thread angle 60° thread angle °
Threaded hole type Grundloch ≤ 2,5xD
Tolerance of screw taps 6HX
Tolerance of shank diameter h9
Twist angle 45°

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
