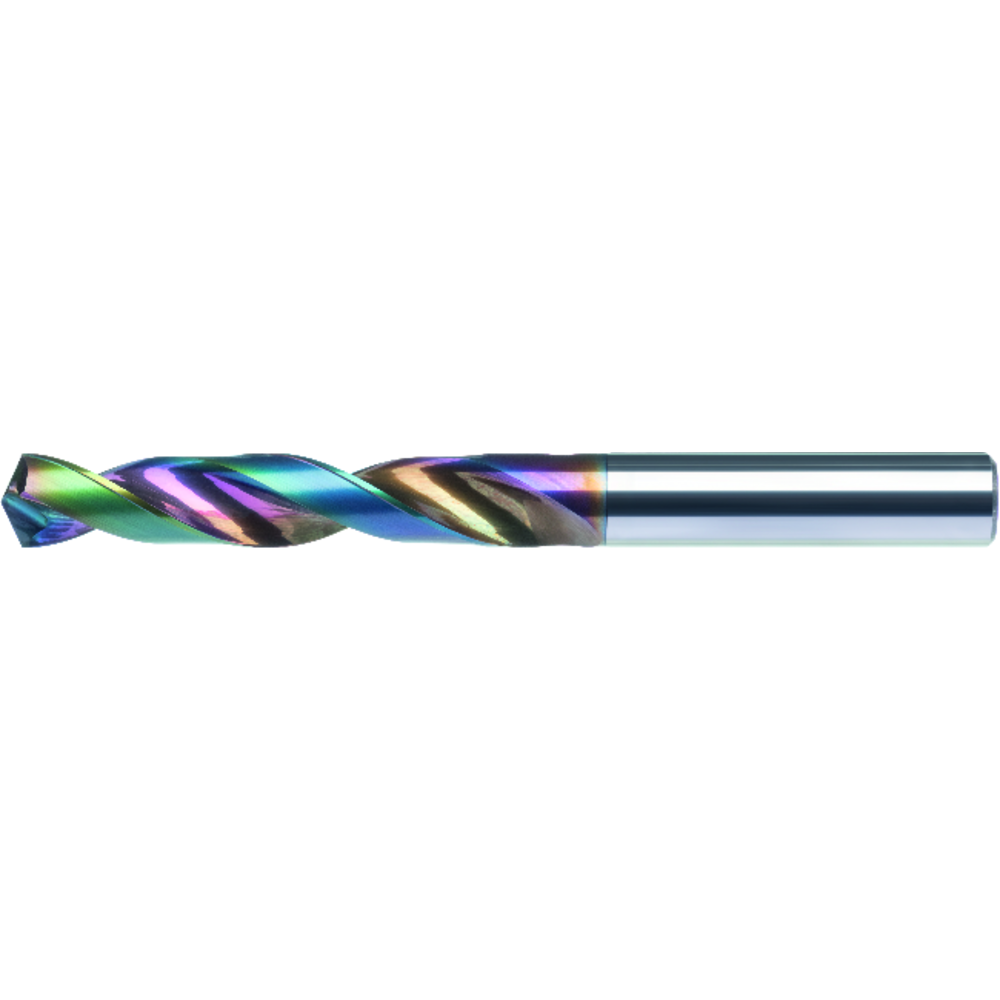

Hochleistungsbohrer VHM-ULTRA N PRO HPC 5xD mit IK HA ø1,0mm

Hochleistungsbohrer VHM-ULTRA N PRO HPC 5xD mit IK HA ø1,0mm
Hochleistungsbohrer VHM-ULTRA N PRO HPC 5xD mit IK HA ø1,0mm Hochleistungsbohrer VHM-ULTRA N PRO HPC 5xD mit IK HA ø1,0mm

We charge a material cost surcharge of 6,90% on this product.

Price
66,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

High-performance drill VHM-ULTRA N PRO HPC 5xD with IK HA
  • Optimal chip breaking due to the sharp, prepared cutting edges
  • No built-up cutting edge due to the specially designed ULTRA N PRO coating
  • Very good chip drainage even with long-chipping material due to the large and polished flutes
  • Excellent bore quality due to low friction coefficient

Aluminium

Especially for aluminium

Article no./ATORN no.
1114110100 / 11869472
Packaging unit
1
Catalogue page
KS-0136
Cutting values
SW-0369

Technical characteristics

Coolant supply Intern
Cutting material VHM
D 1,00 mm
D1 3 mm
DIN 6537
Feed f aluminium 0,08 mm/rev
L 50 mm
L1 6,5 mm
Max. drilling depth (D) 5xD
S 130 °
Surface ULTRA N PRO
Tolerance of cutting edge diameter m7
Tolerance of shank diameter h6
Tool holding device Zylinderschaft HA
Twist angle 30°
Type HPC ALU
Z 2 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short

very suitable
suitable
