Mini-Schaftfr. VHM ø 0,2x0,3x0,5x45mm Z=2 Ha RockTec PRO

Mini-Schaftfr. VHM ø 0,2x0,3x0,5x45mm Z=2 Ha RockTec PRO
Mini-Schaftfr. VHM ø 0,2x0,3x0,5x45mm Z=2 Ha RockTec PRO Mini-Schaftfr. VHM ø 0,2x0,3x0,5x45mm Z=2 Ha RockTec PRO Mini-Schaftfr. VHM ø 0,2x0,3x0,5x45mm Z=2 Ha RockTec PRO
Special offer
26,80 €
(64,00 € catalogue price / 58% saved)
valid until: 31.07.2025
prices excl. vat plus shipping costs

Stock status
Only 2 pieces left!
Add to shopping cart
Tool Finder

Ordered by 18:00 - delivered tomorrow.

ISO H

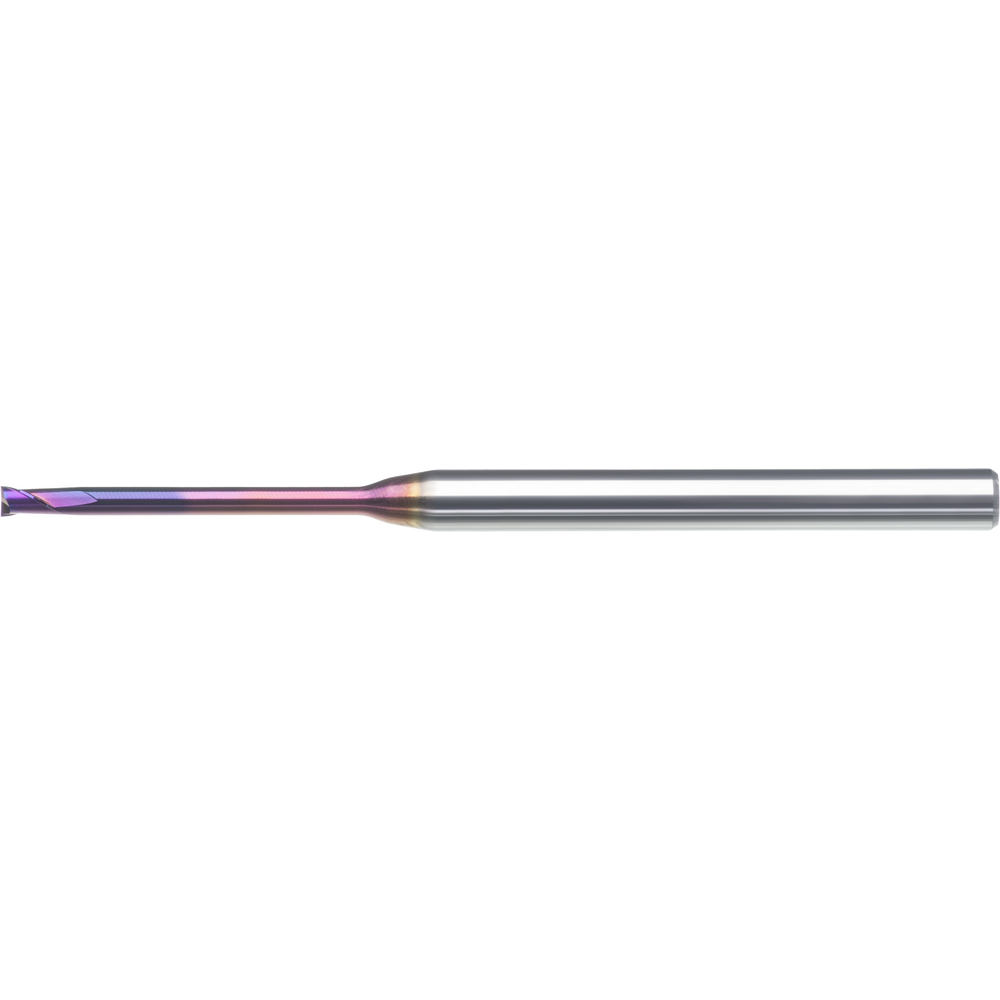

Mini end milling cutter RockTec PRO
  • For machining materials from 47 to 65 HRC
  • Optimised geometry for hard machining
  • Cutting material, ultra-fine grain solid carbide
  • State-of-the-art coating technology for reduced abrasion and extreme hardness
  • Subject to process-related colour variations in the coating.

Article no./ATORN no.
2571020001 / 11264666
Packaging unit
1
Catalogue page
KS-0524
Cutting values
SW-0781

Technical characteristics

Application direction milling Lining, ramping and drilling
Coating TiAlSiN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 0,2 mm
D1 4 mm
D3 0,18 mm
Feed fz hardened steel < 60 HRc 0,002 mm/tooth
L 45 mm
L1 0,3 mm
L2 0,5 mm
Tolerance of cutting edge diameter f7
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 30°
Z 2 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
