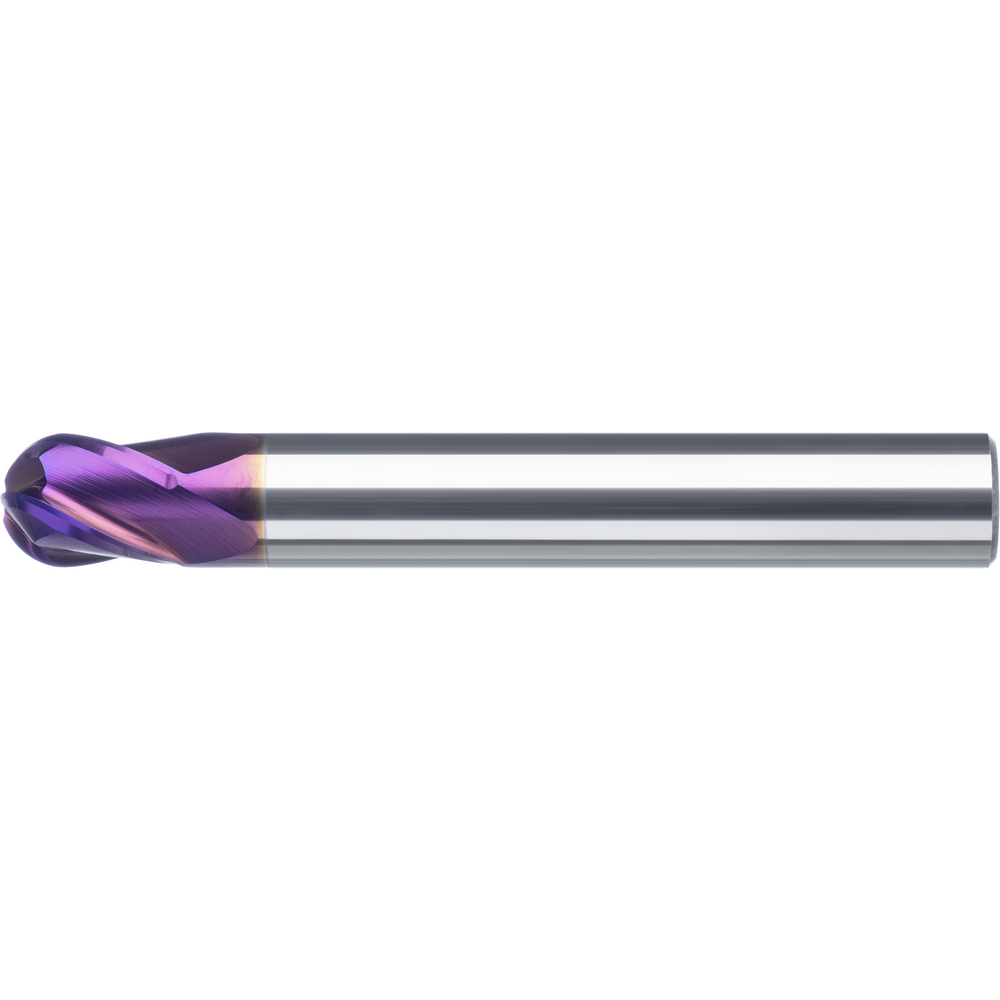

Radiusfräser VHM kurz ø 1x1,5x3,5x57mm Z=4 HA RockTec PRO

Radiusfräser VHM kurz ø 1x1,5x3,5x57mm Z=4 HA RockTec PRO
Radiusfräser VHM kurz ø 1x1,5x3,5x57mm Z=4 HA RockTec PRO Radiusfräser VHM kurz ø 1x1,5x3,5x57mm Z=4 HA RockTec PRO

We charge a material cost surcharge of 6,90% on this product.

Price
75,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
ISO H

RockTec PRO radius milling cutter
  • For machining materials from 47 to 65 HRC
  • Optimised geometry for hard machining
  • Solid carbide ultra-fine grain cutting material
  • State-of-the-art coating technology for reduced wear and extreme hardness
  • Subject to process-related colour variations in the coating.

with longer neck
Article no./ATORN no.
2572500010 / 11264822
Packaging unit
1
Catalogue page
KS-0548
Cutting values
SW-0791

Technical characteristics

Application direction milling Umsäumen, rampen und bohren
Center cutting Ja
Coating TiAlSiN
Coolant supply Extern
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 1 mm
D1 6 mm
D3 0.96 mm
Feed fz hardened steel < 60 HRc 0,008 mm/tooth
L 57 mm
L1 1.5 mm
L2 3.5 mm
R 0.5 mm
Tolerance of cutting edge diameter f7
Tolerance of cutting edge diameter f8
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 30°
Z 4 pc.

Usage characteristics

cast iron GG/GTS
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC
stainless steel duplex
steel < 1000 N/mm²
steel < 1400 N/mm²

very suitable
suitable
Catalogue page Download
Cutting values Download
