Entgrater VHM 90° 6mm Z=5 HA TiAlSiN spiralisiert RockTec PRO

Entgrater VHM 90° 6mm Z=5 HA TiAlSiN spiralisiert RockTec PRO
Entgrater VHM 90° 6mm Z=5 HA TiAlSiN spiralisiert RockTec PRO Entgrater VHM 90° 6mm Z=5 HA TiAlSiN spiralisiert RockTec PRO
Price
47,60 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder
ISO H

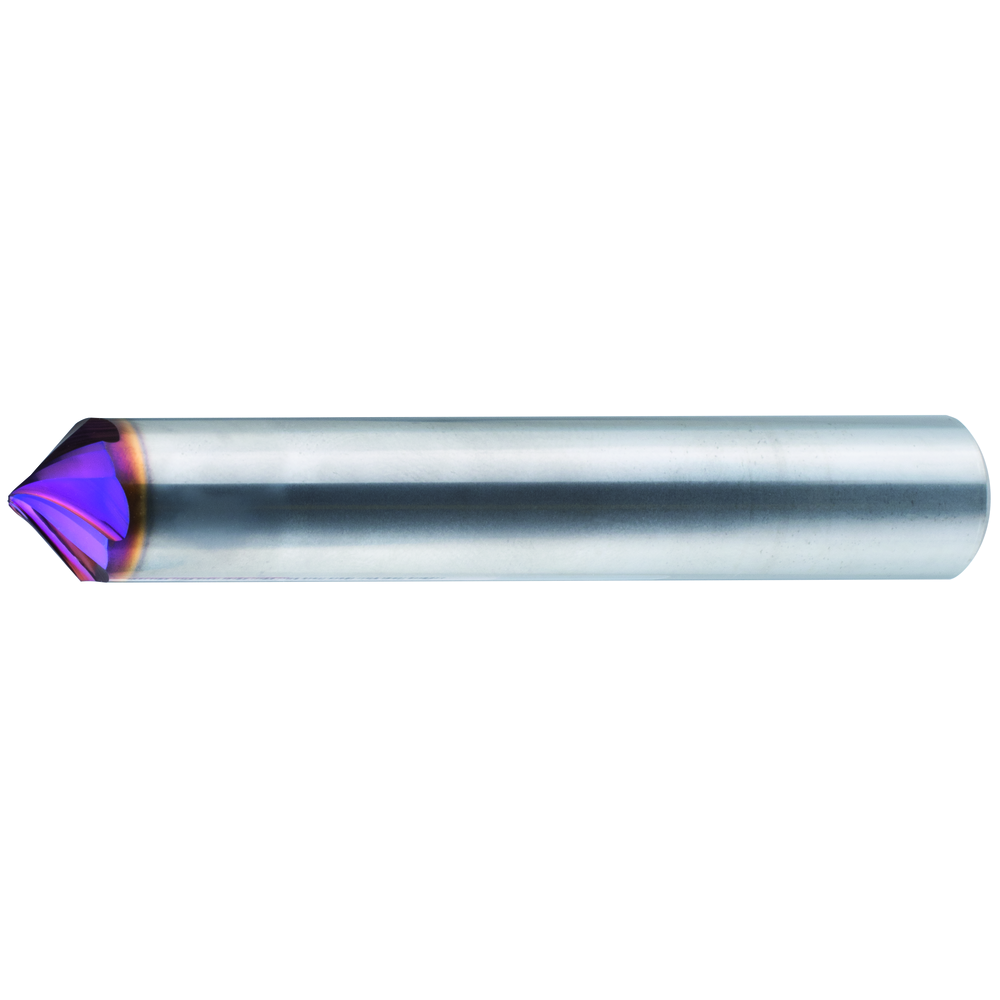

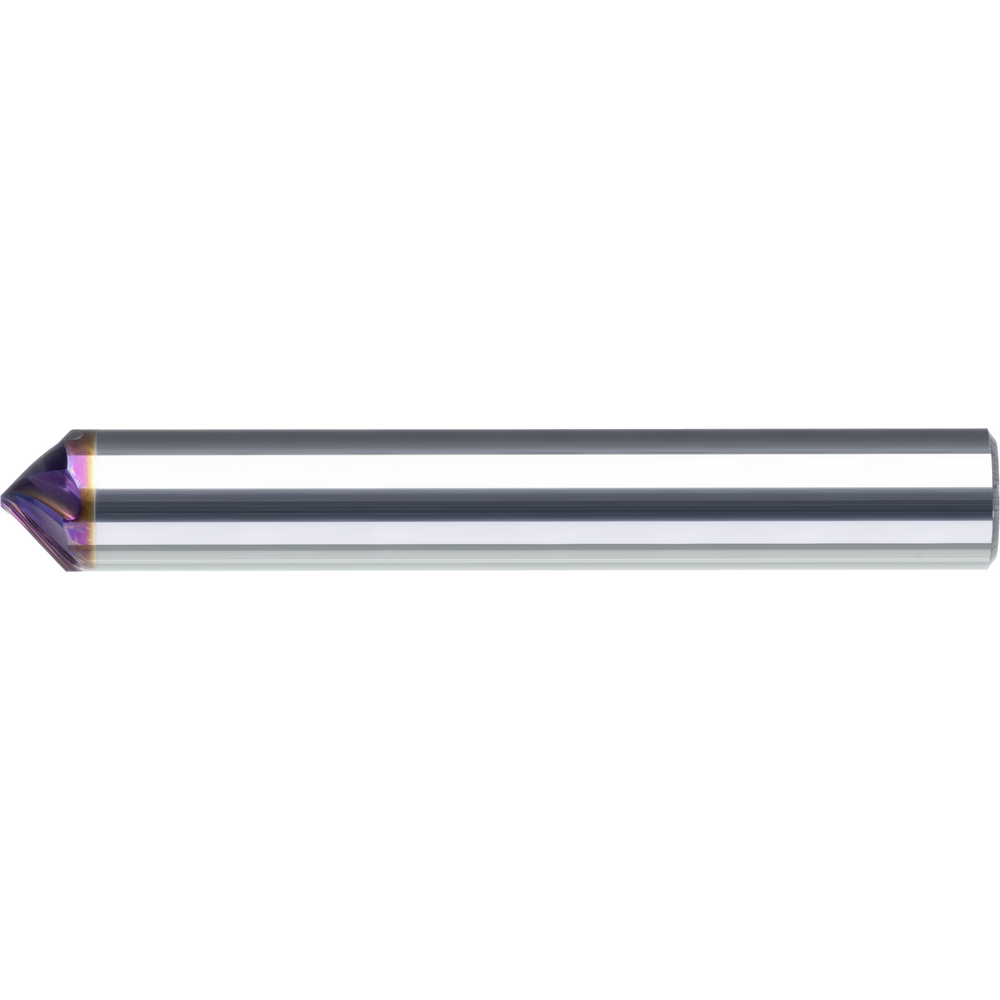

Solid carbide deburrer 90°, spiralled RockTec PRO
  • For machining materials from 47 to 65 HRC
  • Spiralled
  • Optimised geometry for hard machining
  • Cutting material, ultra-fine grain solid carbide
  • State-of-the-art coating technology for reduced abrasion and extreme hardness
  • Subject to process-related colour variations in the coating.

Standard
Article no./ATORN no.
2572600060 / 11264650
Packaging unit
1
Catalogue page
KS-0555
Cutting values
SW-0730

Technical characteristics

Application direction milling Lining, ramping and drilling
Coating TiAlSiN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 6 mm
D1 6 mm
Design 90° HA
Drill diameter 1,0 mm
Feed fz hardened steel < 60 HRc 0,030 mm/tooth
L 57 mm
L1 2,5 mm
S 90 °
Tolerance of cutting edge diameter f7
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 15°
Z 5 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
Cutting values Download
Catalogue page Download
