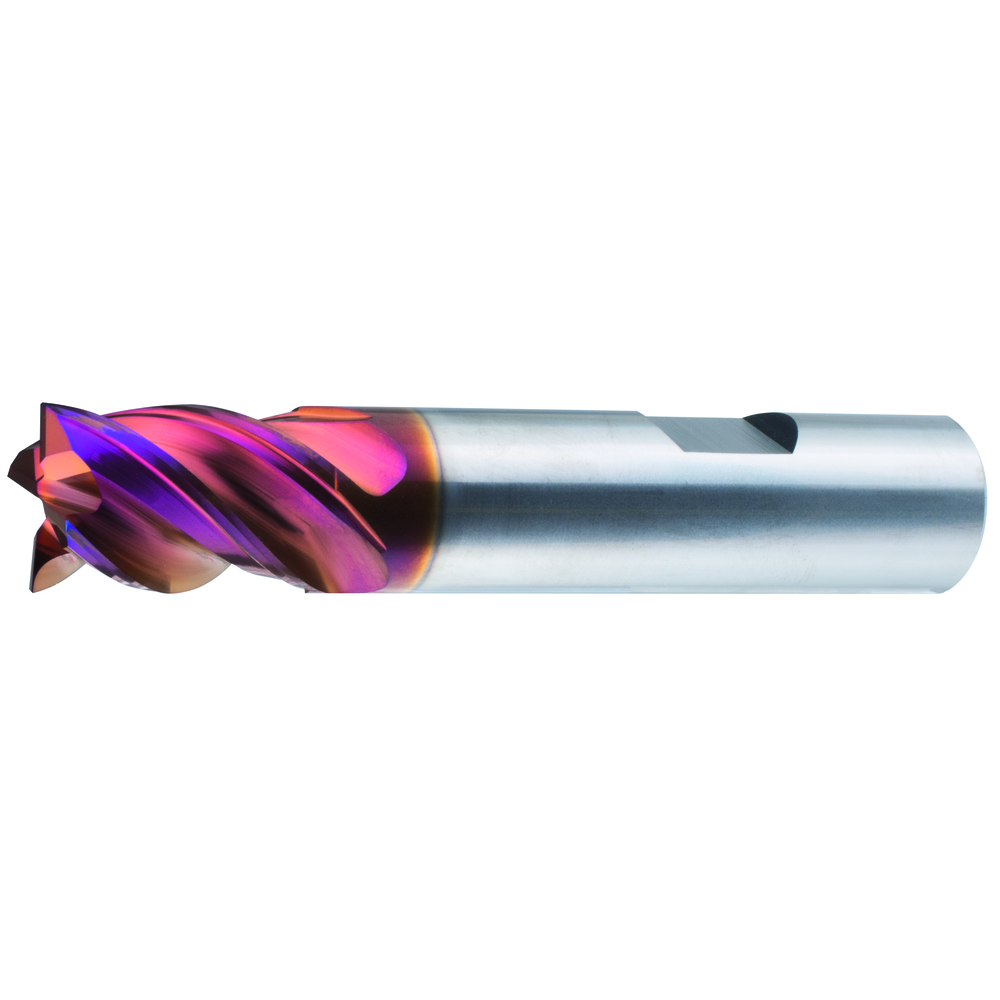

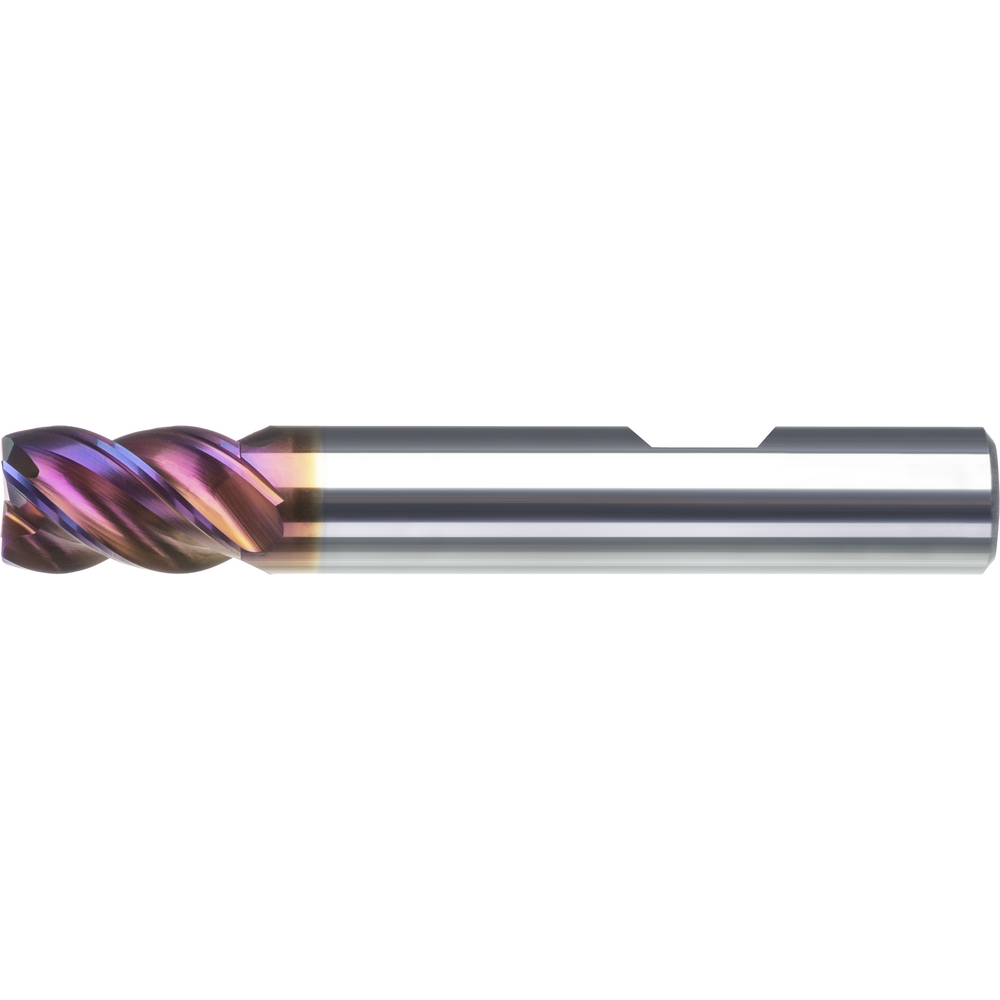

Schaftfräser VHM HPC, kurz, KF, ø 4x8x54mm Z4 HB RockTec PRO

Schaftfräser VHM HPC, kurz, KF, ø 4x8x54mm Z4 HB RockTec PRO
Schaftfräser VHM HPC, kurz, KF, ø 4x8x54mm Z4 HB RockTec PRO Schaftfräser VHM HPC, kurz, KF, ø 4x8x54mm Z4 HB RockTec PRO
Price
42,80 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder
ISO H

Solid carbide end milling cutter HPC RockTec PRO
  • For machining materials from 47 to 65 HRC
  • With corner radius and/or edge protection chamfer
  • Optimised geometry for hard machining
  • Cutting material, ultra-fine grain solid carbide
  • State-of-the-art coating technology for reduced abrasion and extreme hardness
  • Subject to process-related colour variations in the coating.

short with edge protection chamfer
Article no./ATORN no.
2572250040 / 11264610
Packaging unit
1
Catalogue page
KS-0530
Cutting values
SW-0796

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Center cutting Yes
Coating TiAlSiN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 4 mm
D1 6 mm
F x 45° 0,05 mm
Feed fz hardened steel < 60 HRc 0,030 mm/tooth
L 54 mm
L1 8 mm
Tolerance of cutting edge diameter f7
Tolerance of shank diameter h5
Tool holding device HB parallel shank
Tooth pitch Unequal
Twist angle 42°
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
