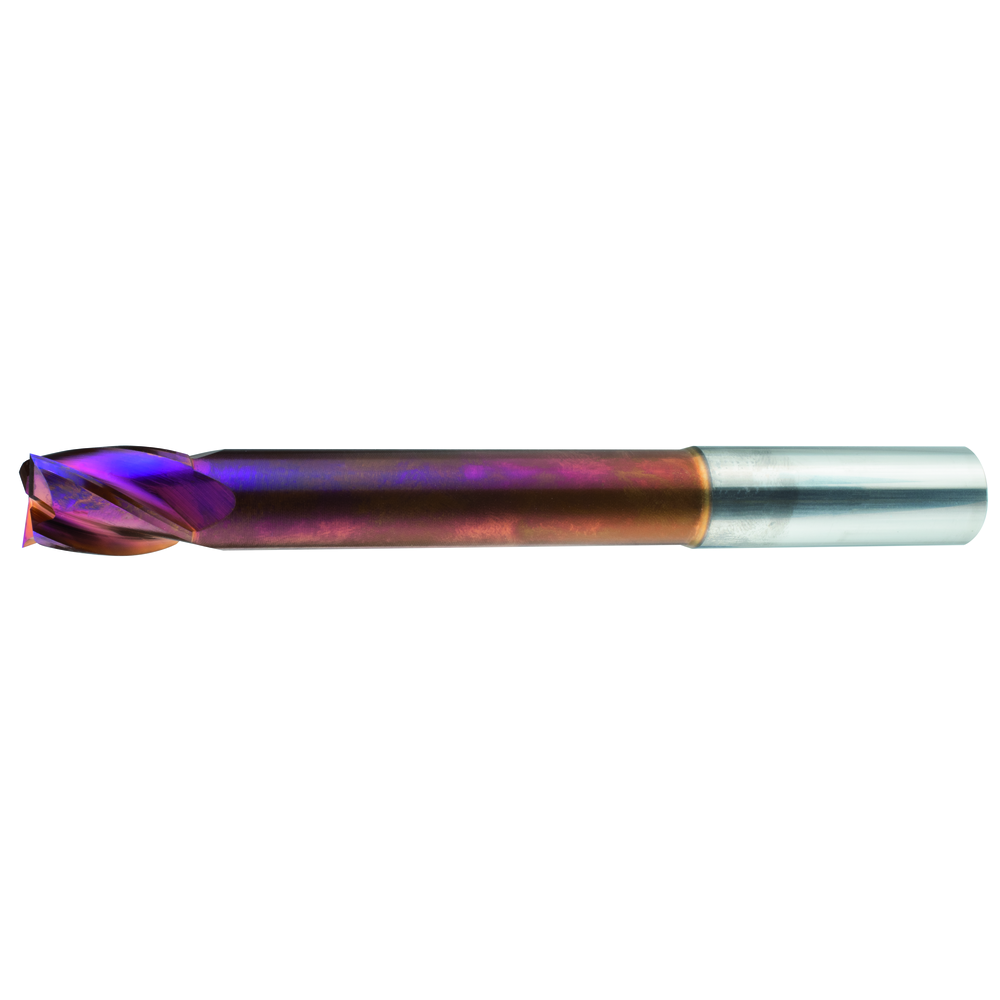

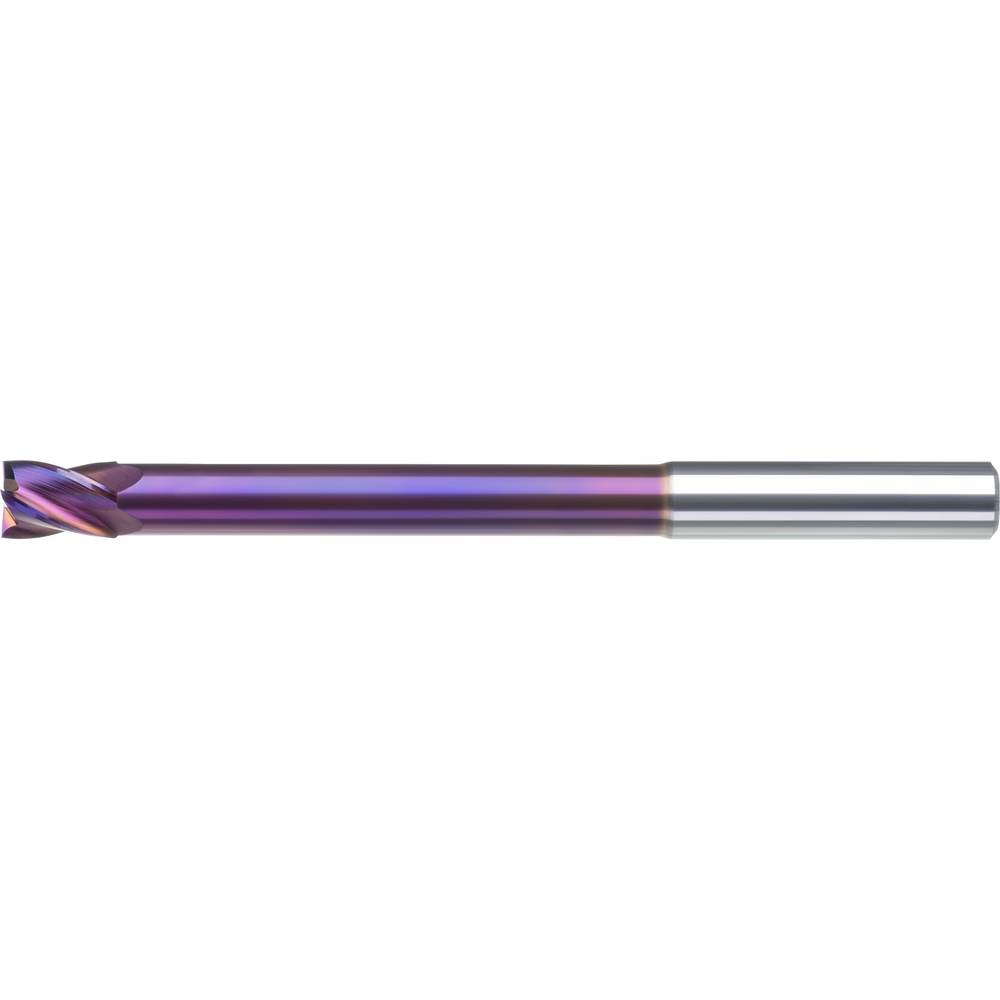

Schaftfräser VHM, ø 3x5x60x100mm Z=4 x-lang RockTec PRO

Schaftfräser VHM, ø 3x5x60x100mm Z=4 x-lang RockTec PRO
Schaftfräser VHM, ø 3x5x60x100mm Z=4 x-lang RockTec PRO Schaftfräser VHM, ø 3x5x60x100mm Z=4 x-lang RockTec PRO
Special offer
25,20 €
(63,00 € catalogue price / 60% saved)
prices excl. vat plus shipping costs

Stock status
Only 20 pieces left!
Add to shopping cart
Tool Finder
ISO H

Solid carbide end milling cutter Z4 RockTec PRO
  • For machining materials from 47 to 65 HRC
  • Optimised geometry for hard machining
  • Cutting material, ultra-fine grain solid carbide
  • State-of-the-art coating technology for reduced abrasion and extreme hardness
  • Subject to process-related colour variations in the coating.

Extra-long
Article no./ATORN no.
2572200030 / 11264601
Packaging unit
1
Catalogue page
KS-0529
Cutting values
SW-0796

Technical characteristics

Application direction milling Lining, ramping and drilling
Center cutting Yes
Coating TiAlSiN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3 mm
D1 6 mm
D3 2,8 mm
Feed fz hardened steel < 60 HRc 0,020 mm/tooth
L 100 mm
L1 5 mm
L2 60 mm
Tolerance of cutting edge diameter f7
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 40°
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
