Maschinen-Gewindebohrer M-OIL-SFT-DUPLEX HSSE-PM TiN DIN371C 50° M6 6HX

Maschinen-Gewindebohrer M-OIL-SFT-DUPLEX HSSE-PM TiN DIN371C 50° M6 6HX
Maschinen-Gewindebohrer M-OIL-SFT-DUPLEX HSSE-PM TiN DIN371C 50° M6 6HX Maschinen-Gewindebohrer M-OIL-SFT-DUPLEX HSSE-PM TiN DIN371C 50° M6 6HX
Price
57,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Ideal for ISO M and ISO S

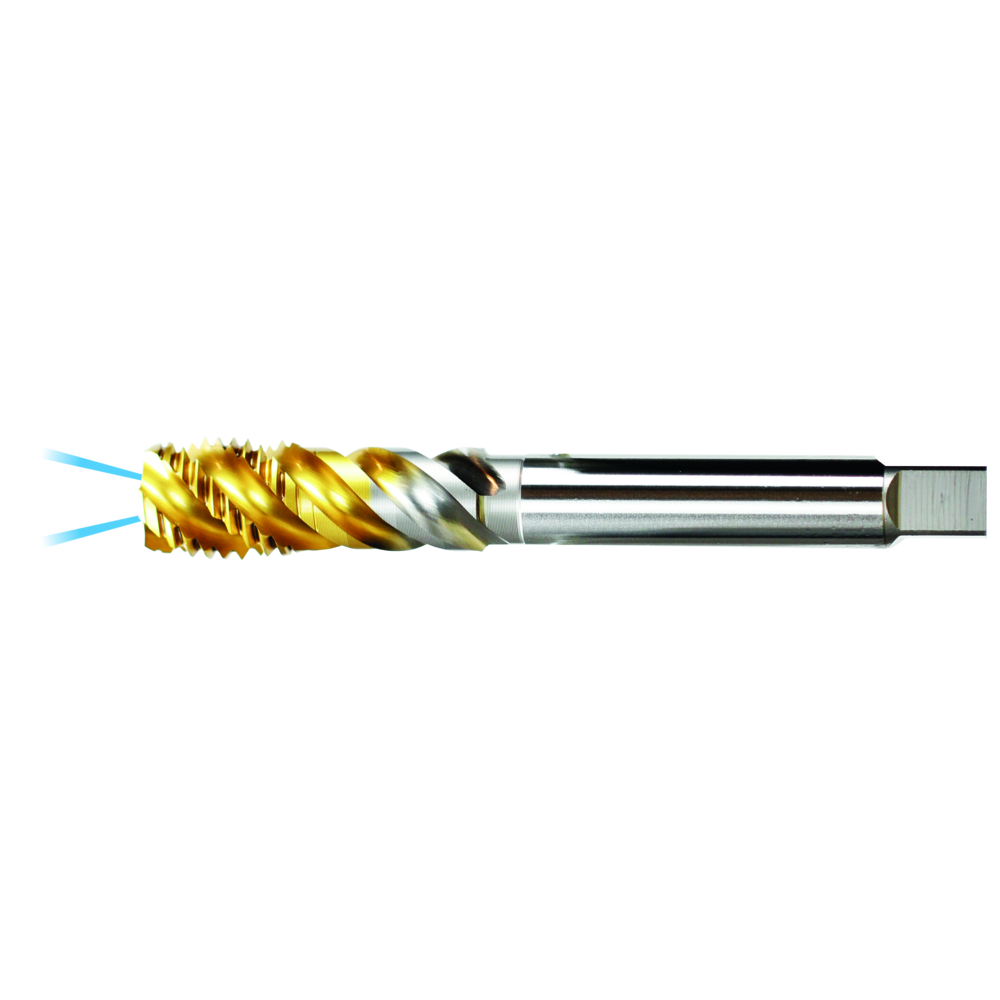

Machine tap M-OIL-SFT-DUPLEX
  • Metric ISO-6HX fine thread
  • 50° spiral-fluted
  • Form C, 2.5-thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material HSS-E-PM, TiN coating
  • For blind-hole threads
  • For materials that are difficult to machine (1.4841, 1.4404, 1.4545, 1.4542, 1.4548, Super Duplex 1.4410, Inconel 625)

Article no./ATORN no.
1339130060
Vendor Article no.
48380155
Packaging unit
1
Catalogue page
KS-0252
Cutting values
KS-0252

Technical characteristics

C 4,9
Coating TiN
Coolant supply External
Cutting material HSSE-PM
D M 6
D1 6 mm
DIN 371/376
Form/Chamfer C
L 80 mm
L1 8 mm
L2 30 mm
Pitch 1 mm
Tapping hole Ø 5 mm
Thread Metric thread
Threaded hole type Blind hole ≤ 1.5xD
Threaded hole type for blind-hole threads
Tolerance of screw taps 6HX
Twist angle 50° (rechts)

Usage characteristics

stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys
Z 3 pc.

very suitable
suitable
Catalogue page Download
Cutting values Download
