Maschinen-Gewindebohrer M-SFT-DUPLEX HSSE-PM TiN 50° DIN2184-1 UNC 1x8 2BX

Maschinen-Gewindebohrer M-SFT-DUPLEX HSSE-PM TiN 50° DIN2184-1 UNC 1x8 2BX
Maschinen-Gewindebohrer M-SFT-DUPLEX HSSE-PM TiN 50° DIN2184-1 UNC 1x8 2BX Maschinen-Gewindebohrer M-SFT-DUPLEX HSSE-PM TiN 50° DIN2184-1 UNC 1x8 2BX
Special offer
92,00 €
(230,00 € catalogue price / 60% saved)
prices excl. vat plus shipping costs

Stock status
Only 2 pieces left!
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Ideal for ISO M and ISO S

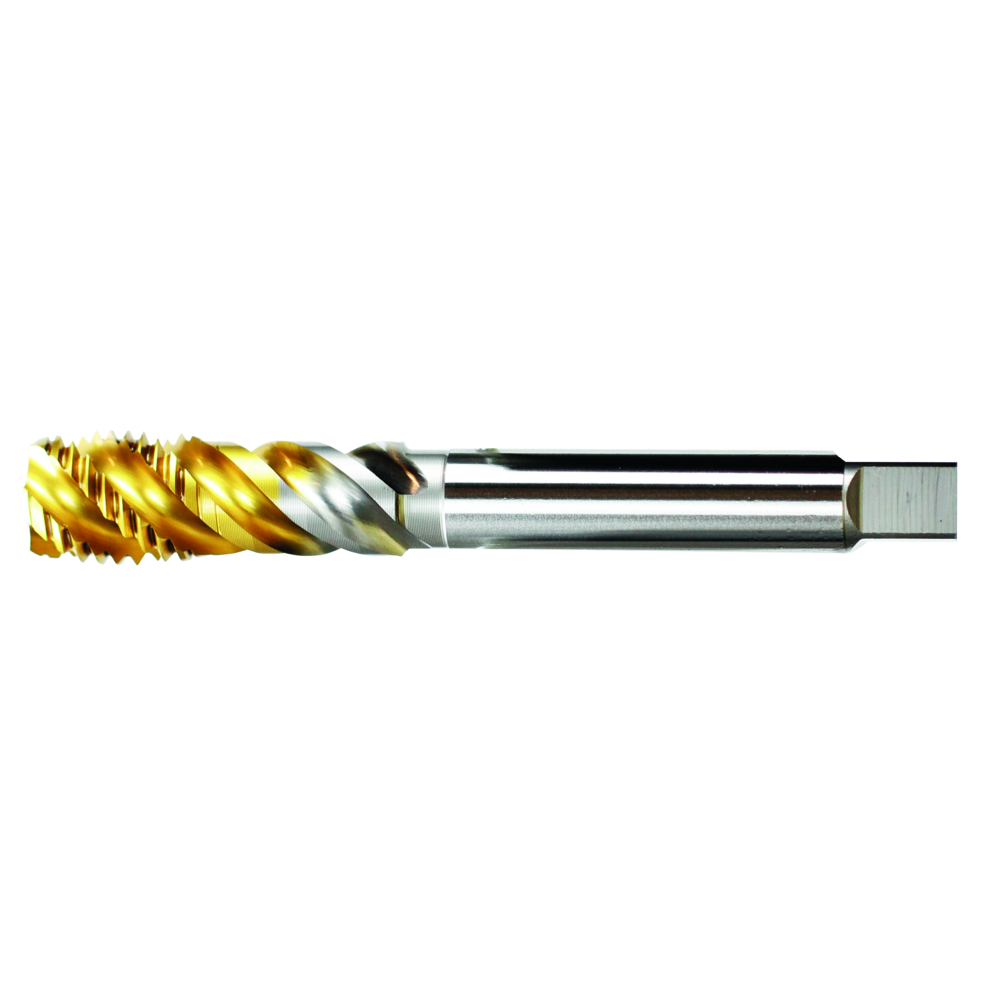

Machine tap M-SFT-DUPLEX
  • UNC thread, standard coarse thread
  • 50° spiral-fluted
  • Form C, 2.5-thread chamfer, for blind-hole threads
  • Construction dimensions similar to DIN 371 = up to 3/8'', DIN 376 = from 7/16''
  • Cutting material HSS-E-PM, TiN coating
  • For materials that are difficult to machine (1.4841, 1.4404, 1.4545, 1.4542, 1.4548, Super Duplex 1.4410, Inconel 625)

Article no./ATORN no.
1339020018
Vendor Article no.
48336538
Packaging unit
1
Catalogue page
KS-0277
Cutting values
KS-0277

Technical characteristics

C 14,5
Coating TiN
Coolant supply Extern
Cutting material HSSE-PM
D 1"
D1 18 mm
DIN 2184-2
Form/Chamfer C
L 160 mm
L1 31,8 mm
L2 - mm
Tapping hole Ø 22,25 mm
Thread UNC
Threaded hole type for blind-hole threads
Threaded hole type Grundloch ≤ 1,5xD
Tolerance of screw taps 2BX
Tool holding device Straight with driving plane, DIN 1835 B
Twist angle 50° (rechts)

Usage characteristics

stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
Catalogue page Download
Cutting values Download
