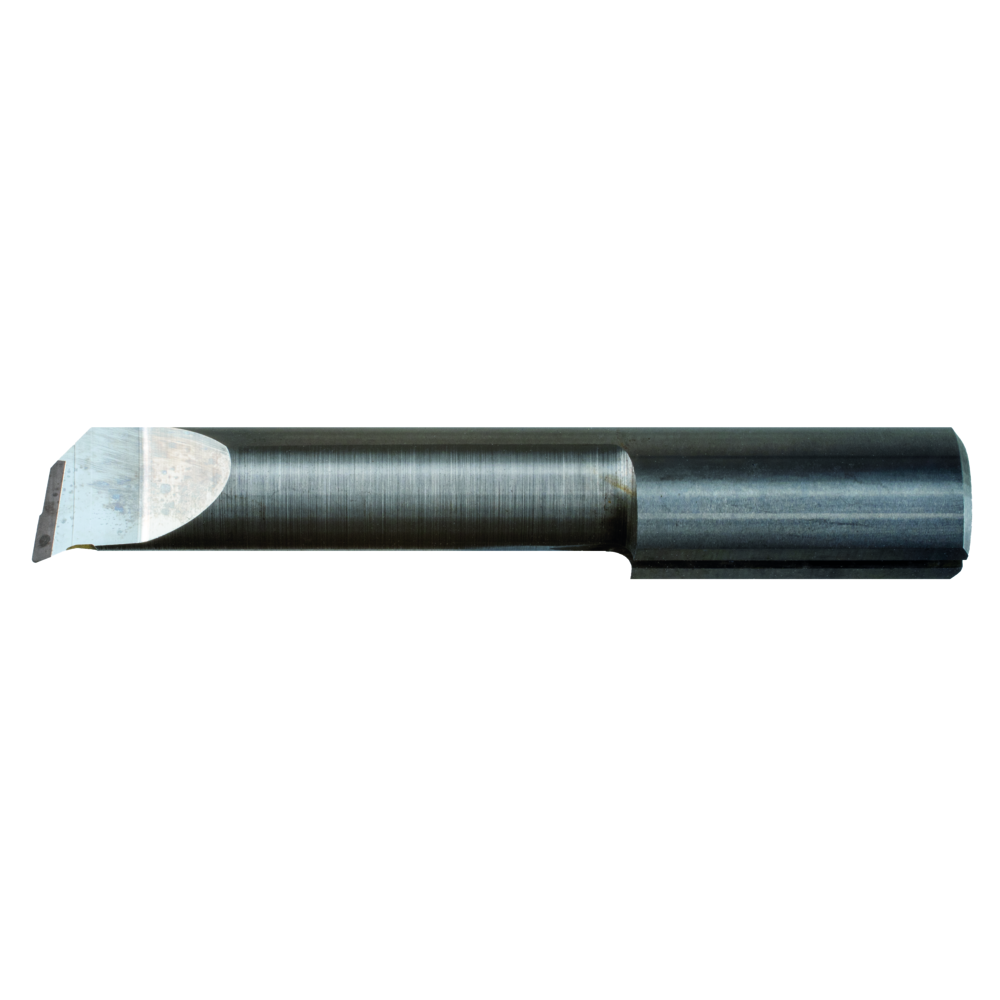

Schneideinsatz R050.1-5 ø4, L1=4.5, R=0.05 tmax=0.1, Dmin=1.0 CBN

Schneideinsatz R050.1-5 ø4, L1=4.5, R=0.05 tmax=0.1, Dmin=1.0 CBN
Schneideinsatz R050.1-5 ø4, L1=4.5, R=0.05 tmax=0.1, Dmin=1.0 CBN Schneideinsatz R050.1-5 ø4, L1=4.5, R=0.05 tmax=0.1, Dmin=1.0 CBN
Price
99,60 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
for hard materials

Cutting inserts mini-børe CBN
  • Bore machining from Ø 1 mm
  • Boring and copying
  • Cylindrical shank and lateral clamping surface
  • Right-hand versions
  • Cutting material: CBN
  • Usable up to 70 HRC
  • Use without cooling or using continuous cooling emulsion

Internal turning
  • From bore diameter 1 mm

Article no./ATORN no.
3045660001
Vendor Article no.
R050.1-5 CBN
Packaging unit
1
Catalogue page
KS-1040
Cutting values
SW-1108

Technical characteristics

Cutting data Cutting angle Information - yes
D min. 1,0 mm
D1 4,0 mm
Design CBN right-hand
Designation R 050.1-5
F - mm
L 21,5 mm
L1 4,5 mm
R 0,05 mm
suitable for 645...
t max. 0,1 mm
Catalogue page Download
Cutting values Download
