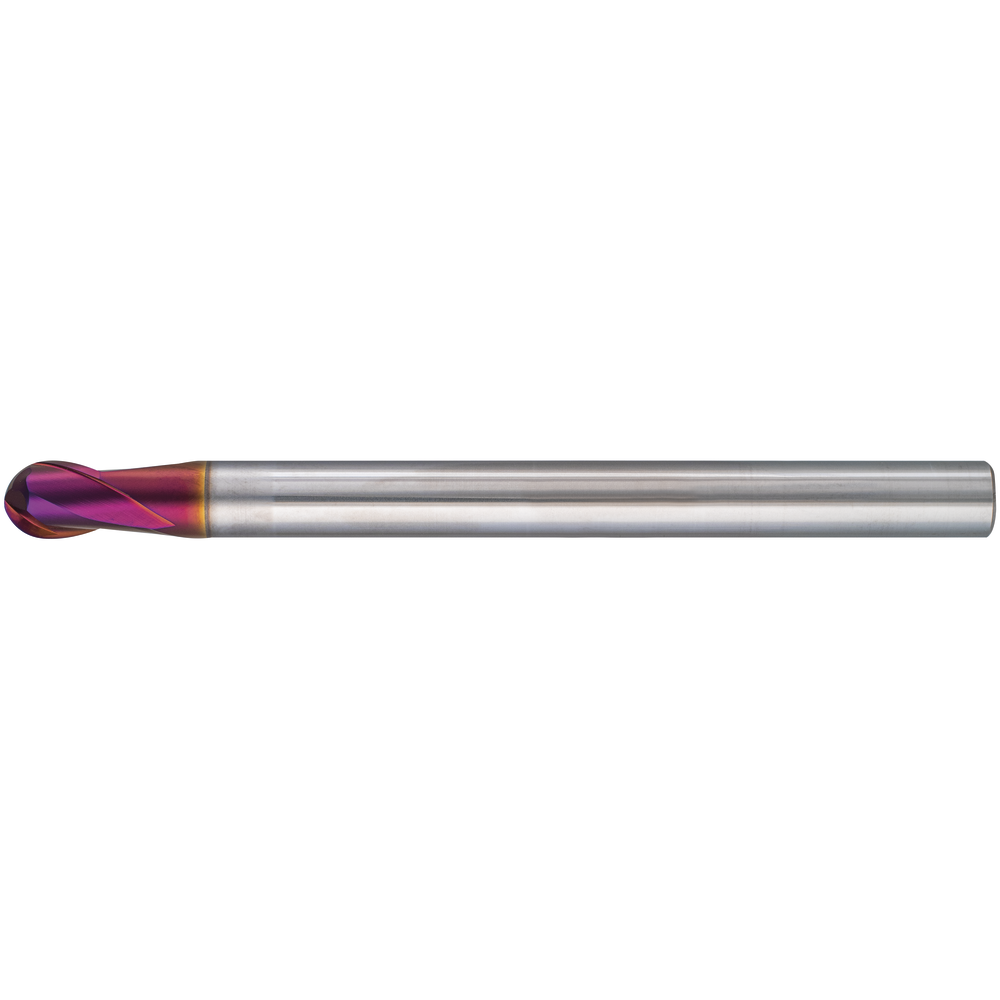

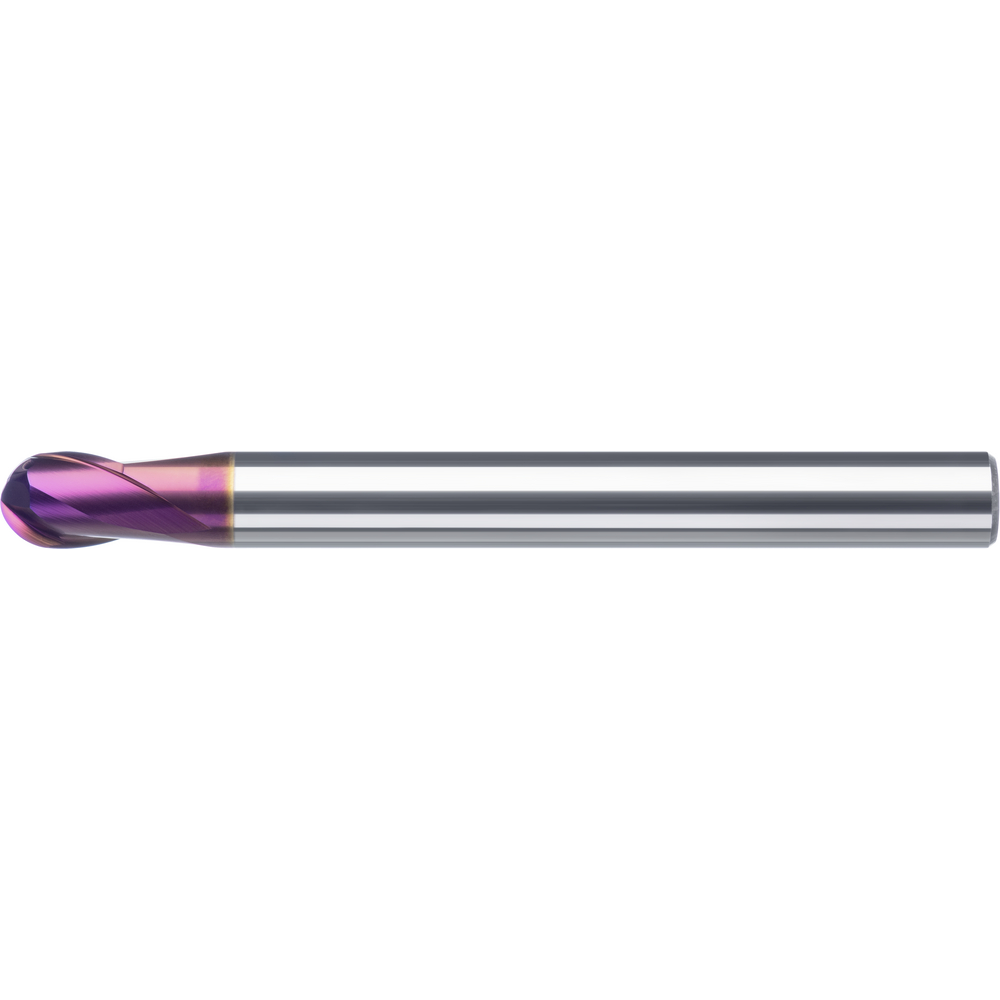

Radiusfräser VHM 2x2,5x20x100mm, Z=2 x-lang, RockTec PRO

Radiusfräser VHM 2x2,5x20x100mm, Z=2 x-lang, RockTec PRO
Radiusfräser VHM 2x2,5x20x100mm, Z=2 x-lang, RockTec PRO Radiusfräser VHM 2x2,5x20x100mm, Z=2 x-lang, RockTec PRO
Special offer
35,60 €
(89,00 € catalogue price / 60% saved)
prices excl. vat plus shipping costs

Stock status
Only 15 pieces left!
Add to shopping cart
Tool Finder
ISO H

Radius milling cutter RockTec PRO
  • For machining materials from 47 to 65 HRC
  • Optimised geometry for hard machining
  • Cutting material: ultra micro-grain SC
  • state-of-the-art coating technology for reduced wear and extreme hardness
  • Subject to process-related colour variations in the coating.

Extra-long
Article no./ATORN no.
2571160020 / 11264574
Packaging unit
1
Catalogue page
KS-0546
Cutting values
SW-0790

Technical characteristics

Application direction milling Lining, ramping and drilling
Center cutting Yes
Coating TiAlSiN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 2,0 mm
D1 6 mm
D3 1,85 mm
Feed fz hardened steel < 60 HRc 0,016 mm/tooth
L 100 mm
L1 2,5 mm
L2 20 mm
R 1,0 mm
Tolerance of cutting edge diameter f7
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 30°
Z 2 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
