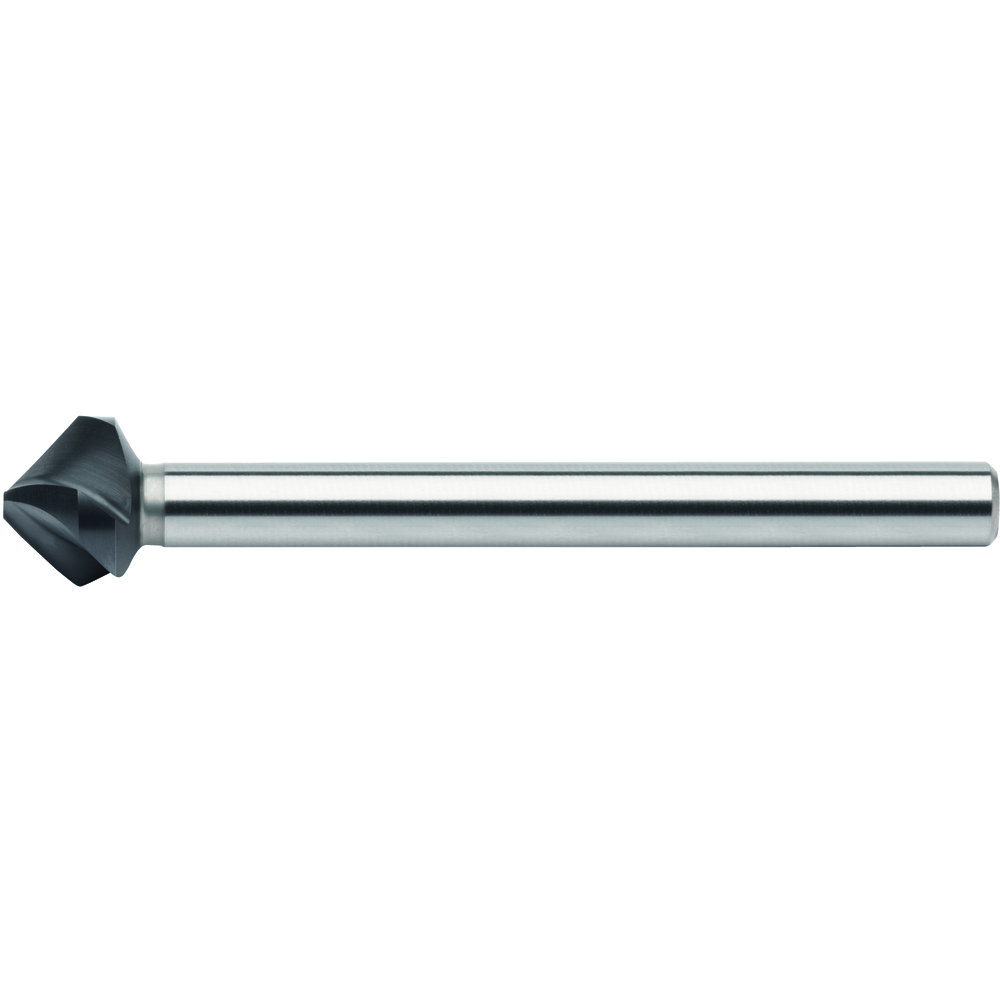

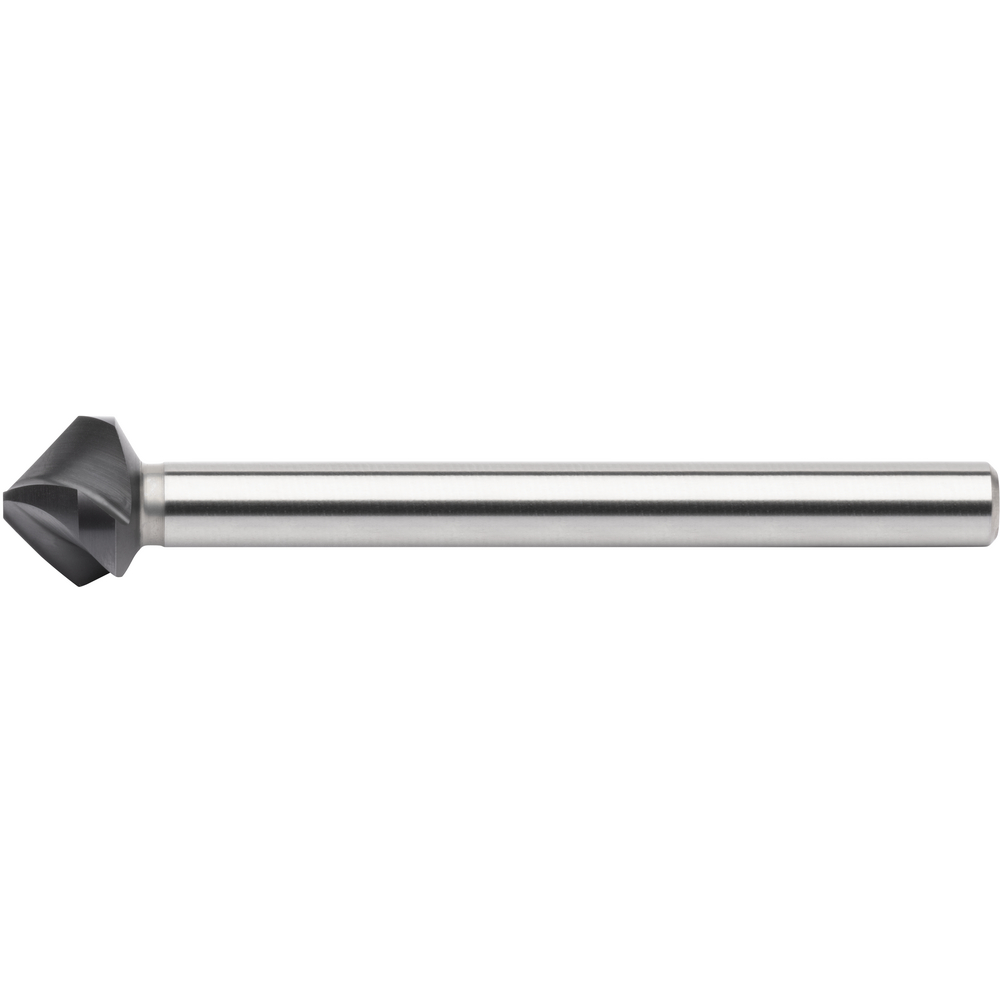

90° countersink, 6.3 mm long spiralled

90° countersink, 6.3 mm long spiralled
90° countersink, 6.3 mm long spiralled 90° countersink, 6.3 mm long spiralled 90° countersink, 6.3 mm long spiralled 90° countersink, 6.3 mm long spiralled
Price:
34,60 €
(51,00 € catalogue price / 32% saved)
valid until: 30.06.2024
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Spiralised cutting edges

Taper and deburring countersinks, spiralled
  • Universal geometry with 3 spiralled cutting edges and unequal pitch
  • Cutting material HSSE, TiAlN-coated
  • Low vibration and smooth running
  • Clearly reduced feed and radial forces
  • Round and chatter-free countersinks
  • Wide range of applications
  • Versions:
    150272 - with straight shank
    150273 - with 3 clamping surfaces on the shank to prevent slipping in the drill chuck (optimal for hand drills)
    150274 - with extended shank to bridge interfering contours

Long version
Article no./ATORN no.
1502740063 / 10487524
Packaging unit
1
Catalogue page
KS-0310
Cutting values
SW-0403

Technical characteristics

Angle of the tip - S 90 °
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material HSSE
D 6,3 mm
D1 5 mm
DIN Non-DIN
Feed f steel < 1000 N/mm² 0,06 mm/rev
L 104 mm
Tip diameter 1,5 mm
Tool holding device Cylinder shank
Z 3 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
titanium alloys

very suitable
suitable
