Machine tap M-NRT HSSE-PM TiN DIN2189C (BSP) G1/2x14

Machine tap M-NRT HSSE-PM TiN DIN2189C (BSP) G1/2x14
Machine tap M-NRT HSSE-PM TiN DIN2189C (BSP) G1/2x14 Machine tap M-NRT HSSE-PM TiN DIN2189C (BSP) G1/2x14
Price:
204,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

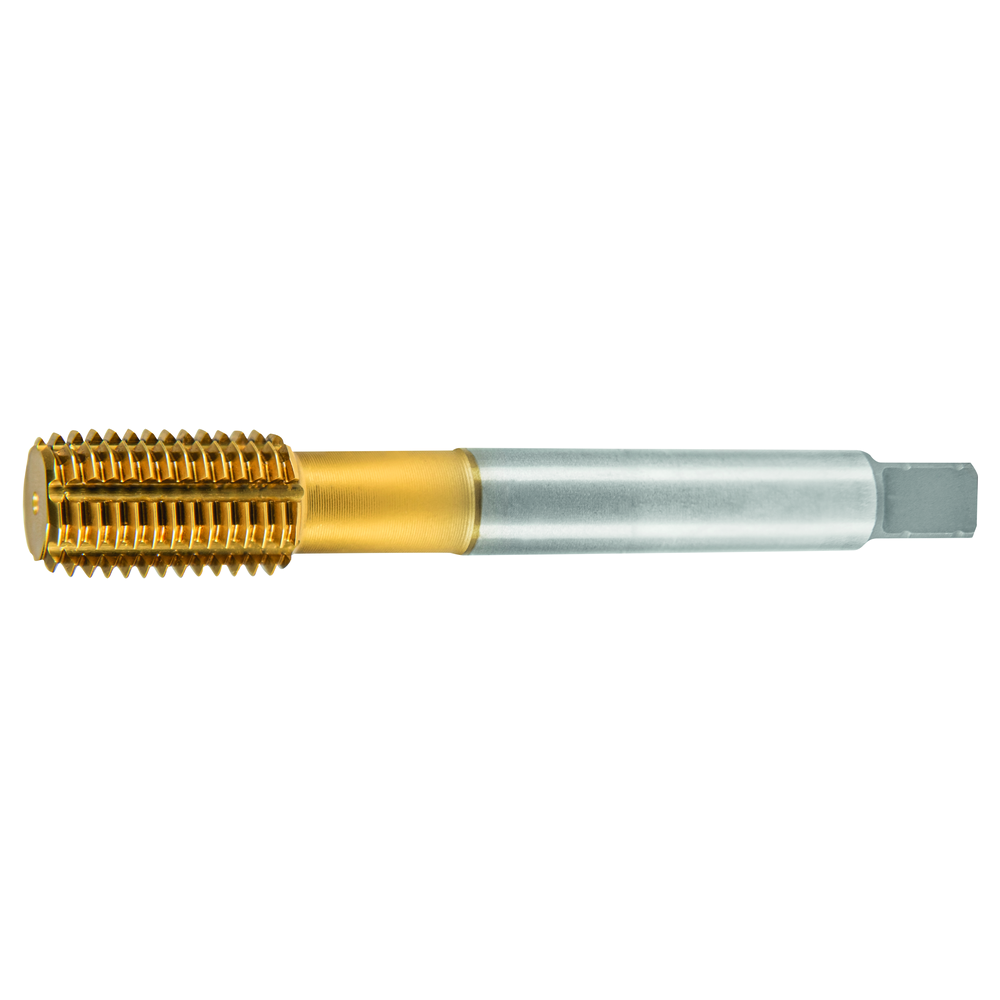

Machine forming tap M-NRT
  • Whitworth pipe thread, 55°
  • DIN 2189
  • Type C, 2-3 thread chamfer
  • With oil grooves
  • For blind bore and through-hole threads
  • HSSE-PM TiN cutting material
  • For general steels, stainless steel and aluminium alloys

Article no./ATORN no.
1333460012
Vendor Article no.
EP0203841
Packaging unit
1
Catalogue page
KS-0287
Cutting values
SW-0398

Technical characteristics

C 12
Coating TiN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
D G1/2"
D1 16 mm
Form/Chamfer C
L 125 mm
L1 25 mm
Max. thread depth 2,5xD
Pitch 14 TPI
Tapping hole Ø 20 mm
Thread G
Thread angle 55 °
Threaded hole type Clearance/stud hole
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²

very suitable
suitable
Catalogue page Download
Cutting values Download
