Maschinen-Gewindeformer M-NRT HSSE-PM TiN DIN2174E M2x0,4 6HX

Maschinen-Gewindeformer M-NRT HSSE-PM TiN DIN2174E M2x0,4 6HX
Maschinen-Gewindeformer M-NRT HSSE-PM TiN DIN2174E M2x0,4 6HX Maschinen-Gewindeformer M-NRT HSSE-PM TiN DIN2174E M2x0,4 6HX
Price:
65,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

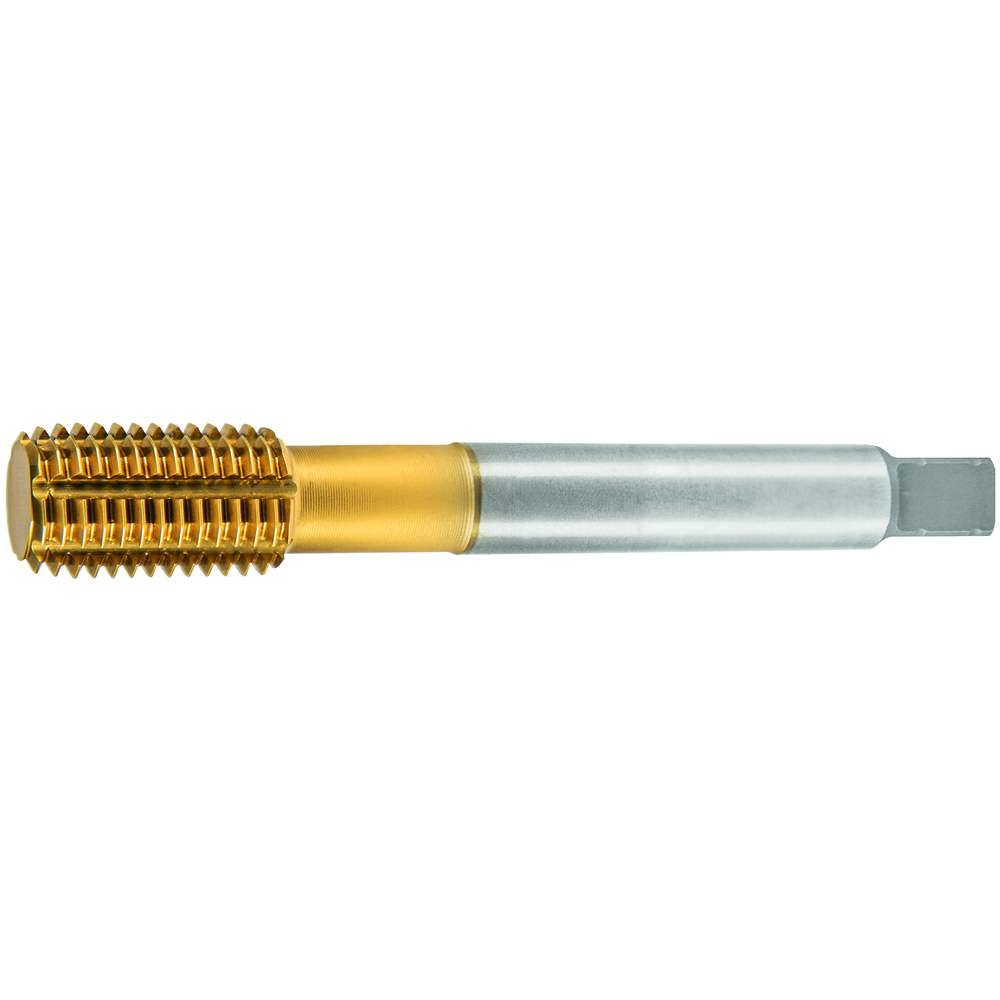

Machine forming tap M-NRT Form E
  • ISO 6HX metric thread
  • Type E, 1.5-thread chamfer
  • For blind bore and through-hole threads
  • HSSE-PM TiN cutting material
  • For steels, stainless steel and aluminium alloys

Article no./ATORN no.
1333430020
Vendor Article no.
EP0205125
Packaging unit
1
Catalogue page

Technical characteristics

C 2,1
Coating TiN
Coolant supply No
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
D M2
D1 2,8 mm
DIN 2174
Form/Chamfer E
L 45 mm
L1 9 mm
L2 - mm
Max. thread depth 2,5xD
Pitch 0,4 mm
Tapping hole Ø 1,82 mm
Thread Metric thread
Thread angle 60 °
Threaded hole type Clearance/stud hole
Tolerance of screw taps 6HX
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²

very suitable
suitable
