Maschinen-Gewindeformer M-NRT HSSE-PM TiN DIN2174C M2x0,4 6GX

Maschinen-Gewindeformer M-NRT HSSE-PM TiN DIN2174C M2x0,4 6GX
Maschinen-Gewindeformer M-NRT HSSE-PM TiN DIN2174C M2x0,4 6GX Maschinen-Gewindeformer M-NRT HSSE-PM TiN DIN2174C M2x0,4 6GX
Price:
71,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder

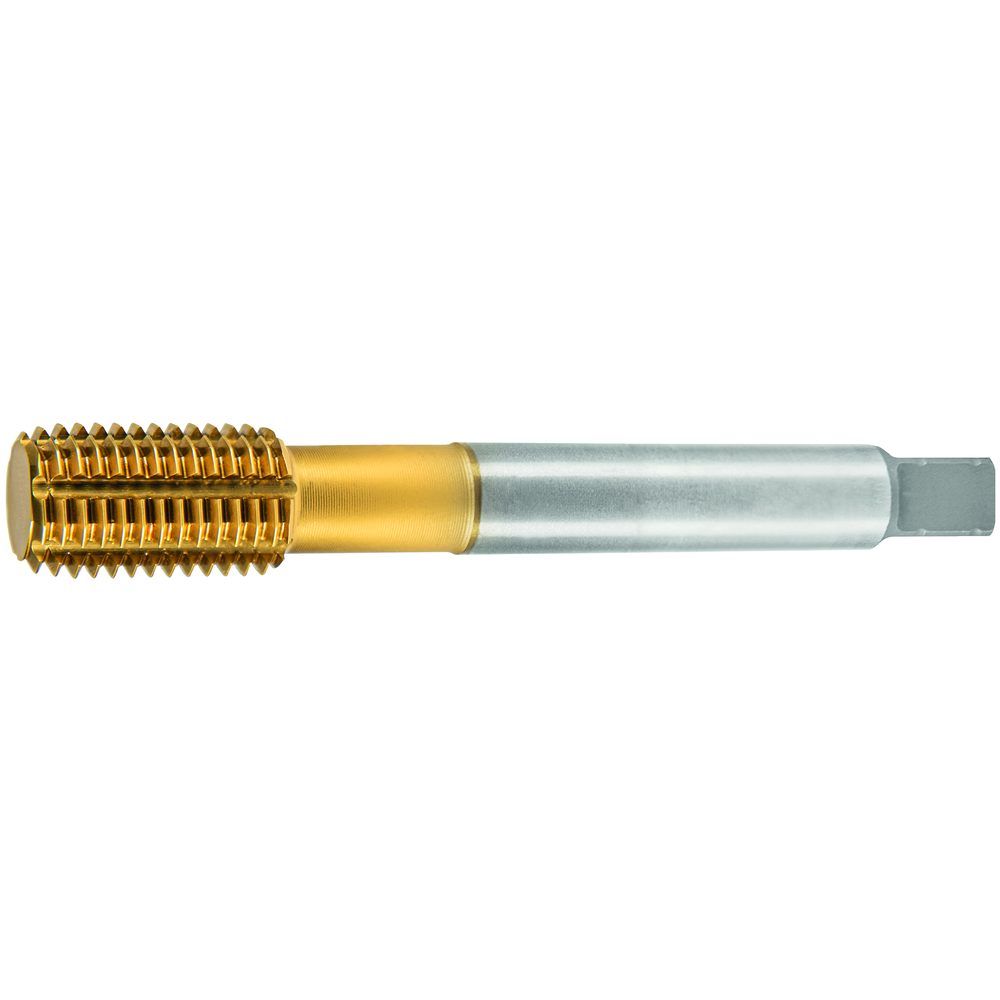

Machine forming tap M-NRT 6GX
  • ISO 6GX metric thread
  • Type C, 2-thread chamfer
  • For blind bore and through-hole threads
  • HSSE-PM TiN cutting material
  • For steels, stainless steel and aluminium alloys

Article no./ATORN no.
1333420020
Vendor Article no.
EP0204125
Packaging unit
1
Catalogue page

Technical characteristics

C 2,1
Coating TiN
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
D M2
D1 2,8 mm
DIN 2174
Form/Chamfer C
L 45 mm
L1 9 mm
L2 - mm
Max. thread depth 2,5xD
Pitch 0,4 mm
Tapping hole Ø 1,82 mm
Thread Metrisches Gewinde
Thread angle 60 °
Threaded hole type Clearance/stud hole
Tolerance of screw taps ISO 3X (6GX)
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²

very suitable
suitable
