Maschinen-Gewindeformer M-OIL-NRT HSSE-PM TiN DIN2174C M5x0,8 6HX mit IK

Maschinen-Gewindeformer M-OIL-NRT HSSE-PM TiN DIN2174C M5x0,8 6HX mit IK
Maschinen-Gewindeformer M-OIL-NRT HSSE-PM TiN DIN2174C M5x0,8 6HX mit IK Maschinen-Gewindeformer M-OIL-NRT HSSE-PM TiN DIN2174C M5x0,8 6HX mit IK
Price:
93,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
radial coolant bore outlet

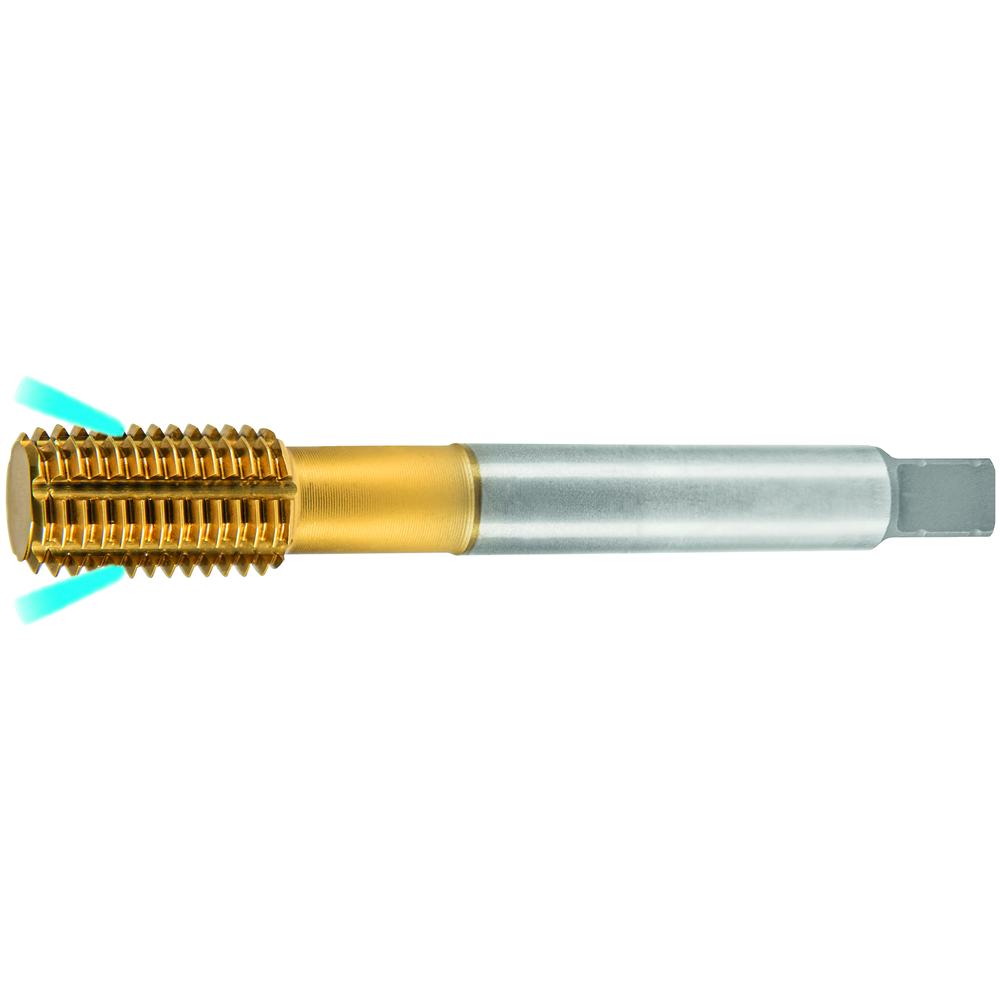

Machine forming tap M-OIL-NRT
  • ISO 6HX metric thread
  • Type C, 2-thread chamfer
  • For blind bore and through-hole threads
  • HSSE-PM TiN cutting material
  • For steels, stainless steel and aluminium alloys

Article no./ATORN no.
1333410050
Vendor Article no.
EP0206149
Packaging unit
1
Catalogue page

Technical characteristics

C 4,9
Coating TiN
Coolant supply Internal radial
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
D M5
D1 6 mm
DIN 2174
Form/Chamfer C
L 70 mm
L1 14 mm
L2 25 mm
Max. thread depth 2,5xD
Pitch 0,8 mm
Tapping hole Ø 4,65 mm
Thread Metric thread
Thread angle 60 °
Threaded hole type Clearance/stud hole
Tolerance of screw taps 6HX
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²

very suitable
suitable
