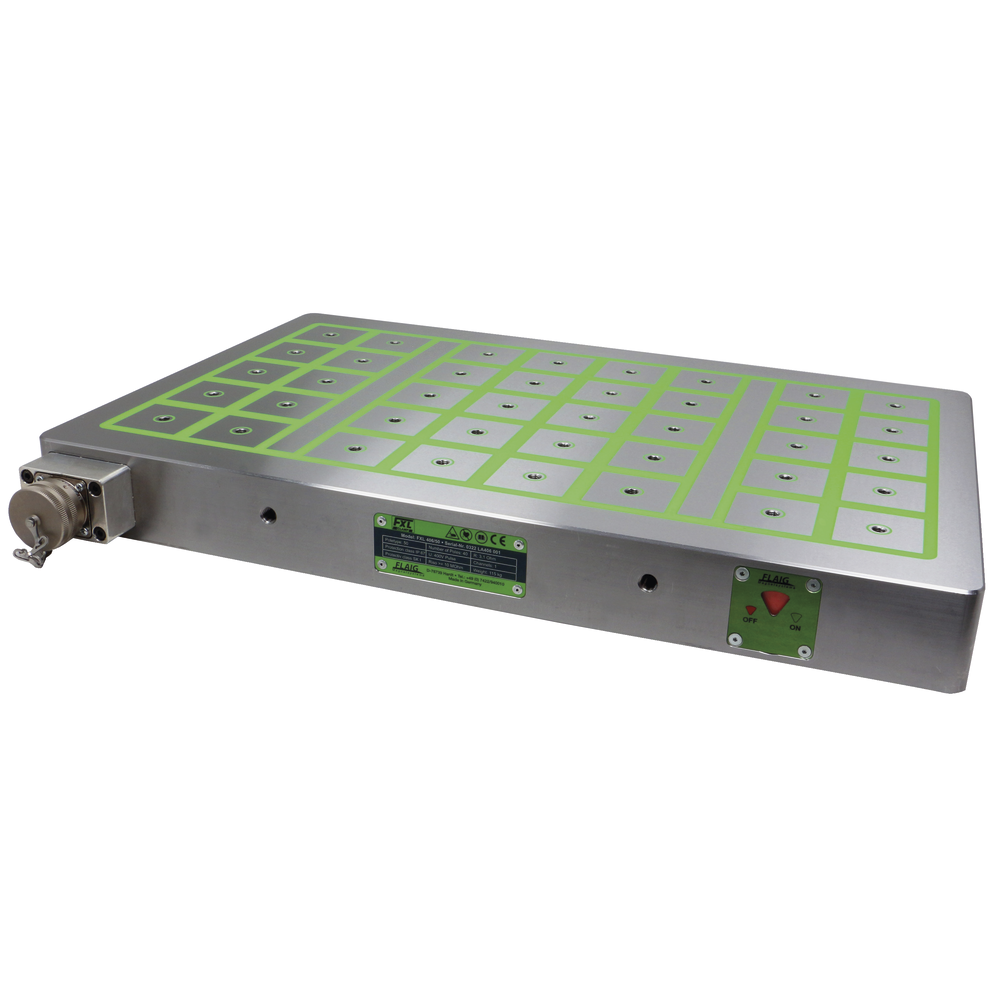

Electro-permanent magnetic clamping plates FXL-50

• With switching status display, tells the user about the switching status of the clamping plate even when the cable is disconnected and guarantees increased safety.
• Plug-in connection with closed cover fulfils protection class IP67
• All poles with M8 tool steel insert and cast with high-performance resin in the extra-sturdy monoblock frame
• Low-vibration machining and clamping of workpieces
• Quick and safe clamping of uneven parts
• Same holding force in all directions with square pole technology
• Minimum set-up times
• Drilling pattern on the back for zero-point clamping systems possible
• For workpieces from approx. 100 x 100 mm
• Penetration depth of the magnetic field approx. 12 mm
• Holding force is 160 N/cm² = 4 kN per pole
• Supplied with control unit
• Magnetisation in 4 holding force levels possible with control unit
• Other pole sizes and dimensions available on request

Model FXL incl. control unit
