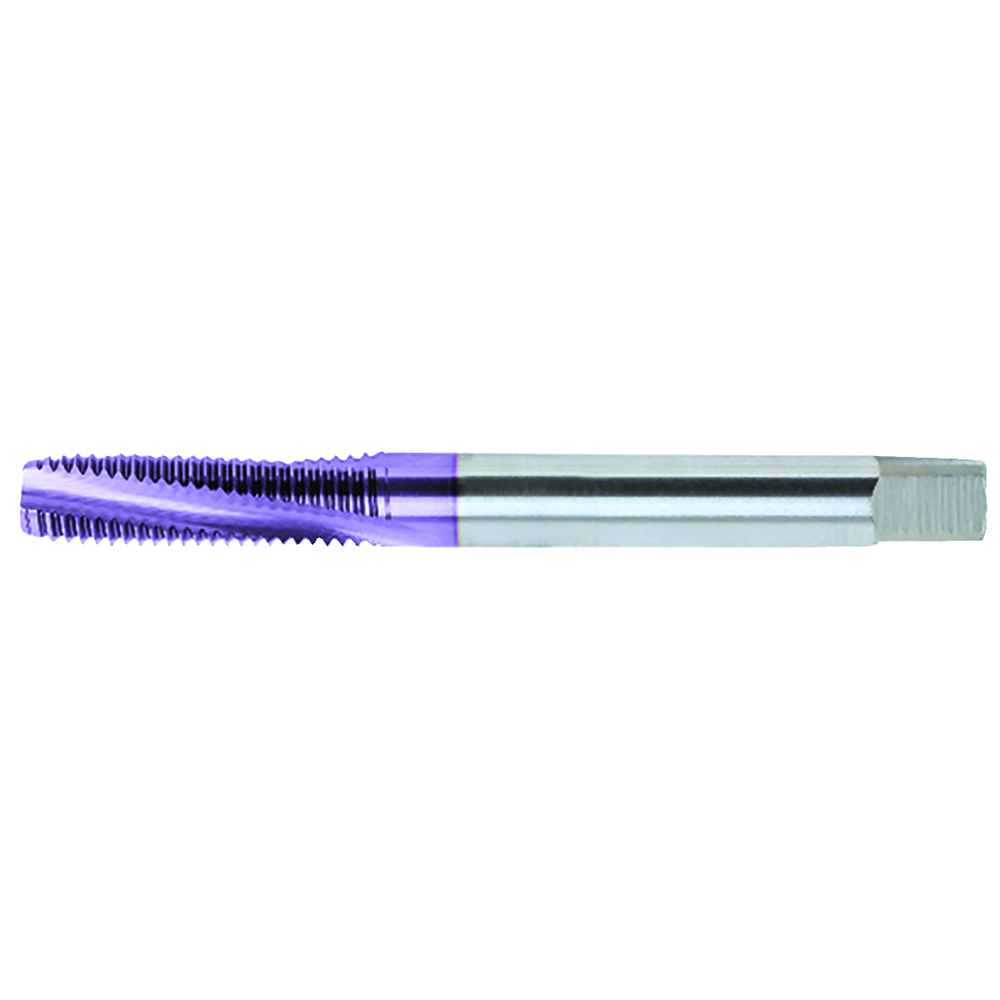

Maschinen-Gewindebohrer V-TI-SFT HSS-E PM DIN371C, M3 Grundloch 10° TiCN

Maschinen-Gewindebohrer V-TI-SFT HSS-E PM DIN371C, M3 Grundloch 10° TiCN
Maschinen-Gewindebohrer V-TI-SFT HSS-E PM DIN371C, M3 Grundloch 10° TiCN Maschinen-Gewindebohrer V-TI-SFT HSS-E PM DIN371C, M3 Grundloch 10° TiCN Maschinen-Gewindebohrer V-TI-SFT HSS-E PM DIN371C, M3 Grundloch 10° TiCN
Price:
47,75 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Machine thread tap V-TI-SFT
  • ISO 6H metric thread
  • 10° spiral-fluted
  • Type B, 2.5 thread chamfer
  • Constructional dimensions DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material HSS-E-PM, V-coated (TiCN)
  • For blind-hole threads
  • For titanium alloys

Article no./ATORN no.
1331950030
Vendor Article no.
48011138
Packaging unit
1
Catalogue page
KS-0263
Cutting values
SW-0398

Technical characteristics

C 2,7
C 2,7
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
Cutting material HSSE-PM
D M 3
D M 3
D1 3,5 mm
D1 3,5 mm
DIN 371
DIN 371
Form/Chamfer C
Form/Chamfer C
L 56 mm
L 56 mm
L1 - mm
L1 - mm
L2 11 mm
L2 11 mm
Max. thread depth 2xD
Max. thread depth 2xD
Pitch 0,5 mm
Pitch 0,5 mm
Surface TiCN
Surface TiCN
Tapping hole Ø 2,5 mm
Tapping hole Ø 2,5 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Stud hole
Threaded hole type Stud hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Twist angle 10°
Twist angle 10°

Usage characteristics

titanium alloys
titanium alloys

very suitable
suitable
