Easy Point mechanical zero-point clamping system

• Repeatability < 0.005 mm
• Retention force up to 50 kN
• Process reliability with mechanical safety lock
• Safe from chips and dirt thanks to open spaces on the module
• Wide and solid clamping surfaces for high stability and low vibrations
• Precise indexing via 4 grooves with 8 mm width

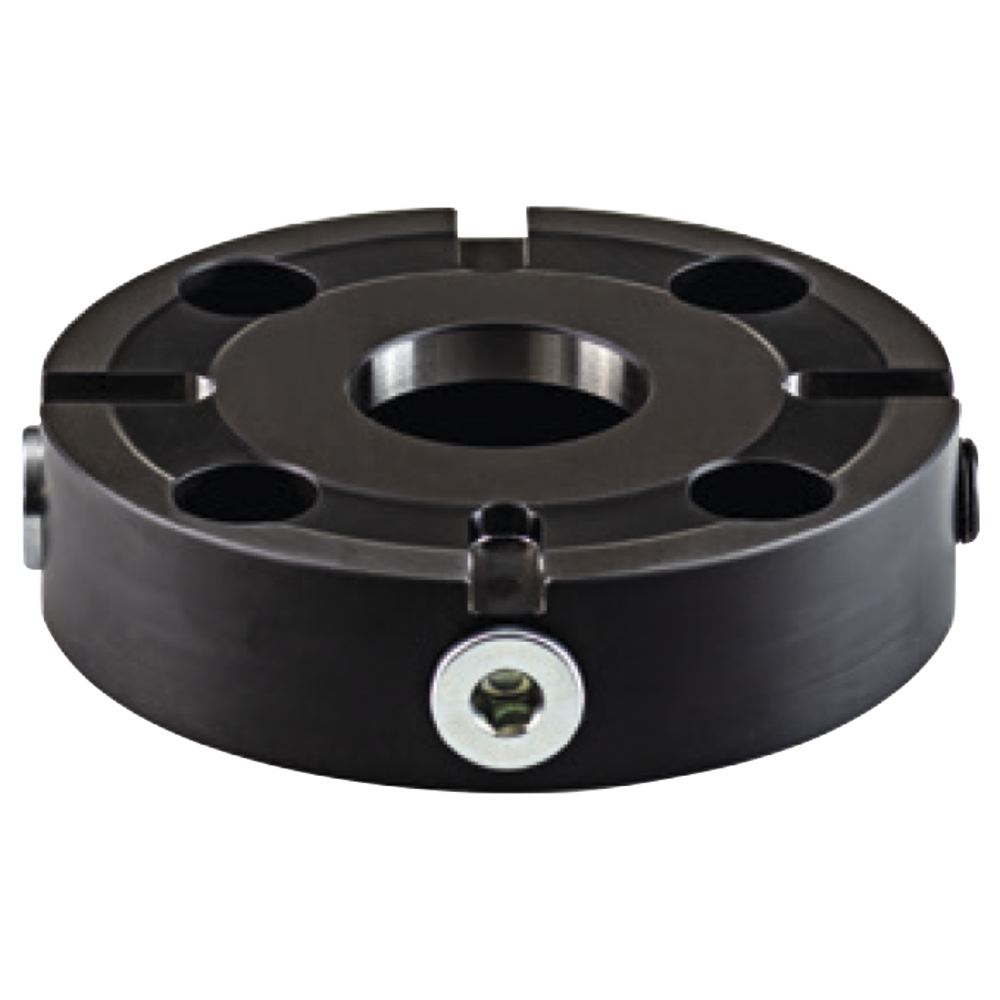

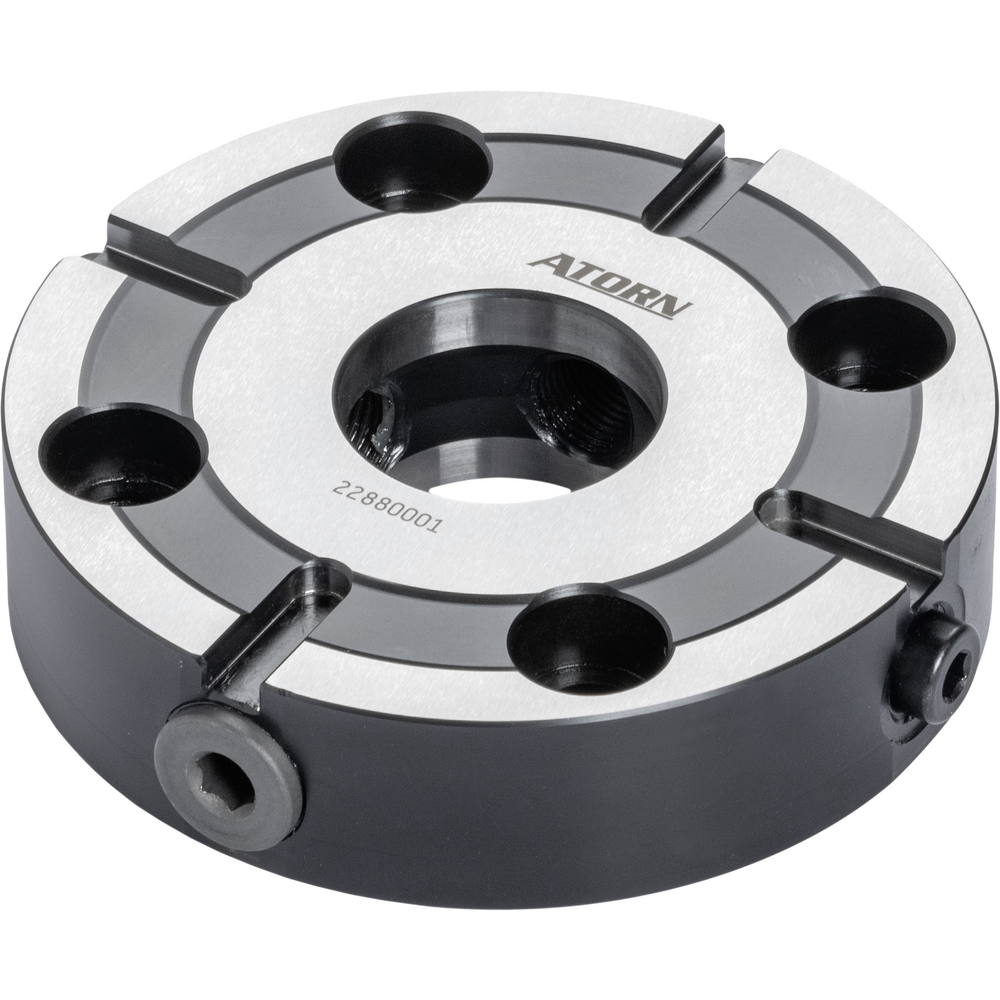

Single clamping module
