ap max.
8.5 mm
Application type of indexable insert
Schlichtbearbeitung;Mittlere Bearbeitung;Schruppbearbeitung
Carbide type area ISO
0,12-0,2 mm/U
Carbide type area ISO
P;K;N;S
Carbide type ISO
P05;P15;K05;K15;N05;N15;S05;S15
Clearance angle of indexable insert ISO
D
Cutting material
VHM
D1
2.8 mm
Harmonized System Code
82090020
Indexable insert type
X
Indexable insert type ISO
0,5-8,5 mm
Indexable insert type ISO
0.08 mm/rev
Indexable insert type ISO
0.1 mm/rev
Indexable insert type ISO
0.12 mm/rev
Indexable insert type ISO
0.2 mm/rev
Indexable insert type ISO
0.5 mm
Indexable insert type ISO
X
Inner circle diameter
9.6 mm
ISO code
Stahl;Nichteisenmetall;Guss;Sonderlegierung
ISO designation

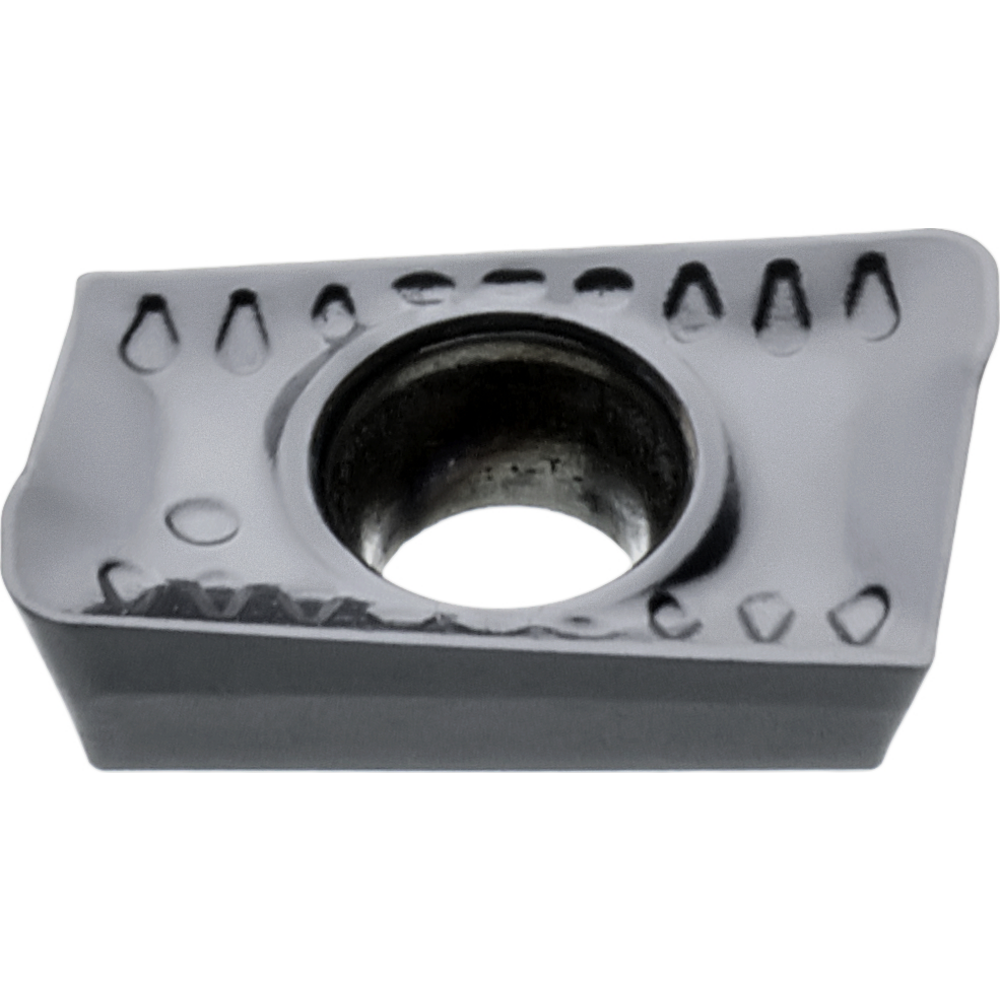

ADHX 090304 ER
ISO K
ISO N
ISO P
ISO S
ISO standard
ADHX
L1
9.6 mm
Max. Vc in cast iron
280 m/min
Max. Vc in cast iron
8.5 mm
Max. Vc in non-ferrous metals
400 m/min
Max. Vc in special alloys
0.18 mm/rev
Max. Vc in special alloys
80 m/min
Max. Vc in steel
250 m/min
Min. Vc in cast iron
0.5 mm
Min. Vc in cast iron
140 m/min
Min. Vc in cast iron
8.5 mm
Min. Vc in non-ferrous metals
0.1 mm/rev
Min. Vc in non-ferrous metals
200 m/min
Min. Vc in special alloy
0.06 mm/rev
Min. Vc in special alloy
20 m/min
Min. Vc in special alloy
8.5 mm
Min. Vc in steel
0.06 mm/rev
Min. Vc in steel
140 m/min
Min. Vc in steel
8.5 mm
Quality
HC4410
R
0.4 mm
S
3.1 mm
Shape of indexable insert ISO
A
Surface
Beschichtet
Tolerance class of indexable insert ISO
H
Vc ISO N Al/non-ferrous
0,06-0,08 mm/U
Vc ISO N Al/non-ferrous
0,06-0,1 mm/U
Vc ISO N Al/non-ferrous
0,1-0,18 mm/U
Vc ISO N Al/non-ferrous
0,5-8,5 mm
Vc ISO S special alloys
0,5-8,5 mm
WEEE (taking back waste electrical and electronic equipment)
0 - nicht zutreffend
Z
2 pc.
