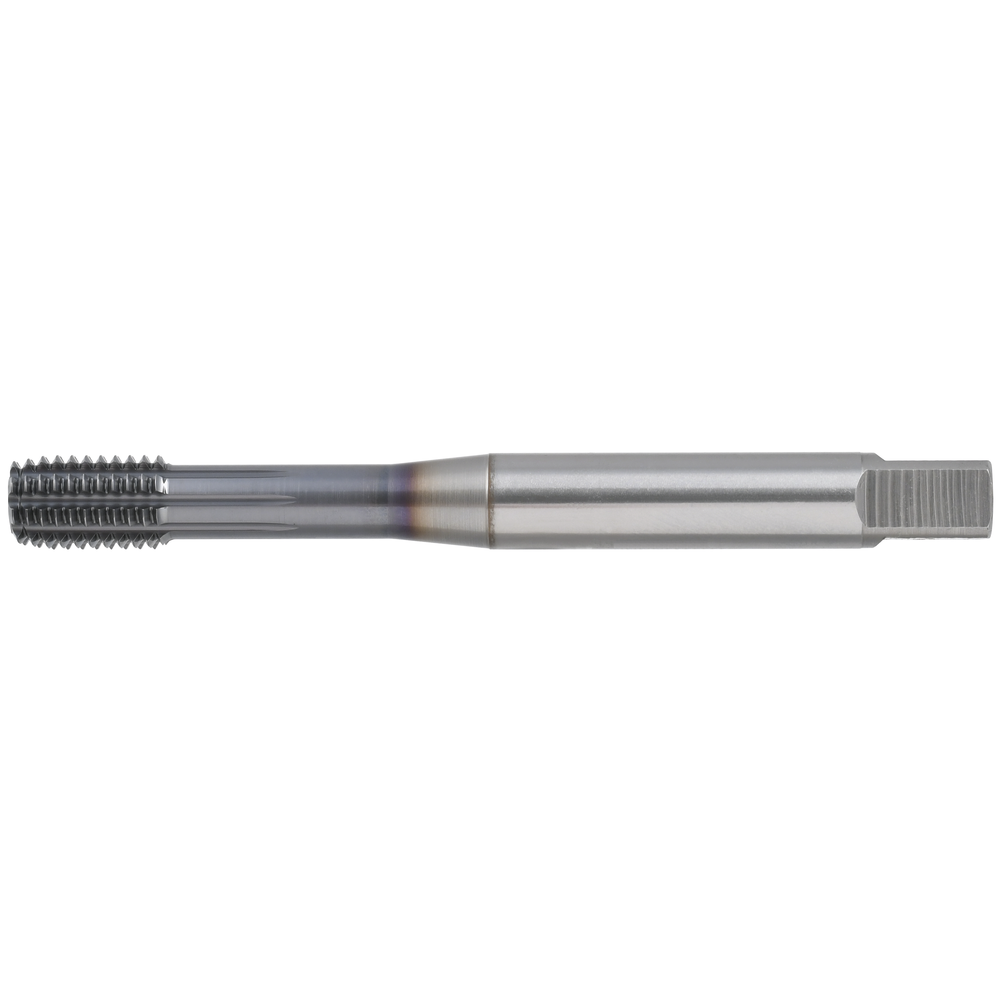

Forming tap HSS-E S-OIL-XPF DIN2174C M5 6HX with internal cooling

Forming tap HSS-E S-OIL-XPF DIN2174C M5 6HX with internal cooling
Forming tap HSS-E S-OIL-XPF DIN2174C M5 6HX with internal cooling Forming tap HSS-E S-OIL-XPF DIN2174C M5 6HX with internal cooling
Price:
78,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

S-XPF and S-OIL-XPF machine forming taps
  • Metric ISO 6HX thread
  • ISO 2/4HX where = M1.4
  • Form C, 2.5-thread chamfer
  • With oil grooves = M3
  • 133925.... with radial coolant outlet

S-XPF and S-OIL-XPF machine forming taps
  • Metric ISO 6HX thread
  • ISO 2/4HX where ≤ M1.4
  • Form C, 2.5-thread chamfer
  • With oil grooves ≥ M3
  • 133925.... with radial coolant outlet

Article no./ATORN no.
1339250050
Vendor Article no.
48042149
Packaging unit
1
Catalogue page
KS-0283
Cutting values
SW-0398

Technical characteristics

C 4,9 mm
C 4,9 mm
Coating TiCN
Coating TiCN
Coolant design Internal radial
Coolant supply Intern radial
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D M 5 mm
D M 5 mm
D1 6 mm
D1 6 mm
Design With internal cooling
Design With internal cooling
DIN DIN 2174
Form/Chamfer C, 2.5-thread chamfer
Form/Chamfer C
L 70 mm
L 70 mm
L1 16 mm
L1 16 mm
L2 25 mm
L2 25 mm
Max. thread depth Gewinde 2,5xD
Pitch 0,8 mm
Pitch 0,8 mm
Spiral angle Straight-fluted
Spiral angle Straight-fluted
Standard constructional dimensions DIN DIN 2174
Standard tolerance ISO 2 6HX
Tapping hole Ø 4,65 mm
Tapping hole Ø 4,65 mm
Thread Metric thread
Thread Metric thread
Thread angle 60° thread angle °
Thread angle 60 °
Thread angle 60° thread angle °
Thread depth 2.5xD thread
Threaded hole type For blind-hole and through-hole threads
Threaded hole type Durchgangs-/Sackloch
Tolerance of screw taps ISO 2X (6HX)
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
brass short
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
