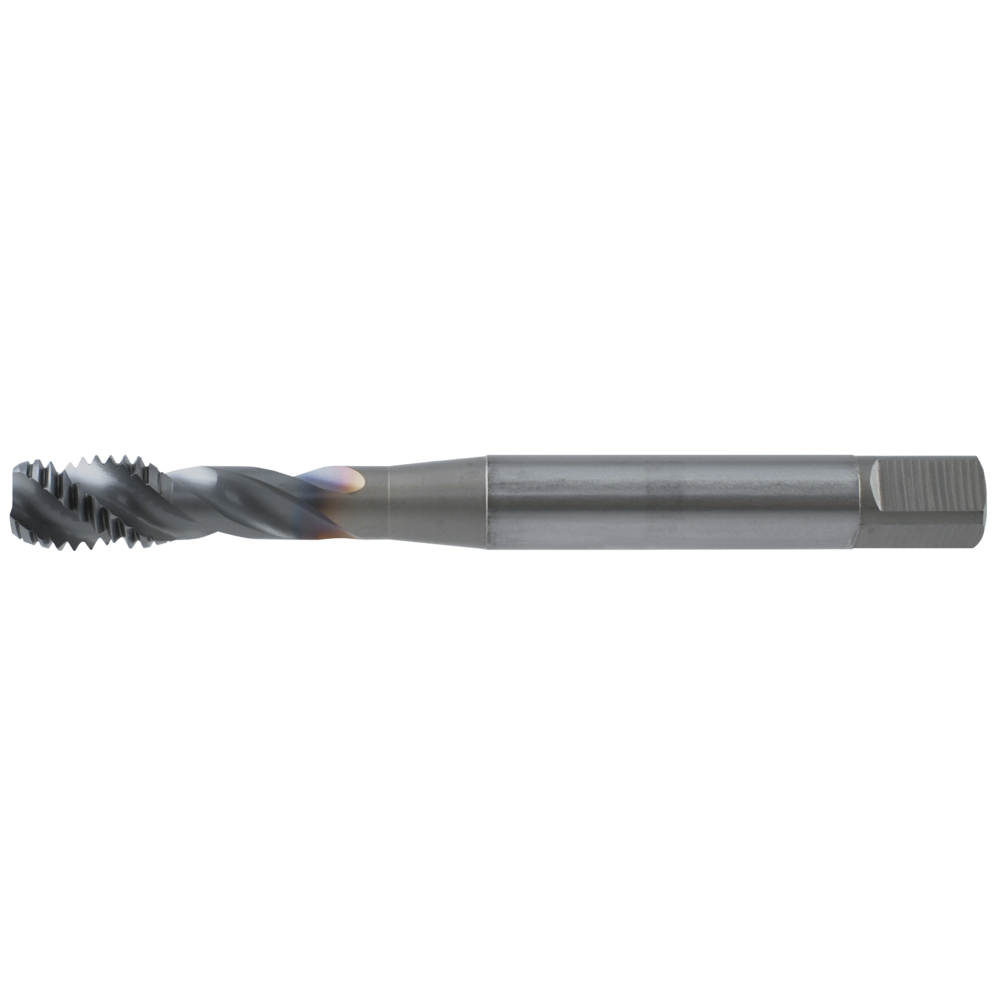

Machine tap HSS-E-PM A-SFT-6HX DIN371E M3 shorter chamfer

Machine tap HSS-E-PM A-SFT-6HX DIN371E M3 shorter chamfer
Machine tap HSS-E-PM A-SFT-6HX DIN371E M3 shorter chamfer Machine tap HSS-E-PM A-SFT-6HX DIN371E M3 shorter chamfer
Price:
28,25 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Machine tap A-SFT, with short chamfer
  • Metric ISO 6HX thread
  • 40° spiral-fluted
  • With short chamfer Form E, 1.5-thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM, TiCN-coated
  • For blind-hole threads

Machine tap A-SFT, with short chamfer
  • Metric ISO 6HX thread
  • 40° spiral-fluted
  • With short chamfer Form E, 1.5-thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM, TiCN-coated
  • For blind-hole threads

Article no./ATORN no.
1335700030
Vendor Article no.
48203138
Packaging unit
1
Catalogue page
KS-0255
Cutting values
SW-0398

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating TiCN
Coating TiCN
Coolant design Without coolant supply
Coolant supply Nein
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
Cutting material HSSE-PM
D M 3 mm
D M 3 mm
D1 3,5 mm
D1 3,5 mm
DIN DIN 371
Form/Chamfer E, 1.5 to 2-thread chamfer
Form/Chamfer E
L 56 mm
L 56 mm
L1 4 mm
L1 4 mm
L2 18 mm
L2 18 mm
Max. thread depth Gewinde 2,5xD
Pitch 0,5 mm
Pitch 0,5 mm
Spiral angle 45° RH helix angle
Standard constructional dimensions DIN DIN 371
Standard tolerance ISO 2 6HX
Tapping hole Ø 2,5 mm
Tapping hole Ø 2,5 mm
Thread ISO metric thread
Thread ISO metric thread
Thread angle 60° thread angle °
Thread angle 60 °
Thread angle 60° thread angle °
Thread depth 2.5xD thread
Threaded hole type for blind-hole threads
Threaded hole type Sackloch
Tolerance of screw taps ISO 2X (6HX)
Twist angle 45° (rechts)

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
titanium alloys
titanium alloys

very suitable
suitable
