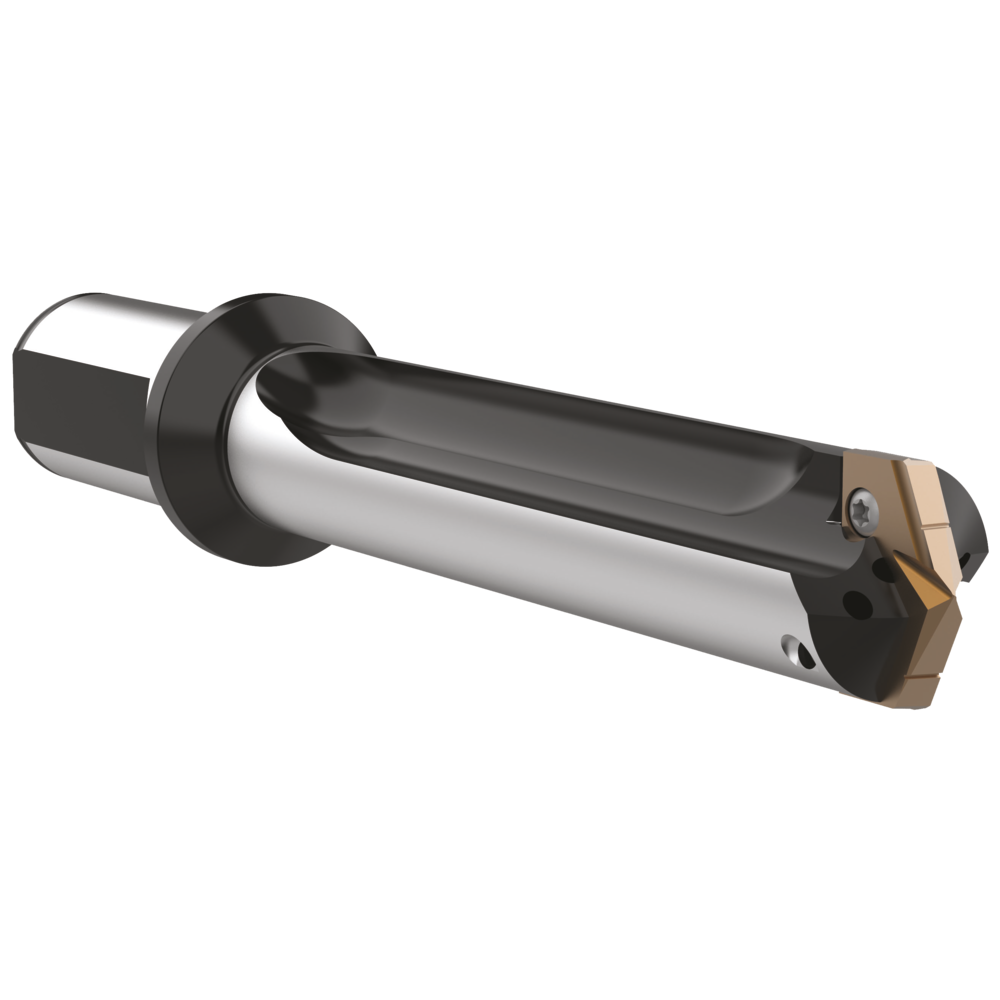

Halter T-A Pro A Serie 3, ø35,72-40,90mm ex.kurz Zylinderschaft 40mm m.Fläche

Halter T-A Pro A Serie 3, ø35,72-40,90mm ex.kurz Zylinderschaft 40mm m.Fläche
Halter T-A Pro A Serie 3, ø35,72-40,90mm ex.kurz Zylinderschaft 40mm m.Fläche Halter T-A Pro A Serie 3, ø35,72-40,90mm ex.kurz Zylinderschaft 40mm m.Fläche Halter T-A Pro A Serie 3, ø35,72-40,90mm ex.kurz Zylinderschaft 40mm m.Fläche
Price:
460,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Series 3 Drilling system T-A Pro™
  • Series 3, diameter range 35.80 - 47.60 mm
  • Drill depths up to 15 x D
  • Supports with innovative coolant bore system for higher flow rate
  • Cutting fluid is fed directly under the chip and creates a “hydraulic wedge”
  • Sturdy support and new chip flute design for safe chip removal
  • 4 geometries for a wide range of applications:
    105980.... AM300 (P), for steel materials
    105986.... AM460 (M), for rust-proof and acid-proof steels
    105982.... TiAlN (K) for cast materials
    105984.... TiCN (NE) for non-ferrous materials

Series 3 holder
Article no./ATORN no.
1050310101
Vendor Article no.
HTA3A01-40FM
Packaging unit
1
Catalogue page

Technical characteristics

Coolant supply Intern axial
Cutting data Cutting angle Information - yes
D 35,72 - 40,90 mm
D1 40 mm
L 160,6 mm
L2 41,1 mm
L3 97,1 mm
L4 68,3 mm
Tool holding device zylindrisch mit Mitnahmefläche DIN 1835 B
Type extra kurz (A)
