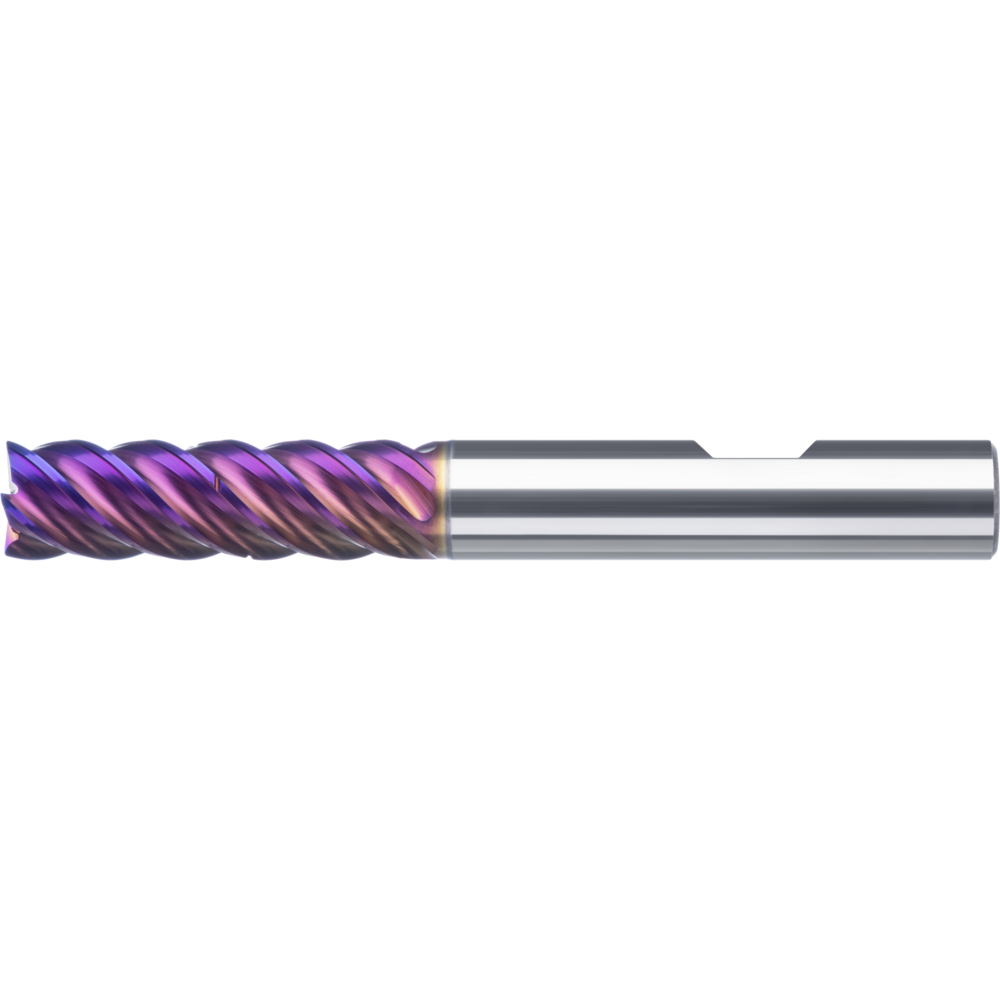

SC end milling cutter TVC 40° 6mm Z=5 with chip separators 3xD HB RockTec PRO

SC end milling cutter TVC 40° 6mm Z=5 with chip separators 3xD HB RockTec PRO
SC end milling cutter TVC 40° 6mm Z=5 with chip separators 3xD HB RockTec PRO SC end milling cutter TVC 40° 6mm Z=5 with chip separators 3xD HB RockTec PRO
Price:
93,10 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Trochoidal RockTec PRO end milling cutter
  • For machining materials from 47 to 65 HRC
  • Milling cutter designed for TVC use
  • With chip breaker
  • Reinforced core
  • Optimised geometry for hard machining
  • Solid carbide ultra-fine grain cutting material
  • State-of-the-art coating technology for reduced wear and extreme hardness
  • Subject to process-related colour variations in the coating.

3 x D with clearance
Article no./ATORN no.
2571900060 / 11264465
Packaging unit
1
Catalogue page
KS-0534
Cutting values
SW-0785

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling TVC
Coating TiAlSiN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 6 mm
D1 6 mm
D3 5,8 mm
Durchmesser max. 20 mm
Durchmesser min. 6 mm
Durchmesser min./max. 6-20 mm
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 3
Feed for side milling fz hardened steel < 60 HRc 0,04 mm/tooth
fitness hartl total 1
Freistellungslänge 25 mm
fz Hart 65 HRC 0,05 mm
Geeignet für Werkstoffgruppe H 1
Geeignet für Werkstoffgruppe K 3
Geeignet für Werkstoffgruppe M 3
Geeignet für Werkstoffgruppe N 3
Geeignet für Werkstoffgruppe P 2
Geeignet für Werkstoffgruppe S 3
Kantenradius 0,1 mm
L 65 mm
L1 19 mm
L2 25 mm
Oberfläche RockTec PRO
R 0,1 mm
Spanwinkel 0 °
Tolerance of cutting edge diameter e8
Tolerance of shank diameter h5
Tool holding device HB parallel shank
Tooth pitch Unequal
Twist angle 40°
Typ H
Z 5 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
