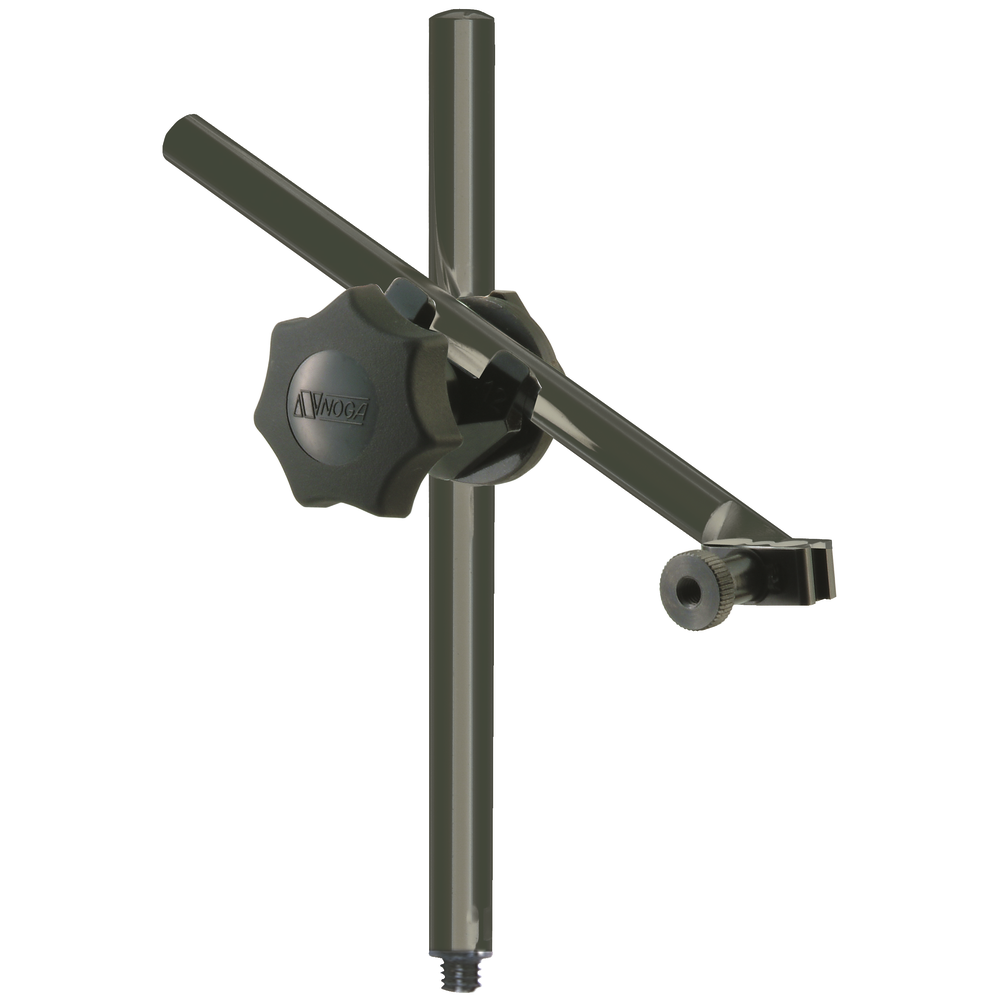

Magnetic measuring stand PH6410, ext. M8 without magnetic base

Magnetic measuring stand PH6410, ext. M8 without magnetic base
Magnetic measuring stand PH6410, ext. M8 without magnetic base
Price:
90,40 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Magnetic measuring stands PH
  • For quick and precise positioning of dial indicators
  • Improved fine adjustment on the magnetic base
  • Strong, switchable magnetic base
  • Universal holding fixture for common dial indicators
  • Robust arm mechanism with three-point system
  • Measuring instrument holding fixture: Ø 8 mm, 6 mm, 3/8 inch and dovetail

Measuring stand w/o base, fine adjustment – measuring instrument holding fixture
  • Measuring instrument holding fixture: Ø 8 mm, 6 mm, 3/8 inch and dovetail

Magnetic measuring stands PH
  • For quick and precise positioning of dial indicators
  • Improved fine adjustment on the magnetic base
  • Strong, switchable magnetic base
  • Universal holding fixture for common dial indicators
  • Robust arm mechanism with three-point system
  • Measuring instrument holding fixture: Ø 8 mm, 6 mm, 3/8 inch and dovetail

Measuring stand w/o base, fine adjustment – measuring instrument holding fixture
  • Measuring instrument holding fixture: Ø 8 mm, 6 mm, 3/8 inch and dovetail

Article no./ATORN no.
5501106401
Vendor Article no.
PH6410
Packaging unit
1
Catalogue page
KS-1465

Technical characteristics

Arm length 185 mm
D M8
D 12 mm
D1 14 mm
D2 12 mm
Height 203 mm
L1 203 mm
L2 185 mm
Magnetic foot thread M 8
model PH 6410
model PH 6410
Pillar diameter 14 mm
