Dial indicators

• Reading 0.01 mm or 0.001 mm
• Housing made of oil-resistant plastic
• Completely without through-holes for improved dirt protection
• Back cover: flat or with mounting lug
• Rotating outer ring for zero setting, clamping by means of clamping screw
• Two adjustable tolerance marks
• Surface-hardened watch glass
• Damped end point
• Robust spindle, Ø 4.8 mm
• New clamping shank for easy clamping across the entire length
• Probe tip thread M2.5
• Clamping shank Ø 8 mm
• Supplied in moulded packaging

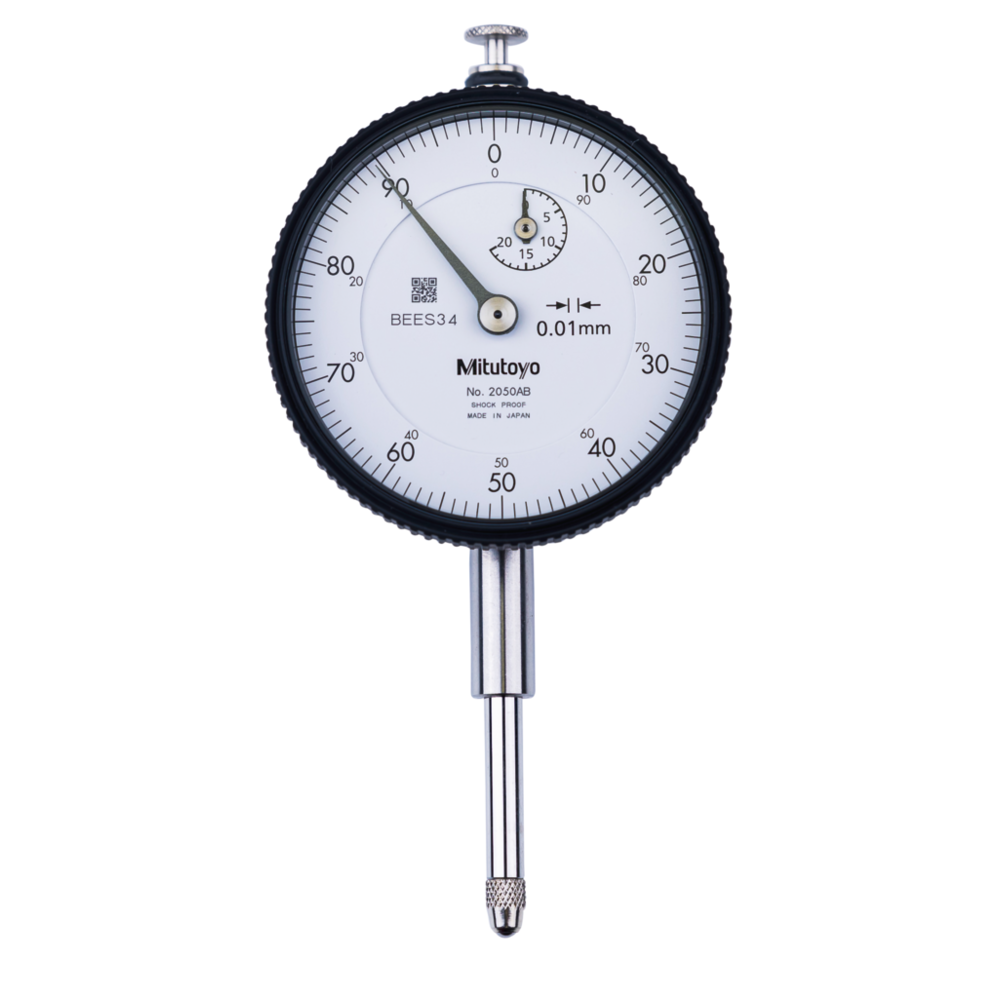

Standard dial indicator external ring Ø 57 mm up to 10 mm MB, 0.01 mm
Dial indicators

• Reading 0.01 mm or 0.001 mm
• Housing made of oil-resistant plastic
• Completely without through-holes for improved dirt protection
• Back cover: flat or with mounting lug
• Rotating external ring for zero setting
• Surface-hardened watch glass, new coating reduces reflections and scratches,
  dirt can be removed easily
• Damped end point
• Robust spindle Ø 4.8 mm
• New clamping shank for easy clamping across the entire length
• Probe tip thread M2.5
• Clamping shank Ø 8 mm
• Supplied in moulded packaging
• Special accessories tolerance mark clips for dial indicators up to housing Ø 40 mm no. 517010 0010, case Ø 57 mm no. 517010 0011

Standard dial indicators external ring Ø 57 mm, 0.01 mm
