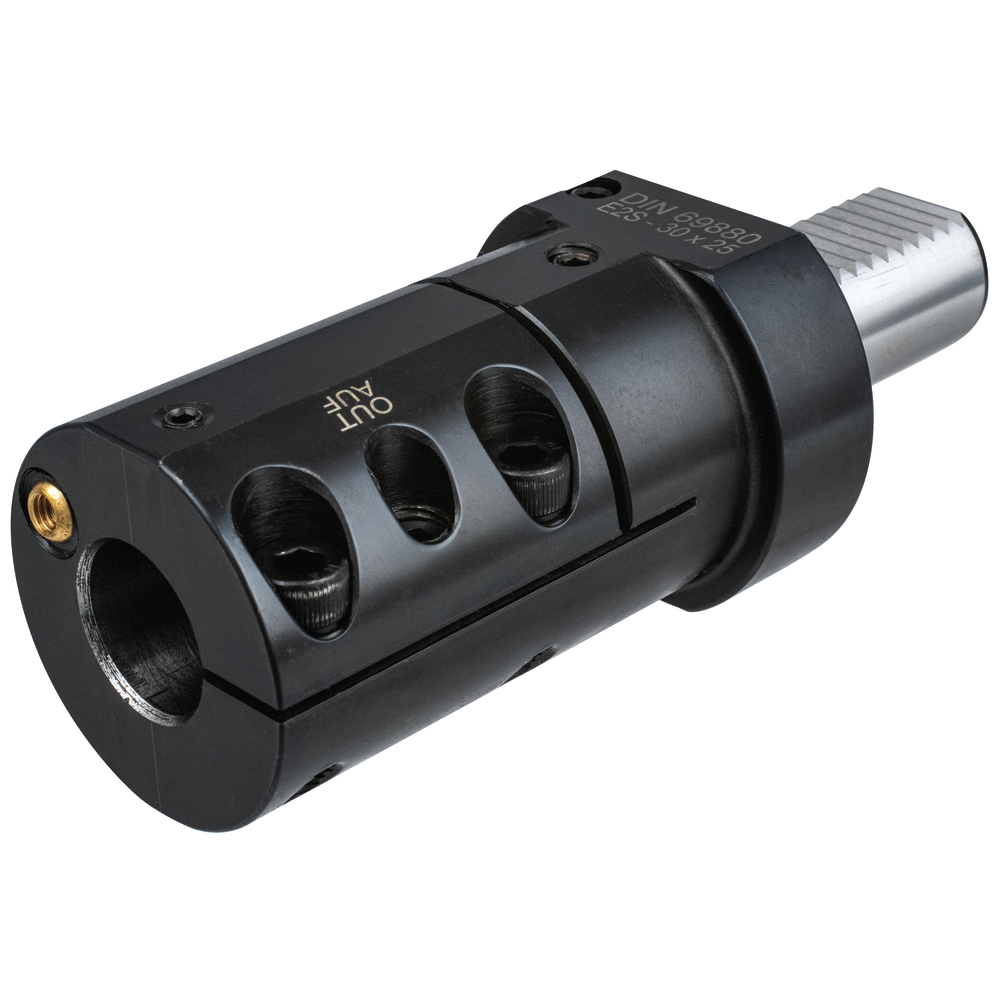

VDI HOLDER DIN 69880 E2S-30 X 10 slotted vibration-dampened / type A

VDI HOLDER DIN 69880 E2S-30 X 10 slotted vibration-dampened / type A
VDI HOLDER DIN 69880 E2S-30 X 10 slotted vibration-dampened / type A
Special offer:
117,75 €
(149,50 € catalogue price / 21% saved)
prices excl. vat plus shipping costs

Stock status
Only 3 pieces left!
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Tool holders for drilling tools
  • Surface hardness 58 - 60 HRC
  • Core strength HV 950 N/mm2
  • Case depth 0.8 mm ± 0.2 mm
  • Fully burnished and precision-ground

Form E2S, for straight shank turning tools, slotted
  • Vibration-damping clamping of solid carbide and vibration-dampened boring bars due to large clamping length
  • No shortening of boring bars necessary
  • Internal and external cooling
  • Easy height adjustment of the indexable insert using EASY-FIX screw for the V-groove and clamping screw for the surface

Tool holders for drilling tools
  • Surface hardness 58 - 60 HRC
  • Core strength HV 950 N/mm2
  • Case depth 0.8 mm ± 0.2 mm
  • Fully burnished and precision-ground

Form E2S, for straight shank turning tools, slotted
  • Vibration-damping clamping of solid carbide and vibration-dampened boring bars due to large clamping length
  • No shortening of boring bars necessary
  • Internal and external cooling
  • Easy height adjustment of the indexable insert using EASY-FIX screw for the V-groove and clamping screw for the surface

Article no./ATORN no.
4461333010
Packaging unit
1
Catalogue page
KS-1148

Technical characteristics

D 46 mm
D 46 mm
D2 68 mm
D2 68 mm
D4 10 mm
D4 10 mm
Height 28 mm
L1 88 mm
L1 88 mm
L2 22 mm
L2 22 mm
L4 65 mm
L4 65 mm
Length, open 40 mm
Length, open 40 mm
model 1
model 1
VDI mount diameter 30
VDI mount diameter 30
