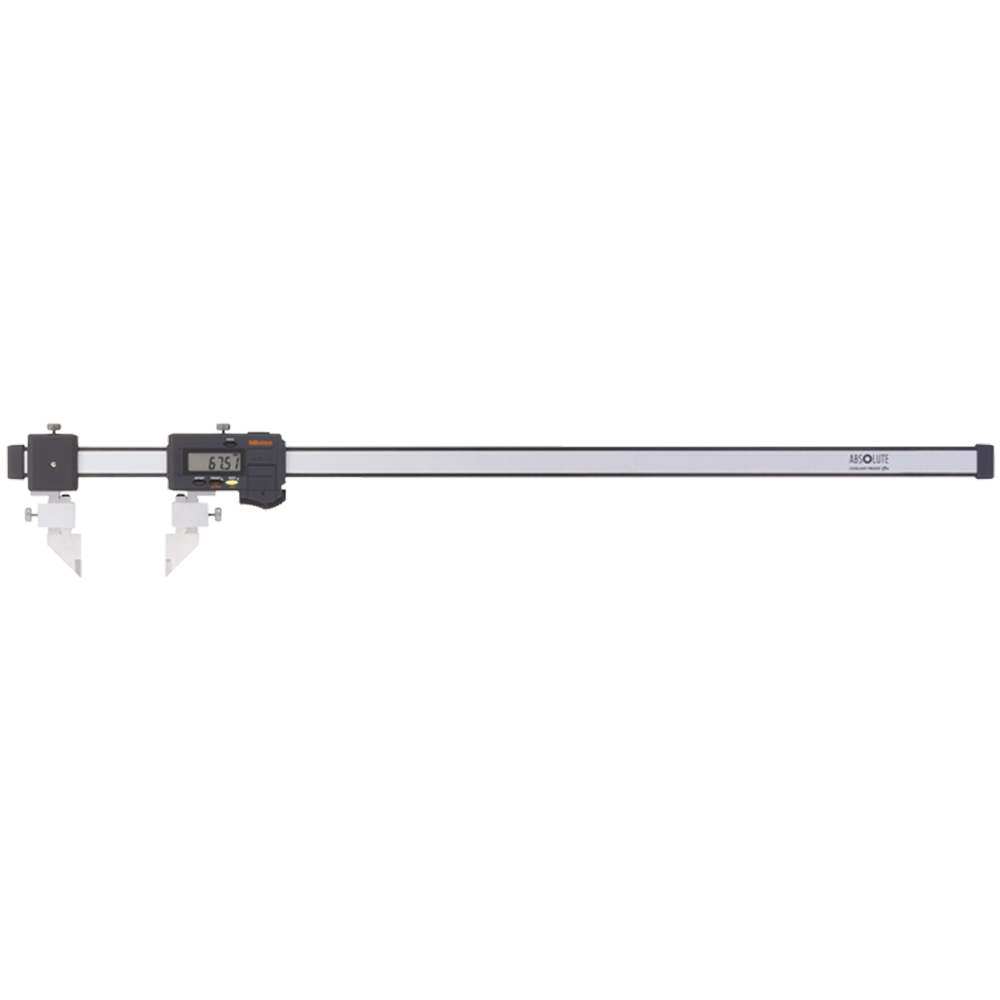

Karbon Werkstatt-Messschieber IP66 dig. inch/mm 0-18',auswechselbar Messschenkel

Karbon Werkstatt-Messschieber IP66 dig. inch/mm 0-18',auswechselbar Messschenkel
Karbon Werkstatt-Messschieber IP66 dig. inch/mm 0-18',auswechselbar Messschenkel
Price:
1.299,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*
Lightweight digital workshop calliper
  • Lightweight carbon design, up to 50 % lighter than conventional workshop callipers
  • Inductive measuring system housed in the measuring bar for added protection
  • Easy to read thanks to 10 mm high digits
  • ABSOLUTE scale
  • Drive slide for constant measuring force
  • Adjustable fixed measuring jaw
  • Battery life approx. 5,000 hours
  • Functions:
    OFFSET for switching between internal and external measurements
    PRESET/ORIGIN for pre-setting/zero point
    ZERO/ABS/HOLD
  • Supplied with SR44 battery, no. 500534 0001
  • Optional accessories: Digimatic cable type A, no. 563100 0001 (1 m), no. 563100 0002 (2 m); USB cable type A-USB, no. 563110 0001
  • Version with long measuring jaws (200 mm) available on request

Lightweight digital workshop calliper
  • Lightweight carbon design, up to 50 % lighter than conventional workshop callipers
  • Inductive measuring system housed in the measuring bar for added protection
  • Easy to read thanks to 10 mm high digits
  • ABSOLUTE scale
  • Drive slide for constant measuring force
  • Adjustable fixed measuring jaw
  • Battery life approx. 5,000 hours
  • Functions:
    OFFSET for switching between internal and external measurements
    PRESET/ORIGIN for pre-setting/zero point
    ZERO/ABS/HOLD
  • Supplied with SR44 battery, no. 500534 0001
  • Optional accessories: Digimatic cable type A, no. 563100 0001 (1 m), no. 563100 0002 (2 m); USB cable type A-USB, no. 563110 0001
  • Version with long measuring jaws (200 mm) available on request

Article no./ATORN no.
5007190018
Vendor Article no.
552-191-10
Packaging unit
1
Catalogue page

Technical characteristics

Data transmission type DIGIMATIC/USB
Digit increment 0,01 mm
DIN Company standard
Error limit 0,04 mm
Error limit 0,04 mm
Functions Absolute function
Included in delivery Sturdy box
Measurement range 0-18 mm
Measurement range 0-18 Zoll
Measurement system ABSOLUTE
Packaging / Shipment Sturdy box
Protection type IP 66
Protection type IP 66
Reading 0.01 mm readings
Weight 0,650 kg
