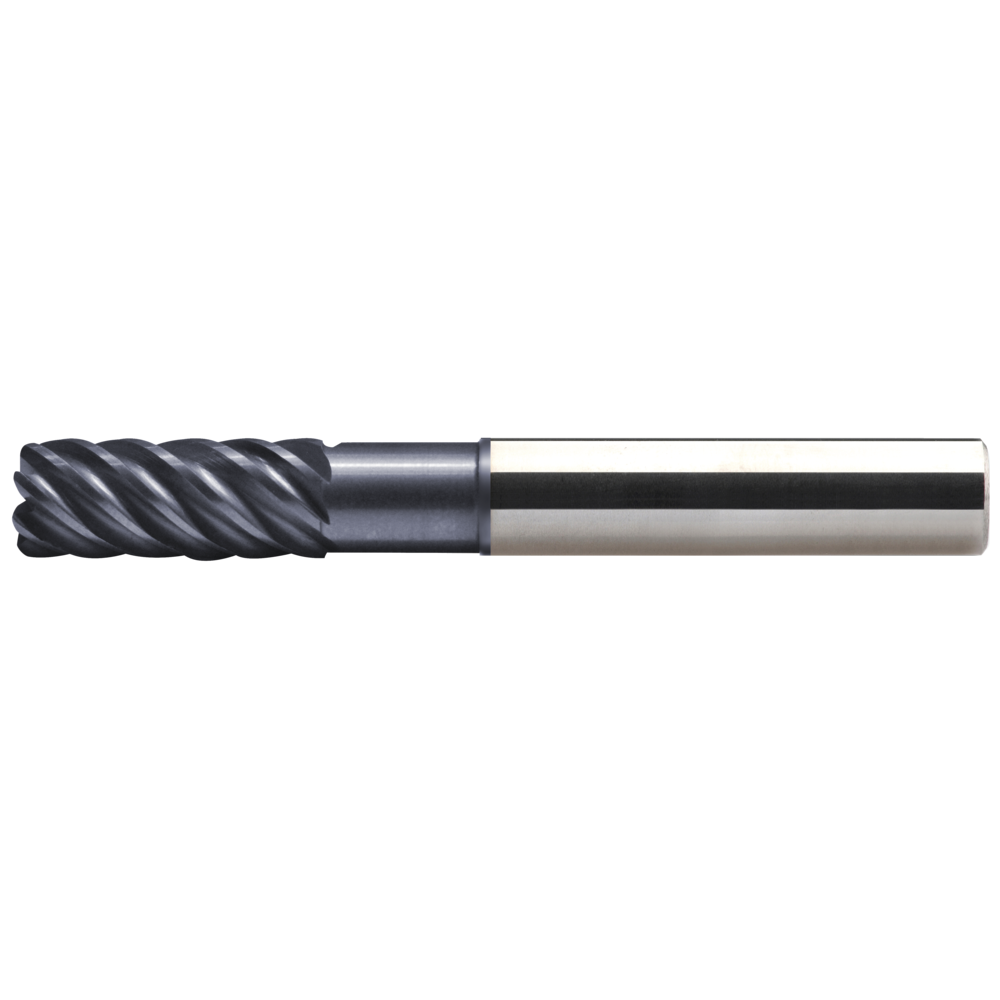

Multi-flute cutter SC 42°/43°/44° 3mm, R0.2, Z=6 RockTec-52

Multi-flute cutter SC 42°/43°/44° 3mm, R0.2, Z=6 RockTec-52
Multi-flute cutter SC 42°/43°/44° 3mm, R0.2, Z=6 RockTec-52 Multi-flute cutter SC 42°/43°/44° 3mm, R0.2, Z=6 RockTec-52
Price:
34,90 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Multi-flute milling cutter, corner radius RockTec 52
  • For machining materials up to 52 HRC
  • With corner radius
  • Solid carbide ultra-fine grain cutting material
  • Rake angle 0 to -3°

Standard
Article no./ATORN no.
2570430001 / 11869308
Packaging unit
1
Catalogue page

Technical characteristics

Application direction milling Lining, ramping and drilling
Coating AlTiN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3 mm
D1 6 mm
D3 2,8 mm
Feed for side milling fz steel < 1400 mm² 0,02 mm/tooth
L 57 mm
L1 8 mm
L2 20 mm
R 0,2 mm
Tolerance of cutting edge diameter e8
Tool holding device HA parallel shank
Twist angle 41°-45° (rechts)
Type H
Z 6 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
