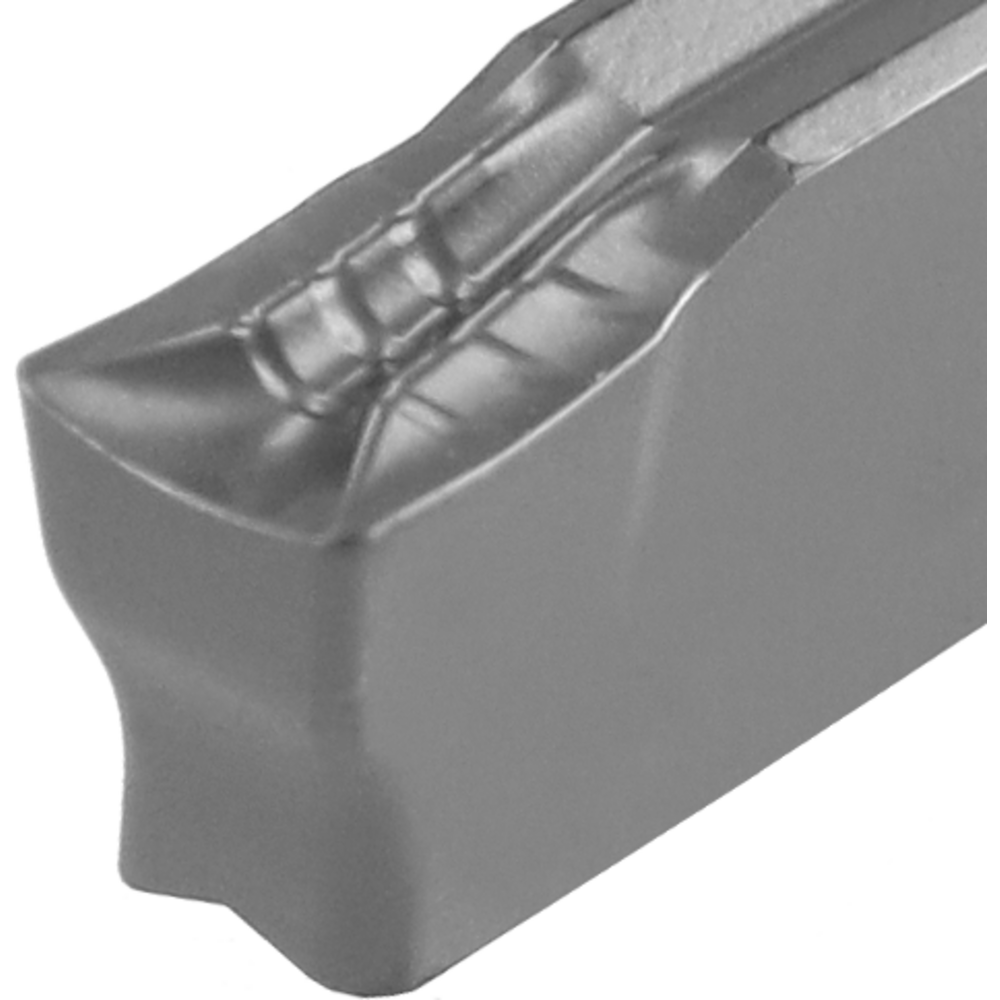

Index. recessing insert ADA 3.00-0.3 N-TR ACP20G (double-sided, radial, neutral)

Index. recessing insert ADA 3.00-0.3 N-TR ACP20G (double-sided, radial, neutral)
Index. recessing insert ADA 3.00-0.3 N-TR ACP20G (double-sided, radial, neutral)
Price:
28,70 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Recessing inserts ADA Axial GROOVE
  • The feed rates must be adjusted to the respective cutting edge width
  • Cutting edge accuracy W ± 0.02mm
  • ADA = double-edged cutting insert
  • Punching depth depends on the selected recessing tool

Chip breaker TR
  • For axial grooving
  • Rotating chip breaker for optimal chip control
  • For all steel and stainless steel materials

Article no./ATORN no.
3880403020 / 12370623
Packaging unit
10
Catalogue page
KS-1005

Technical characteristics

F max. 0,15 mm/rev
F min. 0,06 mm/rev
ISO designation ADA 3.00-0.3 N-TR
ISO H 3
ISO K 1
ISO M 2
ISO N 3
ISO P 1
ISO S 3
Quality ACP20G
R 0,3 mm
t max. 15 mm
Toleranz Einstechbreite ± 0,02 mm
Vc in Edelstahl max. 200 m/min
Vc in Edelstahl min. 50 m/min
Vc in Guss max. 200 m/min
Vc in Guss min. 80 m/min
Vc in Stahl max. 240 m/min
Vc in Stahl min. 50 m/min
W 3 mm
