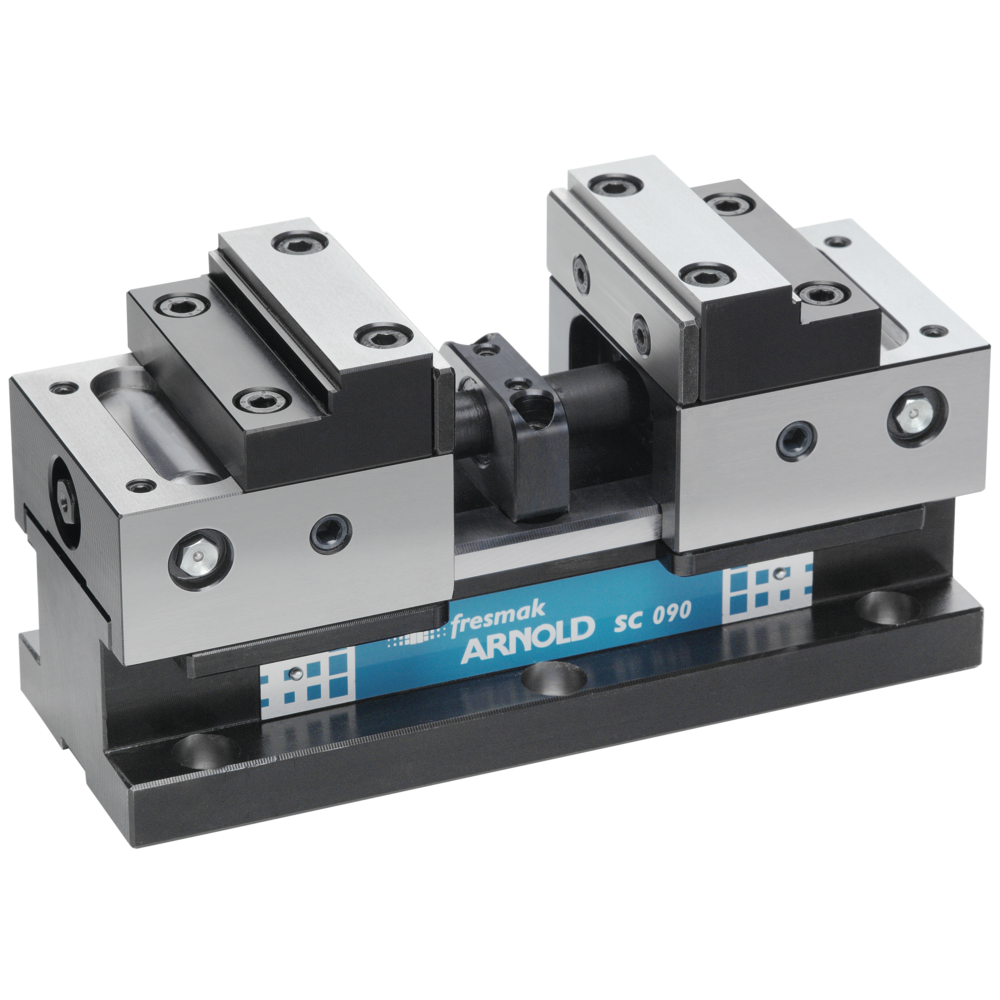

Centring vice BB090mm ARNOLD SC

Centring vice BB090mm ARNOLD SC
Centring vice BB090mm ARNOLD SC Centring vice BB090mm ARNOLD SC
Price:
1.969,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
SC mechanical centring vice
  • Self-centring high-precision clamp
  • Repetition precision 0.01mm
  • Centring accuracy 0.02mm
  • Compact design with external guide
  • Supplied with lever-reversible ratchet and clamping claws
  • suitable torque wrench art.no. 7026020004

Base body with smooth jaws incl. support bars
SC mechanical centring vice
  • Self-centring high-precision clamp
  • Repetition precision 0.01mm
  • Centring accuracy 0.02mm
  • Compact design with external guide
  • Supplied with lever-reversible ratchet and clamping claws
  • suitable torque wrench art.no. 7026020004

Base body with smooth jaws incl. support bars
Article no./ATORN no.
4586620090
Vendor Article no.
050 200 090
Packaging unit
1
Catalogue page
KS-1266

Technical characteristics

A 250 mm
B 115 mm
Base body length 250 mm
C 20H7 mm
Clamp force 20 kN
Clamp force 20 kN
Clamping range 12 - 245 mm
Clamping range 12 - 245
D 100 mm
E 125 mm
G 30 mm
H 5 mm
Height 100 mm
I 6 mm
J 90 mm
Jaw height 30 mm
Jaw width 90 mm
K 130 mm
Total height 130 mm
Weight 14,3 kg
Weight 14,3 kg
Wr. width 12 mm
Wr. width 12 mm
