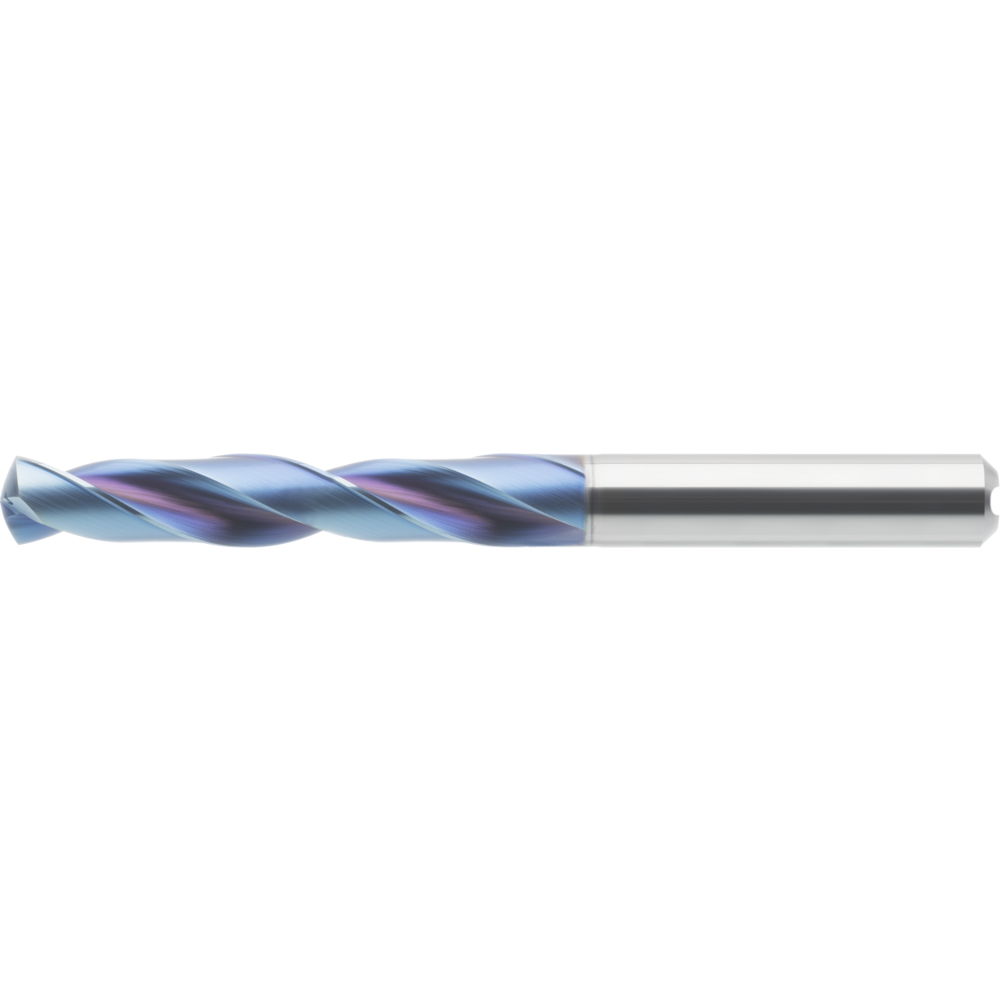

Twist drill SC HARD 5xD 1mm TiAlSiN with IC

Twist drill SC HARD 5xD 1mm TiAlSiN with IC
Twist drill SC HARD 5xD 1mm TiAlSiN with IC Twist drill SC HARD 5xD 1mm TiAlSiN with IC

We charge a material cost surcharge of 6,90% on this product.

Price
95,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Up to 65 HRC

Solid carbide high-performance drill bit HARD 5D
  • for machining drill holes up to 65 HRC
  • Cutting material: SC, TiAlSiN coating
  • reinforced core and special point thinning with sharp chisel edge
  • no internal coolant supply for increased stability
  • also available in 3xD
  • Note: Do not hard drill dry!

With internal cooling
Article no./ATORN no.
1115370010 / 10915993
Packaging unit
1
Catalogue page

Technical characteristics

A-Maß 0,41 mm
Angle of the tip - S 140 °
Coolant supply Internal
Cutting material Solid carbide
D 1,00 mm
D1 4 mm
DIN 6537
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 3
Feed f hardened steel ≤ 65 HRc 0,04 mm/rev
fitness hartl total 2
Halslänge 8,0 mm
L 55 mm
L1 8 mm
Max. drilling depth (D) 5xD
Nutzlänge 5,4 mm
S 140 °
Schneidendurchmesser max. 20,0 mm
Schneidendurchmesser min. 1,0 mm
Schneidendurchmesser min./max. 1,0-20,0 mm
Schnittgeschwindigkeit (Bronze kurz) Eignung 3
Schnittgeschwindigkeit (Bronze lang) Eignung 3
Schnittgeschwindigkeit (Kunststoff ) Eignung 3
Schnittgeschwindigkeit (Messing lang) Eignung 3
Section shape Split point
Surface TiAlSiN
Tolerance of cutting edge diameter h7
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Twist angle 30°
Type HPC HART
Type HPC HARD
Z 2 pc.

Usage characteristics

cast iron GGG
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
