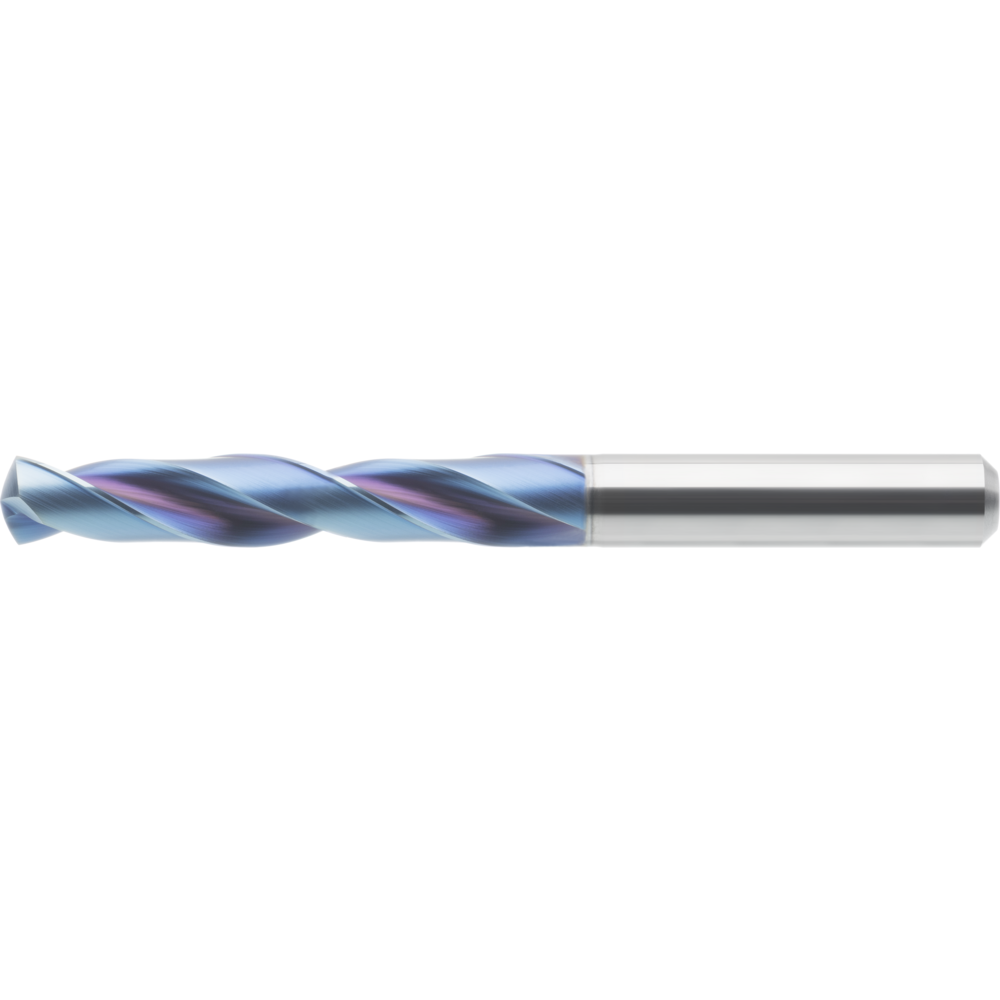

Twist drill SC HARD 5xD 2mm TiAlSiN

Twist drill SC HARD 5xD 2mm TiAlSiN
Twist drill SC HARD 5xD 2mm TiAlSiN Twist drill SC HARD 5xD 2mm TiAlSiN

We charge a material cost surcharge of 6,90% on this product.

Price
74,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Up to 65 HRC

Solid carbide high-performance drill bit HARD 5D
  • for machining drill holes up to 65 HRC
  • Cutting material: SC, TiAlSiN coating
  • reinforced core and special point thinning with sharp chisel edge
  • no internal coolant supply for increased stability
  • also available in 3xD
  • Note: Do not hard drill dry!

Without internal cooling
Article no./ATORN no.
1115360020 / 10915939
Packaging unit
1
Catalogue page
KS-0137
Cutting values
SW-0369

Technical characteristics

A-Maß 0,82 mm
Angle of the tip - S 140 °
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 2,00 mm
D1 4 mm
DIN 6537
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 3
Feed f hardened steel ≤ 65 HRc 0,04 mm/rev
fitness hartl total 1
Halslänge 21,0 mm
L 57 mm
L1 21 mm
Max. drilling depth (D) 5xD
Nutzlänge 14 mm
S 140 °
Schneidendurchmesser max. 18,0 mm
Schneidendurchmesser min. 2,0 mm
Schneidendurchmesser min./max. 2,0-18,0 mm
Schnittgeschwindigkeit (Bronze kurz) Eignung 3
Schnittgeschwindigkeit (Bronze lang) Eignung 3
Schnittgeschwindigkeit (Kunststoff ) Eignung 3
Schnittgeschwindigkeit (Messing lang) Eignung 3
Section shape Split point
Surface TiAlSiN
Tolerance of cutting edge diameter h7
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Twist angle 30°
Type HPC HART
Type HPC HARD
Z 2 pc.

Usage characteristics

cast iron GGG
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
