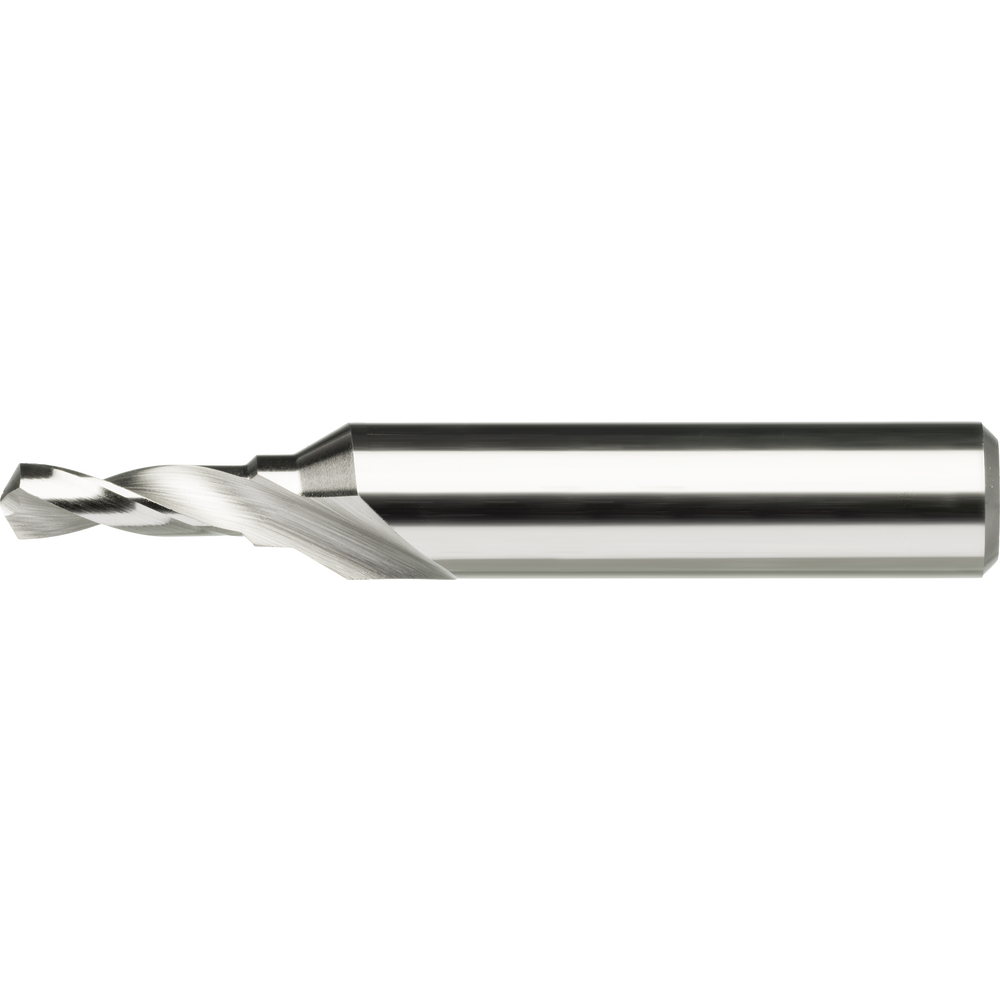

Step centring drill HSSE DIN332-2 60°/90° Form D-FL M4 - 3.3x4.3x8mm

Step centring drill HSSE DIN332-2 60°/90° Form D-FL M4 - 3.3x4.3x8mm
Step centring drill HSSE DIN332-2 60°/90° Form D-FL M4 - 3.3x4.3x8mm Step centring drill HSSE DIN332-2 60°/90° Form D-FL M4 - 3.3x4.3x8mm
Price:
59,90 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Step centring drill
  • for threaded core hole centring characteristics in compliance with Form A, 60°
  • simultaneous, perfectly-aligned placement of core holes, threaded entry bevel 90° and centring 60°
  • blank, profile-ground surface
  • 102215: with additional shank surface

Article no./ATORN no.
1022150040 / 10440194
Packaging unit
1
Catalogue page
KS-0061
Cutting values
SW-0352

Technical characteristics

Anzahl Schneiden 2 pc.
Coating uncoated
Coolant supply External
Countersink angle 60 °
Cutting data Cutting angle Information - yes
Cutting material HSSE
D 3,3 mm
D 4,3 mm
D1 8 mm
Design with surfaces
DIN 332/2
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 3
f Stahl 700 0,04 mm/rev
Feed f steel < 1000 N/mm² 0,05 mm/rev
fitness hartl total 3
for thread M4
Form A
L 63 mm
L1 11 mm
L2 12,6 mm
L3 23 mm
Schnittgeschwindigkeit (Bronze kurz) Eignung 1
Schnittgeschwindigkeit (Bronze kurz) Vc 20,00 m/min
Schnittgeschwindigkeit (Bronze lang) Eignung 2
Schnittgeschwindigkeit (Bronze lang) Vc 15,00 m/min
Schnittgeschwindigkeit (Kunststoff ) Eignung 3
Schnittgeschwindigkeit (Messing lang) Eignung 2
Schnittgeschwindigkeit (Messing lang) Vc 35,00 m/min
Spannutlänge 23 mm
Spitzenwinkel 118 °
Typ N
Vorbohrerdurchmesser 3,3 mm
Vorbohrerlänge 11 mm

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
titanium alloys

very suitable
suitable
