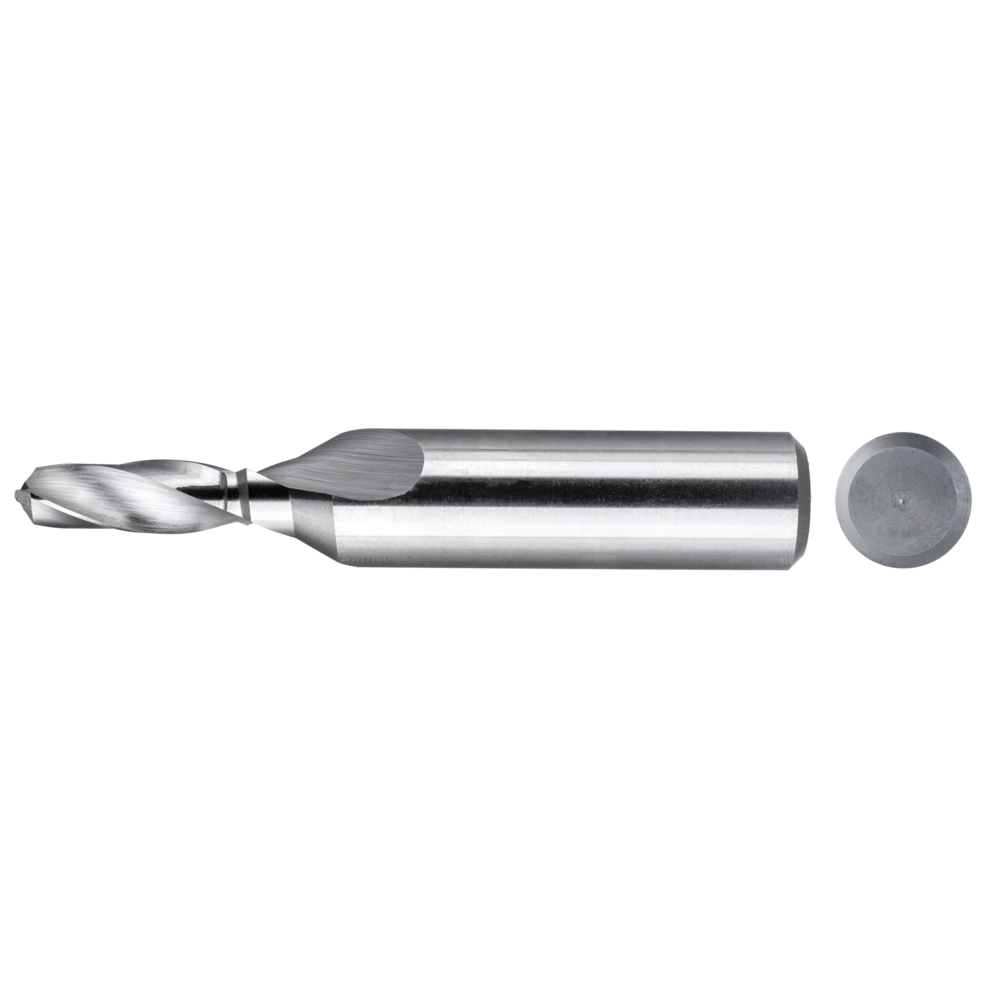

Step centring drill HSSE DIN332-2 60°/90° Form D M3 - 2.5x3.2x6mm

Step centring drill HSSE DIN332-2 60°/90° Form D M3 - 2.5x3.2x6mm
Step centring drill HSSE DIN332-2 60°/90° Form D M3 - 2.5x3.2x6mm Step centring drill HSSE DIN332-2 60°/90° Form D M3 - 2.5x3.2x6mm
Price:
65,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Step centring drill
  • for threaded core hole centring characteristics in compliance with Form A, 60°
  • simultaneous, perfectly-aligned placement of core holes, threaded entry bevel 90° and centring 60°
  • blank, profile-ground surface
  • 102215: with additional shank surface

Article no./ATORN no.
1022140030
Packaging unit
1
Catalogue page
KS-0061
Cutting values
SW-0352

Technical characteristics

Coating uncoated
Coolant supply External
Countersink angle 60 °
Cutting data Cutting angle Information - yes
Cutting material HSSE
D 2,5 mm
D 3,2 mm
D1 6 mm
DIN 332/2
Feed f steel < 1000 N/mm² 0,03 mm/rev
for thread M3
Form A
L 55 mm
L1 8 mm
L2 9 mm
L3 18 mm

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
titanium alloys

very suitable
suitable
